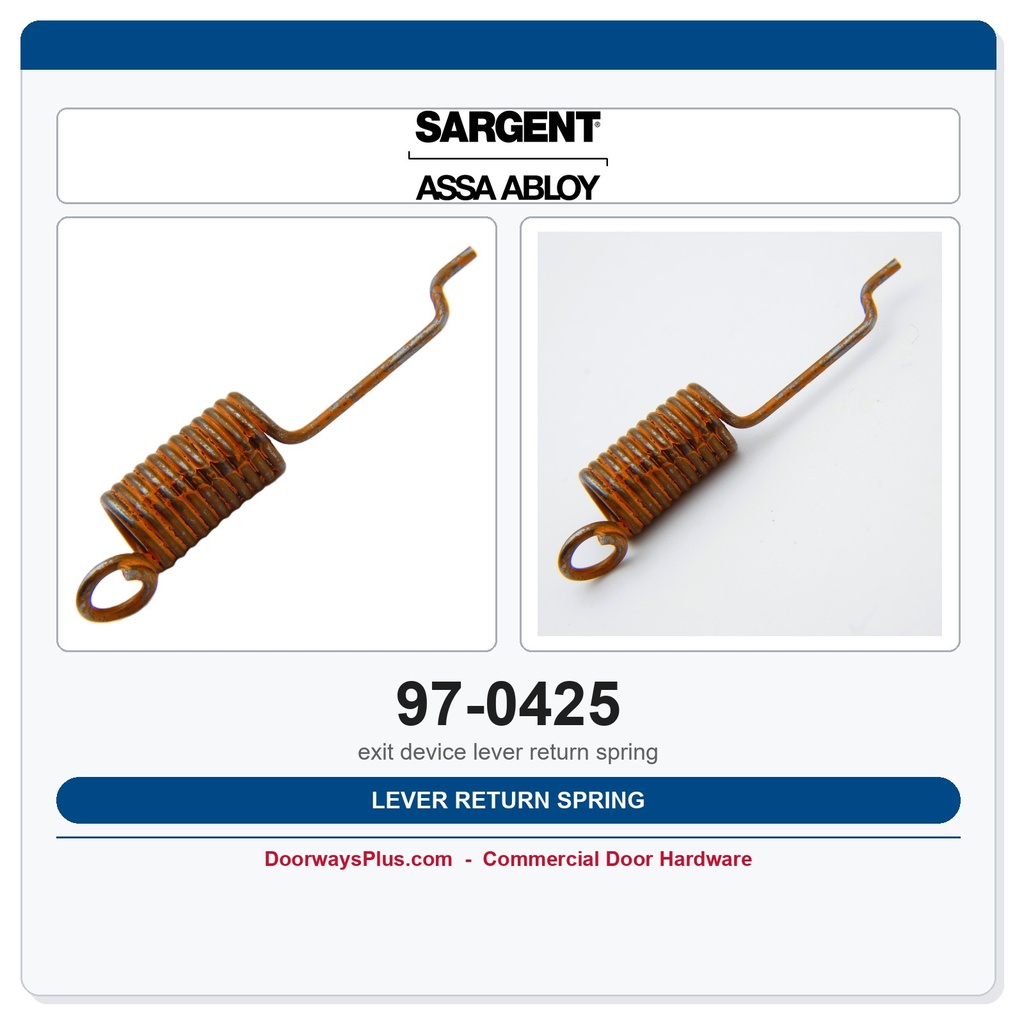

Sargent 97-0425 Lever Return Spring (Hub Spring) | For 700 Series ET Trim
Technically this is the hub spring, commonly called the lever return spring; it is listed as the Hub Spring on the Sargent 700 Series parts diagram.

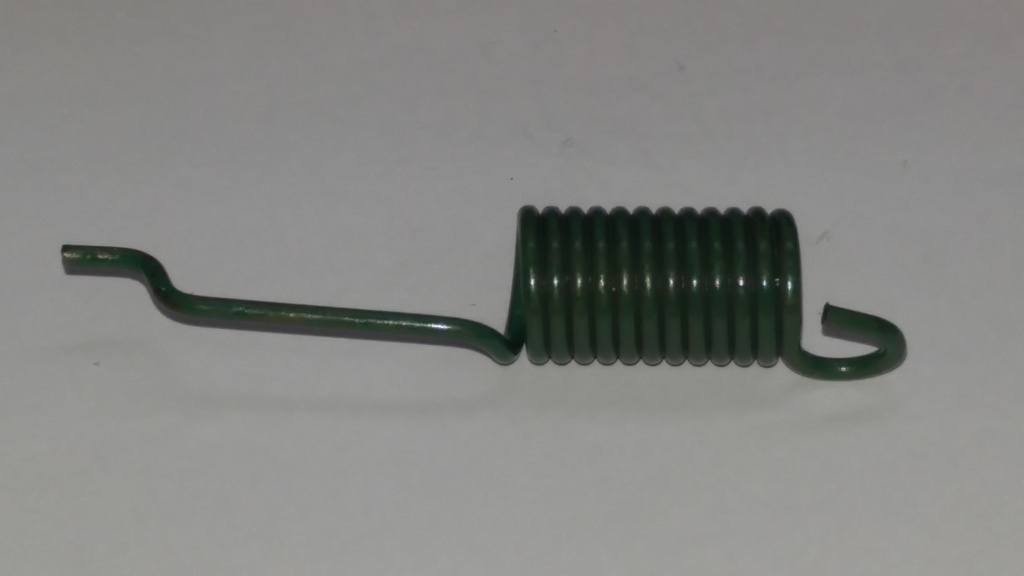

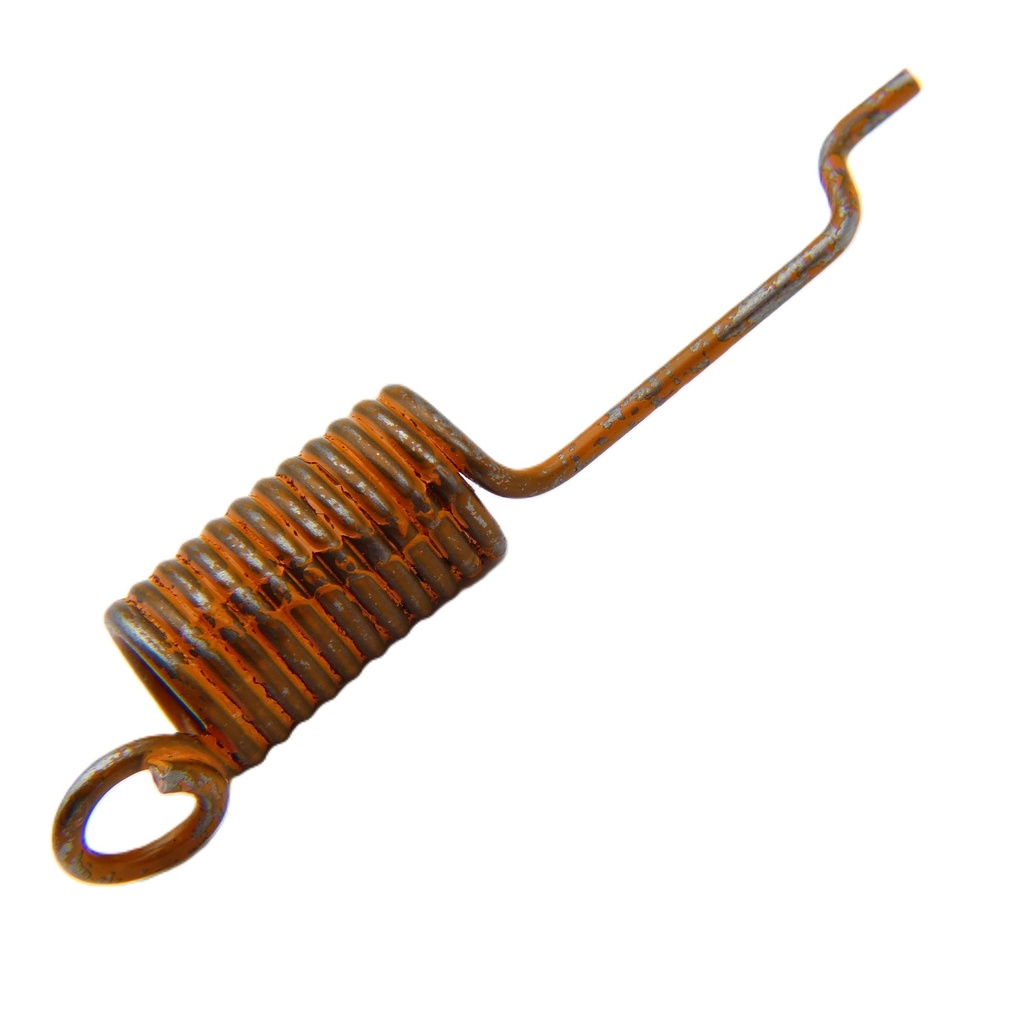

The Sargent 97-0425 is a genuine OEM replacement part engineered for the Sargent 700 Series ET (Extra Heavy Duty) Outside Trim. This high-tension spring is responsible for returning the exterior lever to the horizontal position after each use. While historically identified by a Green color coating, newer factory production features an Orange coating—both versions are functionally identical and provide the same industrial-grade performance.
Institutional Grade Features & Benefits
- Corrects Lever Sag: Eliminates "drooping" handles by restoring the factory-original upward tension to the outside trim.
- Direct Trim Compatibility: Specifically designed for Sargent 713-8 and 715-8 ET Trim used in conjunction with the 80 Series exit devices.
- High-Cycle Engineering: Built to endure the rigorous demands of schools, hospitals, and high-traffic commercial corridors.
- Visual Color Coding: The Green/Orange coating allows maintenance teams to quickly identify this as the correct heavy-duty spring for ET series hubs.
- OEM Precision: Identified as Part #19 on the Sargent 700 Series exploded view, ensuring 100% mechanical alignment within the hub assembly.
Technical Specifications
- Model Number: 97-0425
- Part Type: Lever Return Spring (Hub Spring)
- Finish/Color: Green or Orange (Current OEM standard)
- Trim Compatibility: Sargent 700 Series ET (713-8, 715-8)
- Exit Device Compatibility: Sargent 80 Series
- Technical Reference: Part #19 on official ET trim diagrams
| Brand | Sargent |
| Series | Sargent - 700 ET Series, Sargent - 80 Series |
| Part Type | Spring |
Sargent 700 ET Series Parts Diagrams.pdf
