Sargent 68-6047 Chassis Assembly – 80 Series Exit Device Replacement Part (RHRB)

The Sargent 68-6047 is a chassis assembly engineered as a core operating component for the Sargent 80 Series exit device. Specifically compatible with the Sargent 8710 exit device in a right-hand reverse bevel (RHRB) configuration, this OEM-grade part serves as the mechanical heart of the push-rail egress system. When the push bar is depressed, the push rail transfers that force directly to this chassis assembly, which actuates latch retraction to allow controlled egress. Replacing a worn or damaged chassis restores the exit device to full, code-compliant operation without requiring a complete device replacement.

Institutional Grade Features & Benefits

• OEM Sargent Fit: Manufactured to Sargent's exact tolerances, ensuring seamless drop-in compatibility with the 8710 exit device and consistent, reliable latch retraction performance.
• Core Mechanical Function: The chassis assembly is the primary force-transfer component — it receives push-rail input and converts it into precise latch retraction, maintaining smooth, dependable egress every cycle.
• Handing-Specific Design: Configured for RHRB (Right Hand Reverse Bevel) doors, ensuring correct geometry and operation for that specific door application.
• 80 Series Compatibility: Designed exclusively for the Sargent 80 Series platform, the most widely specified Sargent exit device line in commercial and institutional construction.
• Cost-Effective Service Solution: Replacing the chassis assembly extends the service life of an existing 8710 exit device, avoiding the higher cost of full device replacement while restoring like-new function.
• Commercial & Institutional Grade: Built to withstand the high-cycle demands of schools, hospitals, government facilities, retail centers, and other high-traffic egress applications.

Applications

The Sargent 68-6047 chassis assembly is the correct replacement part for facility managers, door hardware distributors, and commercial locksmiths servicing Sargent 8710 exit devices on RHRB doors. Typical applications include commercial office buildings, educational institutions, healthcare facilities, and any high-traffic egress opening currently equipped with the Sargent 80 Series exit device platform.

Technical Details

Door Handing Reference

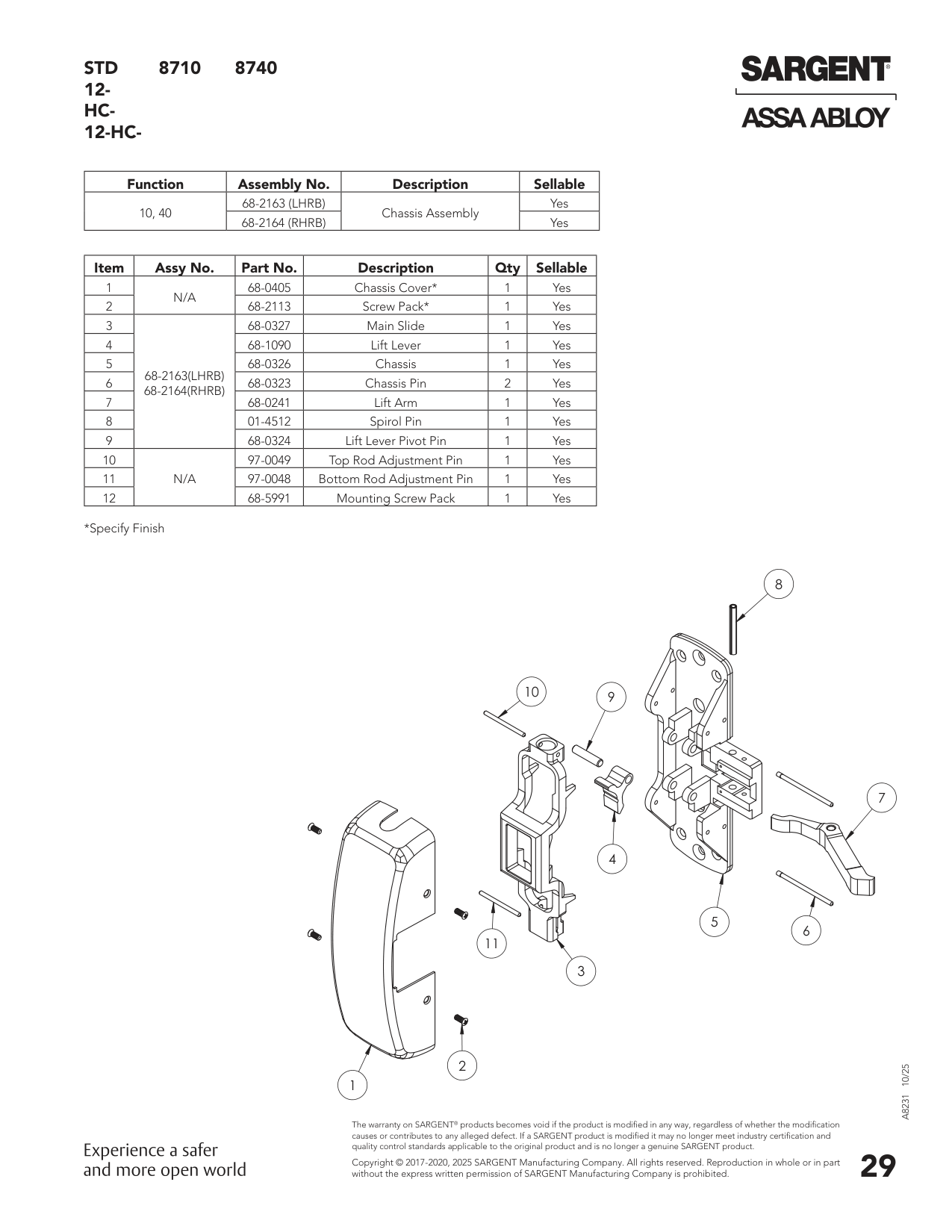

Parts List Illustration
