Sargent 68-6046 Chassis Assembly for 8710 Exit Device — HC4, LHRB
The Sargent 68-6046 is an OEM Chassis Assembly engineered for the Sargent 80 Series exit device, specifically compatible with the 8710 model. Handing: LHRB (Left Hand Reverse Bevel). This core operating component serves as the mechanical heart of the exit device: when the push bar is depressed, the push rail transfers force directly to this chassis, which retracts the latch bolt and permits controlled egress. Sourcing a genuine Sargent OEM chassis assembly ensures precise fit, proper latch retraction performance, and long-term reliability consistent with the original device specification.
Institutional Grade Features & Benefits
- OEM Sargent Fit: Designed and manufactured to original Sargent factory specifications, ensuring drop-in compatibility with the 8710 exit device without field modification.
- Core Egress Mechanism: Directly interfaces with the push rail to retract the latch upon actuation — the fundamental operating assembly for reliable, code-compliant egress.
- 80 Series Platform Compatibility: Purpose-built for the Sargent 80 Series exit device family, maintaining the dimensional and mechanical integrity of the original installation.
- Correct Handing: Supplied in LHRB configuration, ensuring proper orientation and latch engagement for left hand reverse bevel door applications.
- Serviceability & Longevity: Replacing a worn or damaged chassis assembly with a genuine OEM part restores full exit device function and extends the service life of the installed unit.
- Reduced Downtime: A direct replacement chassis minimizes labor time versus full device replacement, making it the preferred solution for maintenance technicians and facility managers.
Technical Specifications
- Brand: Sargent
- Part Number: 68-6046
- Part Type: Chassis Assembly
- Product Class: Exit Device Component
- Series Compatibility: Sargent 80 Series
- Compatible Exit Device Model: 8710
- Handing: LHRB (Left Hand Reverse Bevel)
- Trim Code: HC4
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-6046 |
| Part Type | Chassis Assembly |
| Trim Code | HC4 |
| Handing | LHRB (Left Hand Reverse Bevel) |
| Series Compatibility | Sargent 80 Series |
| Compatible Exit Device Model | 8710 |
| Product Class | Exit Device Component |
Door Handing Reference

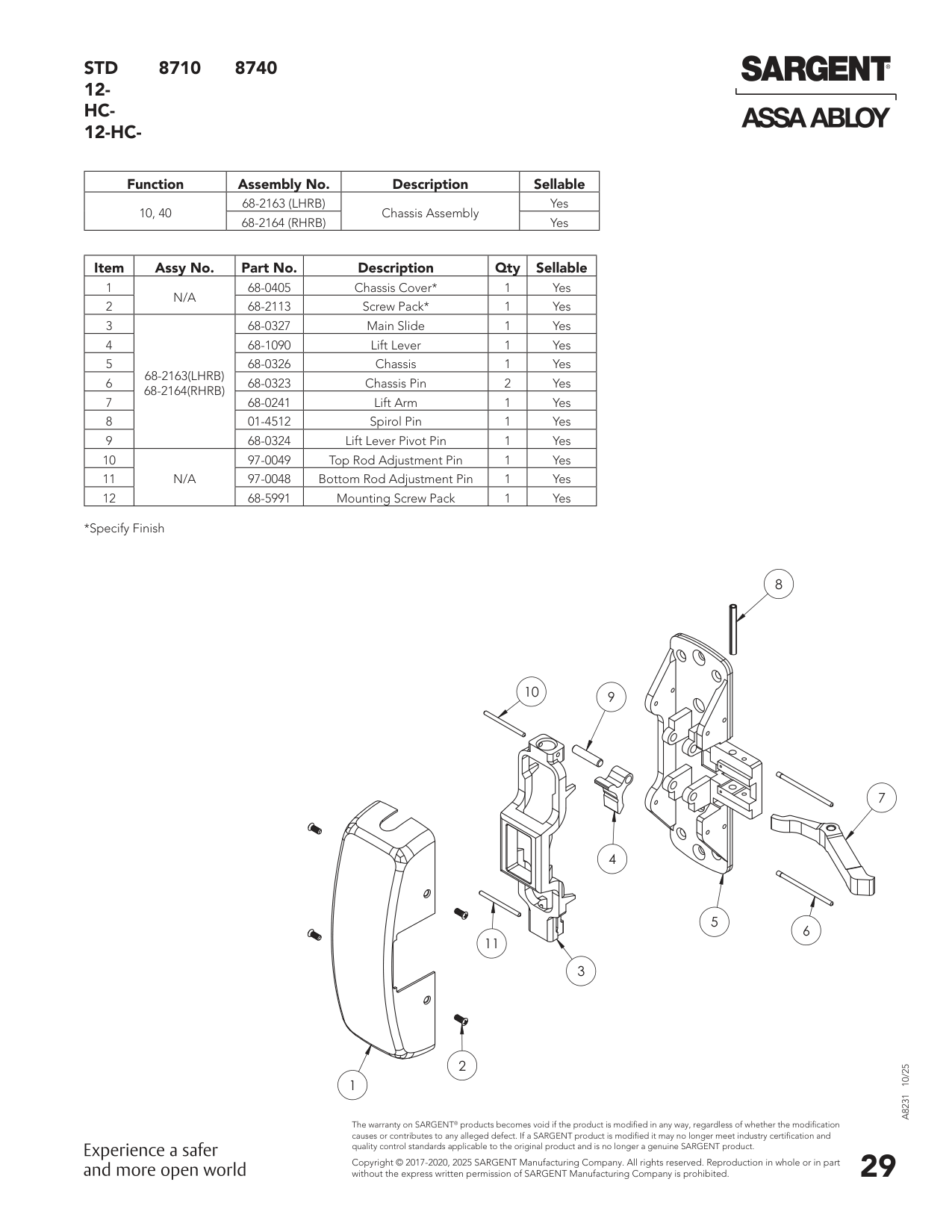

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
