Sargent 68-2459 Chassis Pack – 80 Series Exit Device Chassis Assembly (RHRB)

The Sargent 68-2459 is an OEM Chassis Assembly — also referred to as a chassis pack — engineered as the core operating component for the Sargent 80 Series exit device. When the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch to allow safe, code-compliant egress. This replacement chassis is handed RHRB (Right Hand Reverse Bevel) and is a fire-rated compatible part, designed to maintain the performance and integrity of the Sargent 12-8728 fire-rated exit device.

Institutional Grade Features & Benefits

• OEM Sargent Component: A genuine Sargent replacement chassis pack ensuring fit, function, and reliability consistent with original factory specifications for the 80 Series exit device platform.
• Core Egress Mechanism: Serves as the primary mechanical heart of the exit device — converting push-bar force into latch retraction for smooth, dependable egress operation.
• Fire-Rated Device Compatibility: Specifically engineered for use in the Sargent 12-8728 fire-rated exit device, supporting installations where fire-label compliance is required.
• Correct Handing – RHRB: Manufactured for Right Hand Reverse Bevel door applications; a handing diagram accompanies the listing for reference.
• Targeted Replacement Solution: Allows facilities managers, door hardware professionals, and contractors to restore a malfunctioning 80 Series exit device to full operation without replacing the entire device — reducing downtime and replacement cost.
• 80 Series Platform Fit: Designed specifically within the Sargent 80 Series exit device family, ensuring dimensional and mechanical compatibility with that product line.

Applications

• Commercial and institutional exit door hardware repair and maintenance
• Fire-rated door assemblies requiring compliant exit device operation
• Schools, hospitals, government buildings, and other high-traffic facilities using Sargent 80 Series exit devices
• Replacement of worn, damaged, or failed chassis components in existing 80 Series installations

Technical Details

Door Handing Reference

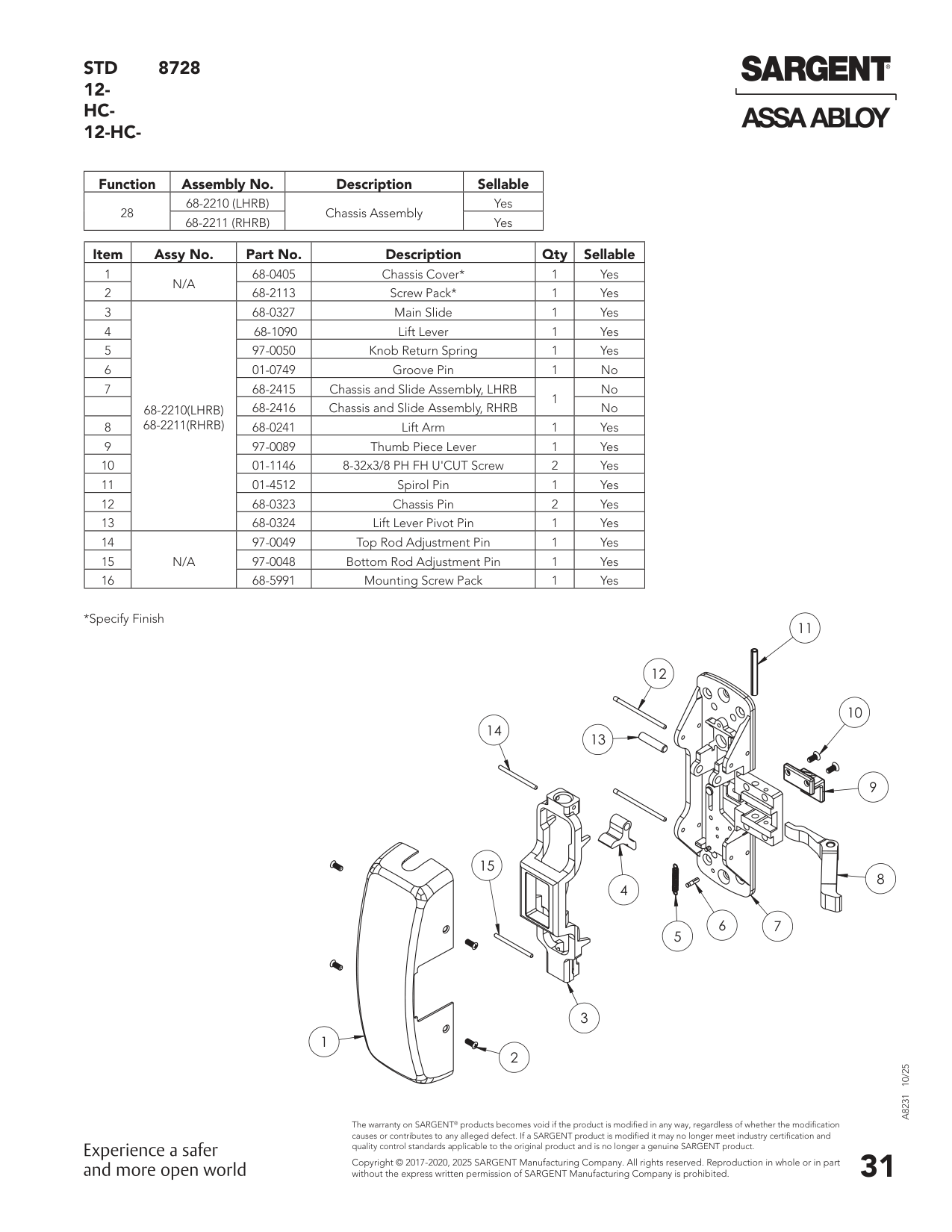

Parts List Illustration
