Sargent 68-5881 Chassis Assembly for 80 Series Exit Devices

The Sargent 68-5881 is a genuine OEM chassis assembly engineered as the core operating component for Sargent 80 Series exit devices. When the push bar is depressed, the push rail transfers that mechanical force directly to this chassis, which retracts the latch and enables immediate, code-compliant egress. This part is the heart of the 80 Series panic hardware mechanism — keeping the exit device functioning reliably, cycle after cycle. It is also commonly searched as a Sargent exit device chassis, 80 Series push bar chassis, or Sargent 68-5881 replacement part.

Institutional Grade Features & Benefits

• Genuine OEM Sargent Component: Factory-original chassis assembly ensures exact-fit replacement with no modification required to the exit device trim or rail.
• Core Latch-Retraction Mechanism: Transfers push-bar force through the push rail to retract the latch — restoring proper egress function on a worn or failed 80 Series device.
• Targeted 80 Series Compatibility: Precision-matched to the Sargent 80 Series exit device platform, covering the AL-8500 (Alarmed) and GL-8500 (Guarded Latch) model designations.
• Minimizes Downtime: A direct-replacement chassis assembly allows facility managers, locksmiths, and door hardware technicians to restore full exit device operation without replacing the entire unit.
• Life-Safety Reliability: Exit device chassis integrity is critical to building egress compliance; using a genuine Sargent replacement part maintains the performance standards the original device was designed to meet.
• Ideal for Repair & Maintenance Programs: Suited for schools, hospitals, commercial buildings, and institutional facilities that maintain Sargent 80 Series exit hardware as part of ongoing door maintenance programs.

Compatible Exit Device Models

The Sargent 68-5881 Chassis Assembly is compatible with the following Sargent 80 Series exit device models:

• AL-8500 — Alarmed exit device
• GL-8500 — Guarded Latch exit device

Technical Details

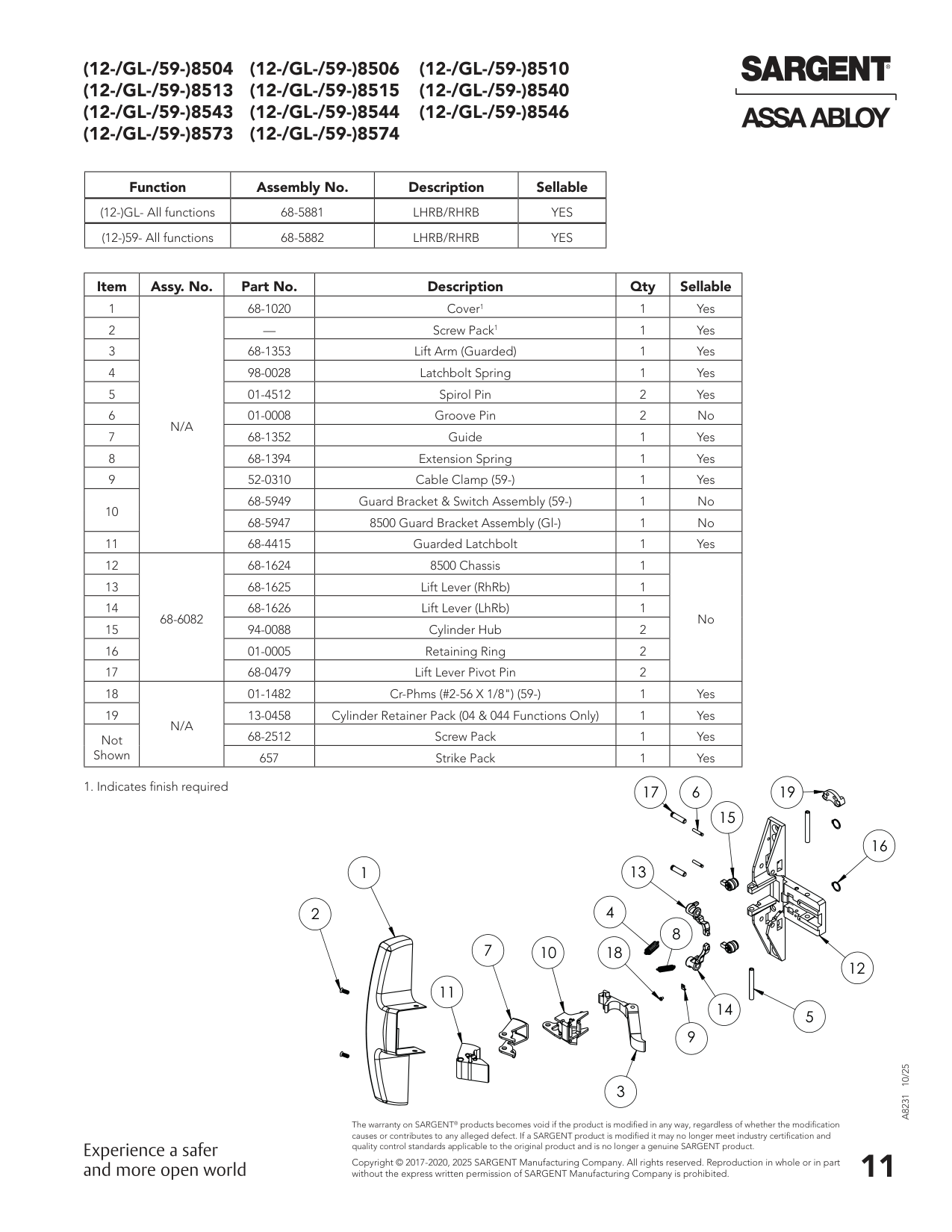

Parts List Illustration
