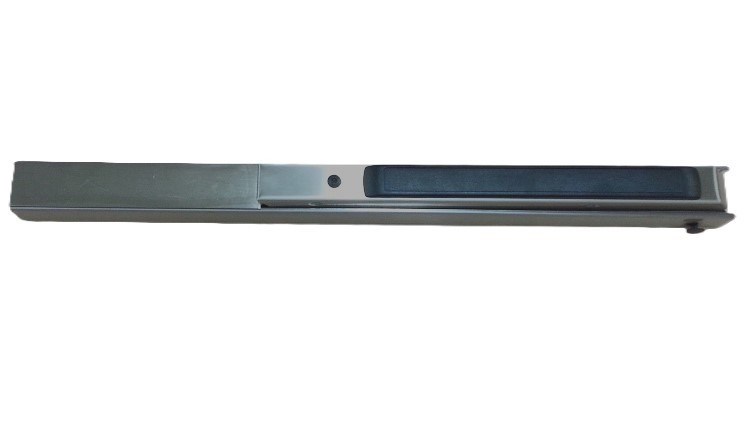

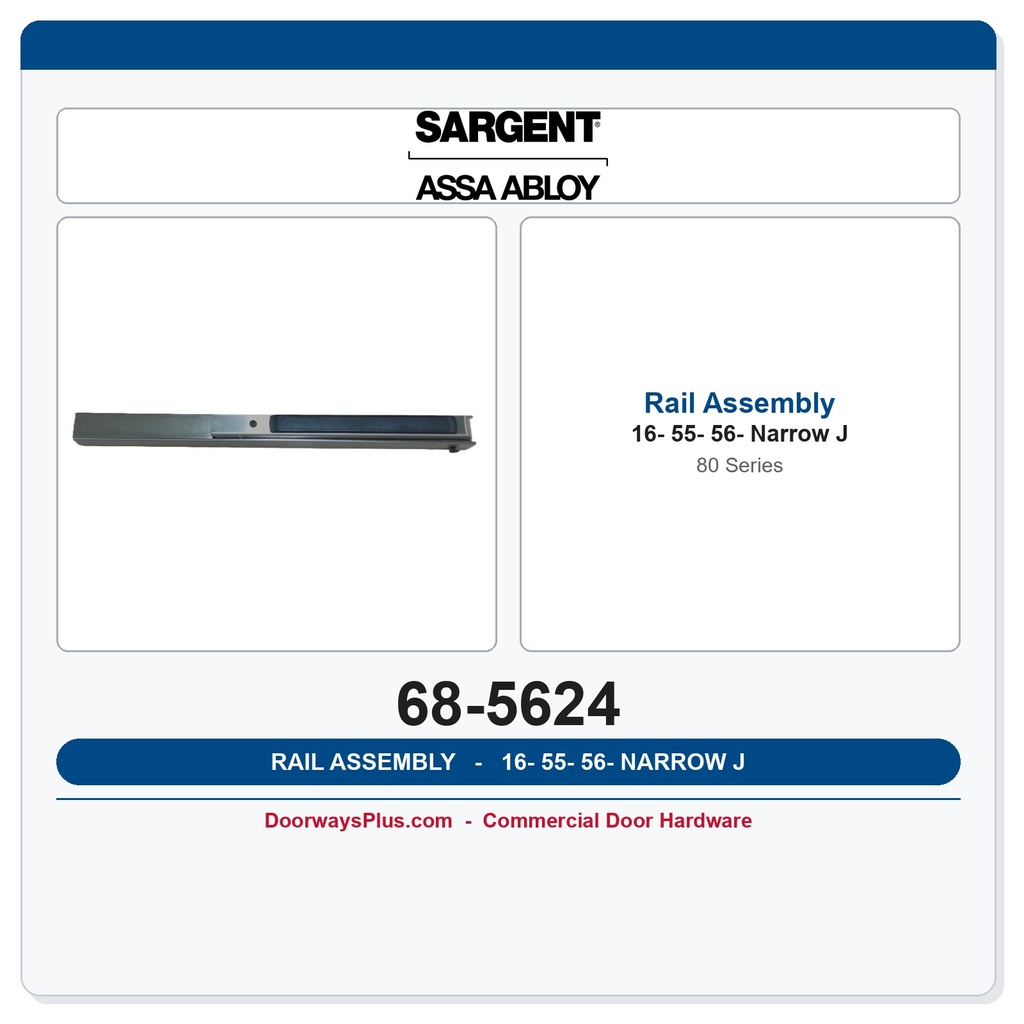

Sargent 68-5624 Narrow Rail Assembly for 80 Series Exit Devices — Size J (37" to 42" Doors)
The Sargent 68-5624 is a genuine OEM Narrow Rail Assembly designed as a direct replacement component for Sargent 80 Series exit devices. Also referenced by its full part designation 68-5624 16-55-56- J, this assembly is engineered to factory specifications and ensures proper fit, finish, and function when restoring or servicing an 80 Series panic hardware installation. Rail stock size code J indicates compatibility with doors ranging from 37 inches to 42 inches in width, making it suitable for standard and slightly wider single-door applications commonly found in commercial and institutional buildings.
Institutional Grade Features & Benefits
- Genuine OEM Component: Manufactured by Sargent to the exact tolerances and standards of the original 80 Series exit device, ensuring reliable performance and a proper drop-in replacement experience.
- Correct Rail Size — J Stock (37" to 42"): The size J rail stock designation confirms this assembly fits door widths of 37 inches through 42 inches, eliminating guesswork when ordering replacement parts for wider commercial openings.
- 80 Series Compatibility: Engineered exclusively for the Sargent 80 Series exit device platform, maintaining the structural and mechanical integrity of the original hardware.
- Narrow Rail Design: The narrow rail profile accommodates door configurations where frame space or glass lite placement requires a lower-profile top rail, a common requirement in commercial storefront and aluminum-frame door applications.
- Restores Device Integrity: Replacing a worn, damaged, or missing rail assembly with this genuine Sargent part returns the exit device to its intended operational condition, supporting code-compliant egress hardware performance.
Technical Specifications
- Model / Part Number: 68-5624 (full designation: 68-5624 16-55-56- J)
- Part Type: Narrow Rail Assembly
- Brand: Sargent (Genuine OEM)
- Series Compatibility: Sargent 80 Series Exit Devices
- Product Class: Exit Device Component / Replacement Assembly
- Rail Stock Size Code: J — fits door widths from 37" to 42"
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-5624 |
| Full Part Designation | 68-5624 16-55-56- J |
| Part Type | Narrow Rail Assembly |
| OEM / Aftermarket | Genuine OEM |
| Series Compatibility | Sargent 80 Series Exit Devices |
| Rail Stock Size Code | J |
| Door Width Range | 37" to 42" |
| Product Class | Exit Device |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
