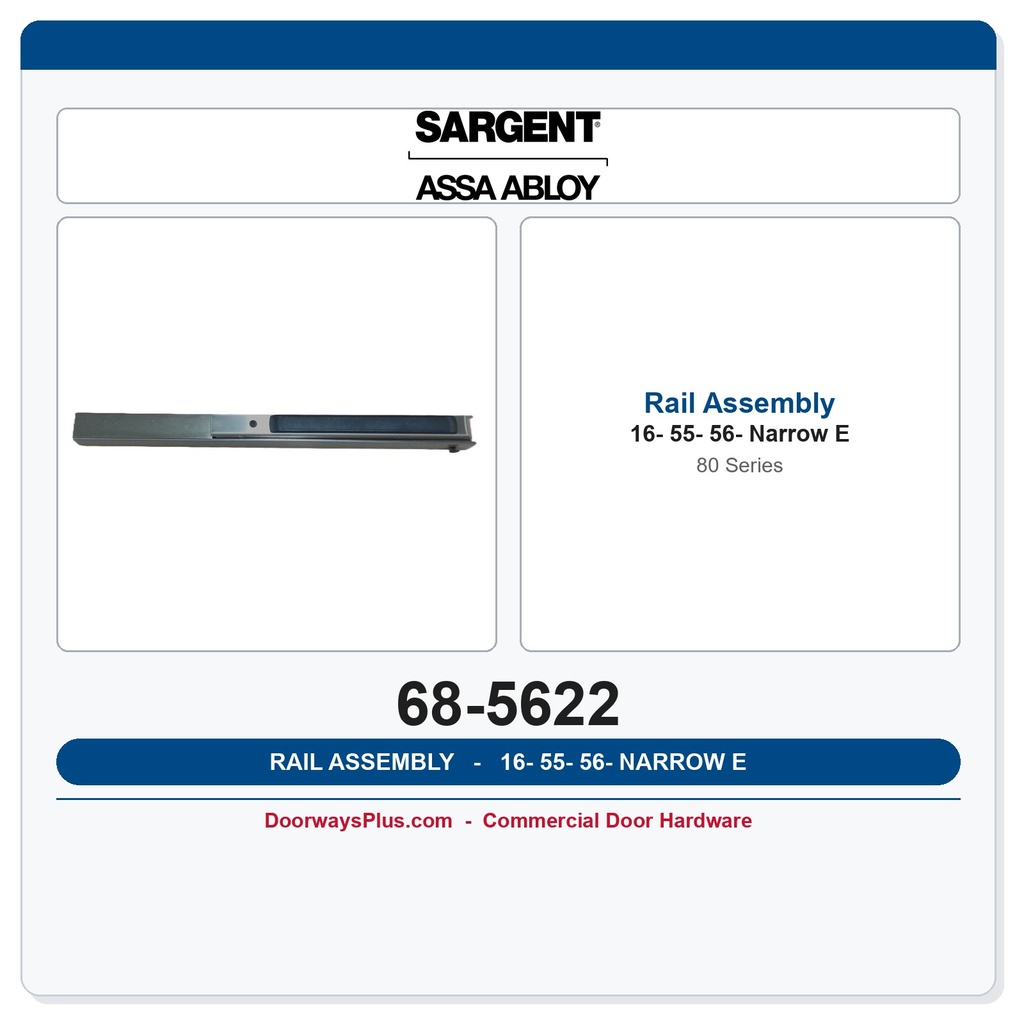

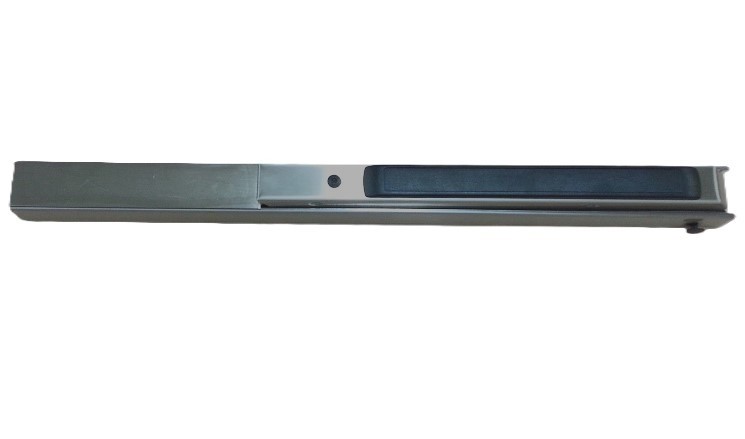

Sargent 68-5622 Narrow Rail Assembly for 80 Series Exit Devices
The Sargent 68-5622 is a genuine OEM Narrow Rail Assembly designed as a direct replacement component for Sargent 80 Series exit devices. Also referenced by the full part designation 68-5622 16-55-56- E, this assembly carries a rail stock size code of E, indicating it is engineered to fit doors ranging from 24 inches to 32 inches in width. As an authentic Sargent factory part, it ensures proper fit, function, and longevity when restoring or servicing an 80 Series panic hardware installation.
Institutional Grade Features & Benefits
- Genuine OEM Part: Manufactured by Sargent to original factory specifications, eliminating the guesswork and fit issues associated with aftermarket substitutes.
- Direct 80 Series Compatibility: Engineered specifically for the Sargent 80 Series exit device platform, ensuring seamless drop-in replacement without modification.
- Narrow Rail Design: The narrow rail profile suits applications where door stile width requires a low-profile exit device rail assembly, common in commercial and institutional aluminum-framed doors.
- Rail Stock Size E — Fits 24" to 32" Doors: The E rail stock size accommodates a broad range of standard commercial door widths, making this assembly versatile for retrofit and new-construction service work alike.
- Restoration-Grade Replacement: Restores the mechanical integrity of an existing 80 Series exit device, extending the service life of the installed hardware and deferring full-device replacement costs.
- Commercial & Institutional Grade: Built to the performance standards expected in high-traffic commercial, institutional, educational, and healthcare egress applications.
Applications
The Sargent 68-5622 Narrow Rail Assembly is the correct service part when the rail component of a Sargent 80 Series exit device is worn, damaged, or missing on a door between 24" and 32" wide. Typical use environments include office buildings, schools, hospitals, government facilities, and any commercial occupancy where Sargent 80 Series panic hardware is part of the life-safety egress system. Specifying a genuine OEM assembly supports compliance with facility maintenance standards and manufacturer service guidelines.
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Model / Part Number | 68-5622 (Full Designation: 68-5622 16-55-56-E) |
| Part Type | Assembly |
| Product Class | Exit Device Component |
| Series Compatibility | Sargent 80 Series Exit Device |
| Rail Style | Narrow Rail |
| Rail Stock Size Code | E |
| Door Width Range | 24 inches to 32 inches |
| OEM / Aftermarket | Genuine OEM Sargent Replacement Part |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
