Sargent 68-4411 Chassis Assembly for 80 Series Exit Devices

The Sargent 68-4411 is a genuine OEM Chassis Assembly engineered as the core operating mechanism for the Sargent 80 Series exit device. When the push bar is depressed, the push rail transfers that force directly to this chassis, which retracts the latch bolt to allow immediate, code-compliant egress. As the mechanical heart of the 80 Series panic hardware assembly, the 68-4411 is the go-to replacement part for restoring proper latch retraction and push-bar functionality in high-traffic commercial and institutional door applications.

Institutional Grade Features & Benefits

• Core Exit Device Mechanism: Serves as the primary operating chassis for Sargent 80 Series exit devices, ensuring reliable latch retraction with every push-bar activation.
• Genuine Sargent OEM Part: Factory-engineered replacement component designed to exact tolerances for seamless fit and long-term performance within the 80 Series platform.
• Fire-Rated Device Compatible: Verified for use across a broad range of fire-rated 80 Series exit device models, supporting compliance with life-safety and building code requirements.
• Simplified Maintenance: Replacing this single chassis assembly can return an 80 Series exit device to full operation without requiring a complete device replacement, reducing downtime and cost.
• Broad Model Coverage: Compatible with sixteen distinct 80 Series exit device configurations, making it a practical stocking part for facility managers, locksmiths, and door hardware contractors.

Compatible 80 Series Exit Device Models

The Sargent 68-4411 Chassis Assembly is compatible with the following Sargent 80 Series fire-rated exit device models: 12-8804, 12-8806, 12-8810, 12-8813, 12-8815, 12-8840, 12-8843, 12-8844, 12-8846, 12-8866, 12-8875, 12-8876, 12-8877, 12-8878, 12-8881, 12-8882 — all Fire-Rated configurations.

Technical Details

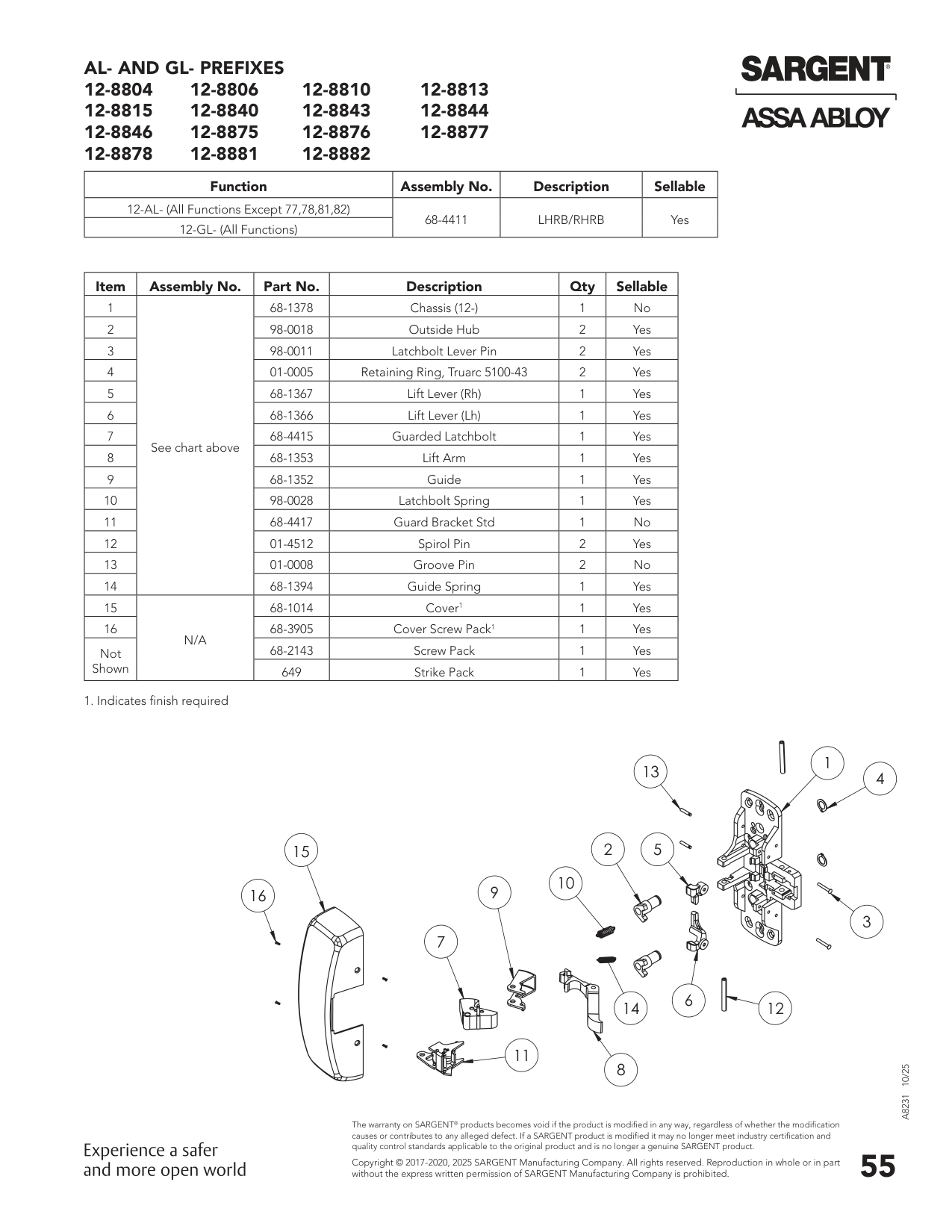

Parts List Illustration
