Sargent 68-4122 Chassis Assembly for 80 Series Exit Devices — RHR

The Sargent 68-4122 is an OEM Chassis Assembly engineered as a core operating component for the Sargent 80 Series exit device. When the push bar is activated, the push rail transfers force directly to this chassis, which retracts the latch bolt to allow egress. This replacement chassis is designed for Right Hand Reverse (RHR) applications and is compatible with the AL-8762 (Alarmed) and GL-8762 (Guarded Latch) exit device models.

Institutional Grade Features & Benefits

• OEM Sargent Component: A genuine Sargent factory part, ensuring precise fit, reliable function, and adherence to original device tolerances within the 80 Series product line.
• Core Egress Mechanism: Serves as the mechanical heart of the exit device — receiving force from the push rail and converting it into latch retraction for consistent, code-compliant egress operation.
• Targeted Handing — RHR: Manufactured specifically for Right Hand Reverse door applications, eliminating field modifications and ensuring correct mechanical alignment out of the box.
• Restores Exit Device Performance: Ideal for facility managers, door hardware distributors, and service technicians looking to restore a worn or damaged 80 Series device to like-new operating condition without full device replacement.
• Broad 80 Series Compatibility: Matches the AL-8762 and GL-8762 device configurations, covering alarmed and guarded-latch exit device variants within the Sargent 80 Series family.

Technical Details

Door Handing Reference

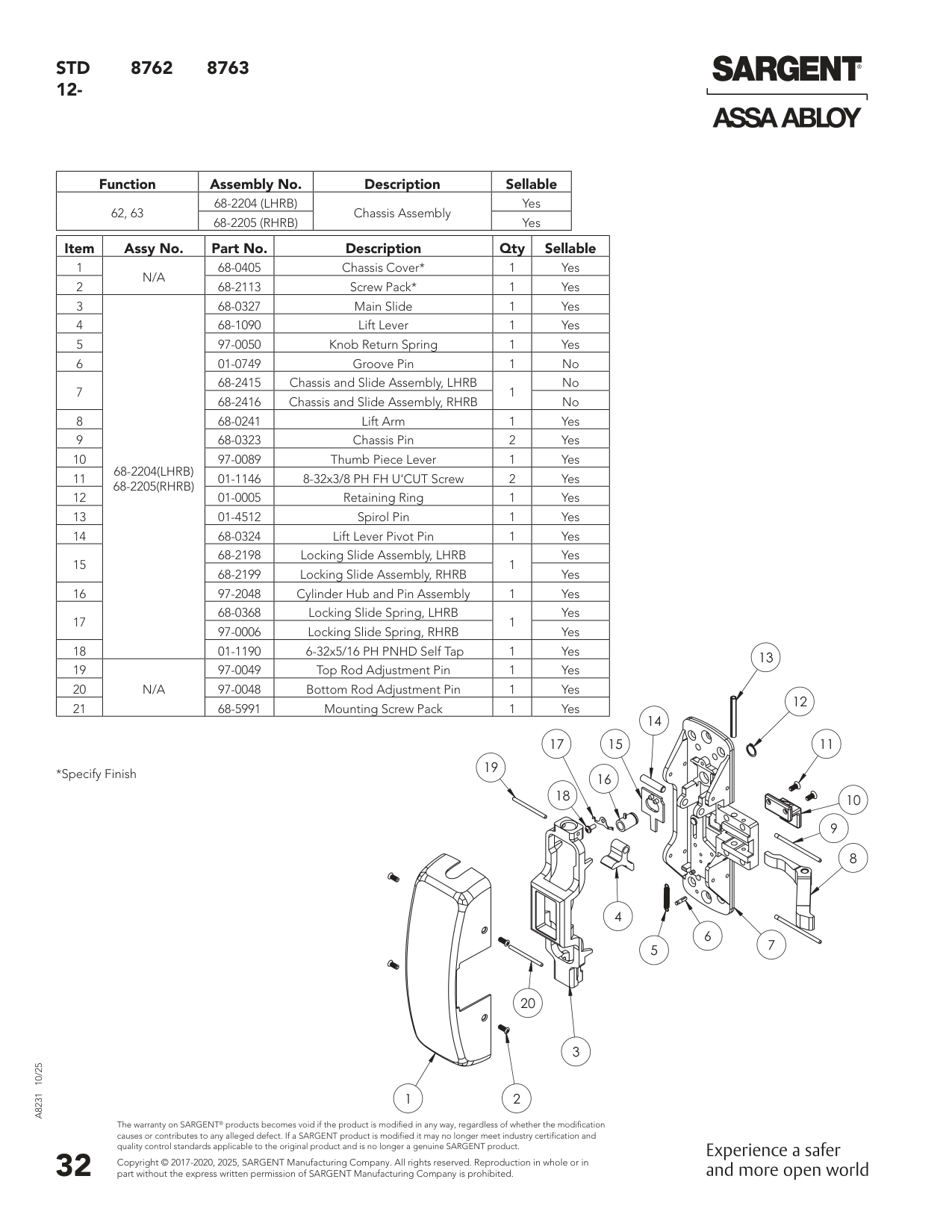

Parts List Illustration
