Sargent 68-4113 Chassis Assembly for 80 Series Exit Devices — Right Hand Reverse (RHR)

The Sargent 68-4113 is an OEM Chassis Assembly engineered for the Sargent 80 Series exit device line. This core operating component serves as the mechanical heart of the exit device: when the push bar or push rail is depressed, force is transferred directly to this chassis, which actuates the latch retraction mechanism to allow immediate, code-compliant egress. Designed for Right Hand Reverse (RHR) applications, this replacement chassis restores proper push-bar-to-latch operation on doors where the original assembly has worn or failed. Compatible device models include the AL-8706 (Alarmed) and GL-8706 (Guarded Latch).

Institutional-Grade Features & Benefits

• OEM Sargent Component: Manufactured to the same tolerances and material standards as the original factory-installed chassis, ensuring a precise fit and reliable service life within the 80 Series platform.
• Restores Core Egress Functionality: Directly replaces a worn or damaged chassis assembly, bringing the push-bar-to-latch actuation cycle back to full, code-compliant performance without requiring full device replacement.
• RHR Handing: Configured for Right Hand Reverse door applications — refer to the handing diagram included with the listing for door-hand confirmation before ordering.
• Broad 80 Series Compatibility: Engineered to work within the Sargent 80 Series exit device family, fitting the AL-8706 alarmed model and the GL-8706 guarded-latch model.
• Reduces Downtime & Total Cost of Ownership: Targeted chassis replacement is a cost-effective alternative to full device replacement, minimizing labor time and hardware expenditure on institutional, commercial, and high-traffic door openings.
• Ideal for Preventive Maintenance Programs: Stocking OEM chassis assemblies allows facility managers and locksmiths to service 80 Series devices on-schedule, keeping life-safety exit hardware performing to specification.

Compatible Exit Device Models

The Sargent 68-4113 Chassis Assembly is compatible with the following Sargent 80 Series exit device configurations:

• AL-8706 — Alarmed exit device
• GL-8706 — Guarded Latch exit device

Applications

• Commercial and institutional door openings equipped with Sargent 80 Series exit devices
• Replacement and preventive-maintenance service on RHR door applications
• Schools, hospitals, office buildings, and other high-traffic facilities requiring reliable, code-compliant egress hardware
• Locksmith and facility maintenance programs that stock OEM parts for rapid in-field repairs

Technical Details

Door Handing Reference

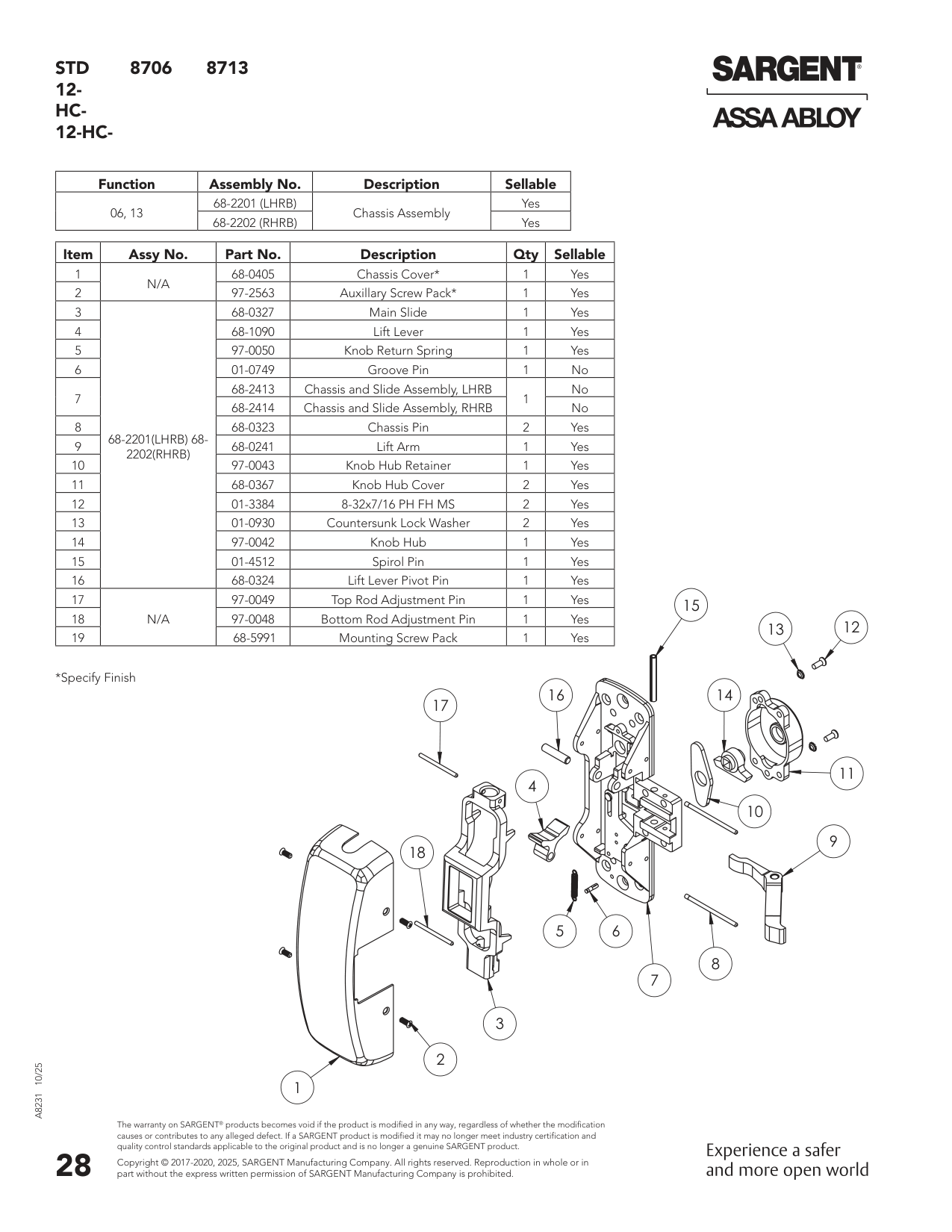

Parts List Illustration
