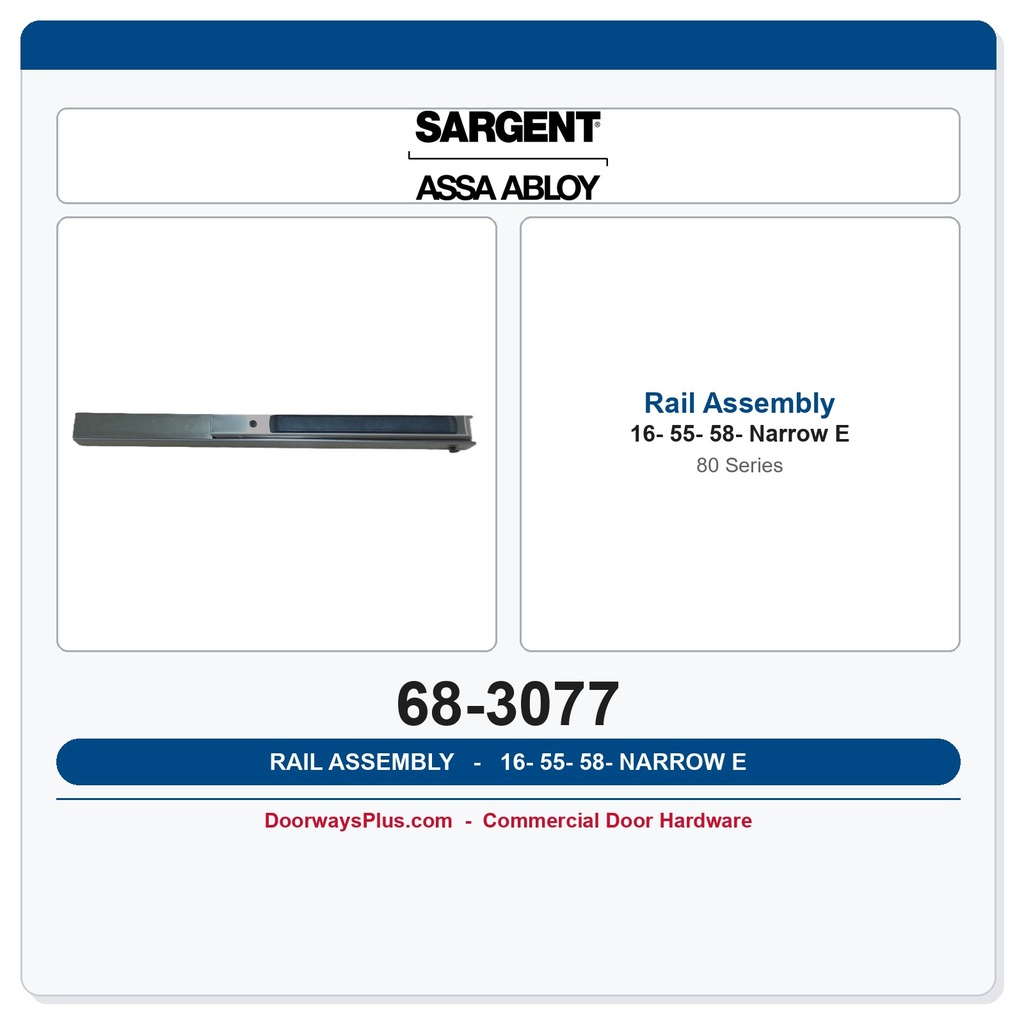

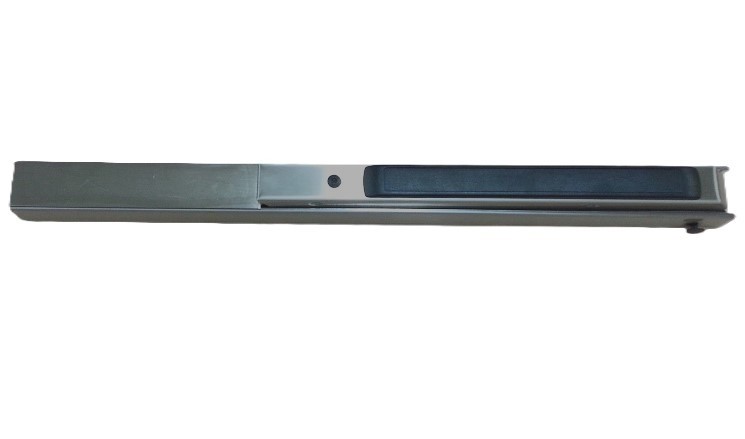

Sargent 68-3077 Rail Assembly — E-Narrow Stock for 80 Series Exit Devices (24" to 32" Doors)
The Sargent 68-3077 16-55-58 Rail Assembly is a genuine OEM replacement component engineered specifically for the Sargent 80 Series exit device. Designated with rail stock size E (E-narrow), this assembly is sized to fit doors ranging from 24 inches to 32 inches in width, making it the correct choice for narrow and standard-width door openings within that range. As an authentic Sargent replacement part, it is manufactured to the same tolerances and material standards as the original factory component, ensuring proper fit and reliable function when restoring or rebuilding an 80 Series panic hardware unit.
Institutional Grade Features & Benefits
- Genuine OEM Part: Manufactured by Sargent to original factory specifications — not an aftermarket substitute — so you can be confident in fit, finish, and long-term performance.
- Correct Rail Stock Size (E-Narrow): Rail stock designation E covers door widths of 24" to 32", ensuring the assembly spans the cross-bar correctly without modification.
- 80 Series Compatibility: Designed and verified for use with the Sargent 80 Series exit device family, the industry-standard panic hardware line found in commercial, institutional, and industrial door openings.
- Direct Replacement: Restores the mechanical integrity of a worn, damaged, or missing rail assembly, extending the service life of an existing 80 Series exit device installation without requiring full device replacement.
- Simplified Maintenance: Using the correct OEM assembly reduces installation time and eliminates the risk of fitment issues associated with non-OEM alternatives.
Applications
The Sargent 68-3077 Rail Assembly is appropriate for facilities requiring replacement or repair of Sargent 80 Series exit devices on doors measuring 24" to 32" wide. Typical applications include commercial office buildings, schools, healthcare facilities, government buildings, and any institutional occupancy where 80 Series panic hardware is already installed and rail components require servicing.
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-3077 |
| Part Type | Rail Assembly |
| Product Class | Exit Device Component |
| Rail Stock Size | E (E-Narrow) |
| Door Width Coverage | 24" to 32" |
| Compatible Device Series | Sargent 80 Series Exit Device |
| OEM Status | Genuine Sargent OEM Replacement Part |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
