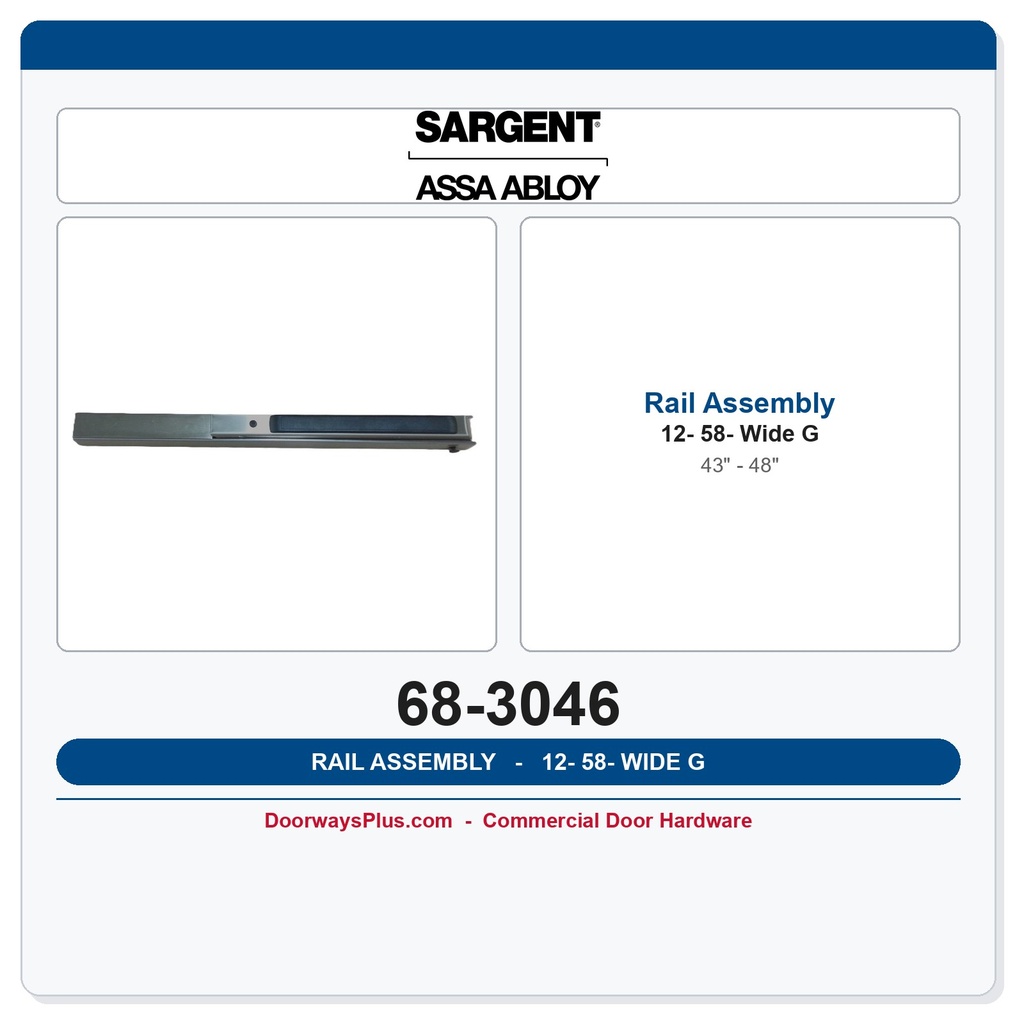

Sargent 68-3046 Rail Assembly — 80 Series Exit Device Wide (G) Rail, 43" to 48" Doors
The Sargent 68-3046 is a genuine OEM replacement Rail Assembly designed specifically for the Sargent 80 Series exit device family. Also referenced by its component designation 12-58-86/87/88/89, this assembly carries the G rail stock size, meaning it is engineered to fit door widths from 43 inches to 48 inches — the wide end of the Sargent 80 Series rail range. As an authentic Sargent OEM part, it maintains the dimensional tolerances, finish alignment, and mechanical interface required for proper exit device function and long-term performance in commercial and institutional door hardware installations.
Institutional Grade Features & Benefits
- Genuine OEM Part: Manufactured by Sargent to factory specifications, ensuring a precise fit and reliable operation within the 80 Series exit device platform — no adaptation or modification required.
- Wide Door Coverage (G Size): The G rail stock size is rated for door widths of 43" to 48", making this assembly the correct choice for wide single doors and oversized openings commonly found in commercial and institutional applications.
- Direct Replacement Assembly: Restores the rail mechanism to original operating condition, eliminating the need to replace the entire exit device and reducing downtime and maintenance costs.
- Broad 80 Series Compatibility: Confirmed compatible with Sargent exit device models 8600, 8700, 8800, and 8900 — covering multiple trim and function configurations within the 80 Series product line.
- Commercial-Grade Construction: Built to withstand the demands of high-traffic egress openings in schools, hospitals, office buildings, and other commercial facilities where exit devices must perform consistently and safely.
Technical Specifications
- Compatible Exit Device Models: Sargent 8600, 8700, 8800, 8900 (80 Series)
- Rail Stock Size: G — fits 43" to 48" door widths
- Part Type: Assembly (Rail Assembly)
- Product Class: Exit Device Replacement Part
- OEM Status: Genuine Sargent OEM replacement component
Technical Details
| Feature | Details |
|---|---|
| Brand | Sargent |
| Part Number | 68-3046 |
| Component Designation | 12-58-86/87/88/89 |
| Part Type | Rail Assembly |
| Rail Stock Size | G (43" to 48" door width) |
| Compatible Series | Sargent 80 Series |
| Compatible Exit Device Models | 8600, 8700, 8800, 8900 |
| Product Class | Exit Device |
| OEM | Yes — Genuine Sargent OEM Replacement Part |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 or US3 - Polished Brass or US4 - Satin Brass or US10 - Satin Bronze or US10BE - Oil Rub Bronze Equal |
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Assembly |
