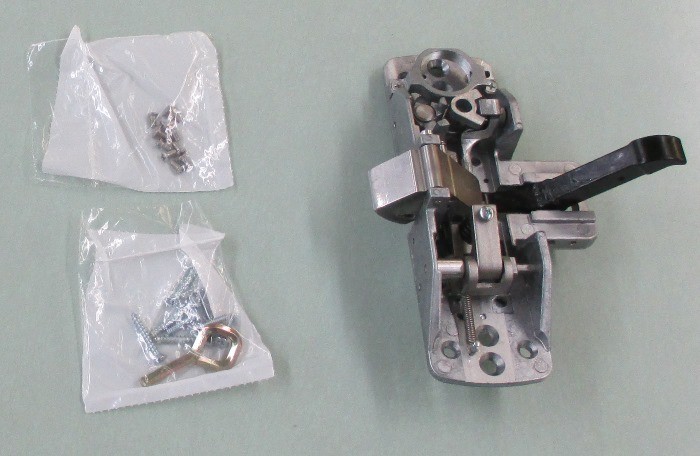

Sargent 68-2352 Chassis Assembly for 8816 Exit Device — Less Cover, LHRB

The Sargent 68-2352 is a factory-replacement chassis assembly (less cover) designed for the Sargent 8816 80 Series exit device. This is the core operating assembly that drives the mechanical function of the exit device: when the push bar is pressed, the push rail transfers force to this chassis, which retracts the latch to allow egress. Handing is Left Hand Reverse Bevel (LHRB). A handing diagram accompanies this listing.

Institutional Grade Features & Benefits

• OEM Sargent Replacement Part: Manufactured to original Sargent specifications, ensuring reliable, like-for-like performance in your 80 Series exit device installation.
• Core Mechanical Assembly: Serves as the central chassis that translates push-bar force into latch retraction, maintaining the fundamental egress operation of the exit device.
• Less Cover Configuration: Supplied without the cover plate, making it suitable for applications where the existing cover is being reused or where a separate cover is specified.
• Precise Handing — LHRB: Engineered specifically for Left Hand Reverse Bevel door applications; see the handing diagram included with this listing.
• Direct-Fit Compatibility: Designed as a drop-in replacement for the Sargent 8816 within the 80 Series exit device platform, minimizing installation time and reducing the need for field modifications.
• Reduces Downtime: Restocking this critical sub-assembly as a spare allows facility managers, locksmiths, and door hardware contractors to restore exit device operation quickly without replacing the entire unit.

Applications

The Sargent 68-2352 chassis assembly is the preferred service and replacement part for commercial, institutional, and educational facilities that rely on the Sargent 8816 80 Series exit device. It is commonly specified by door hardware distributors, institutional facility maintenance teams, locksmiths, and commercial door contractors performing field service, scheduled maintenance, or hardware upgrades on existing Sargent exit device installations.

Technical Details

Door Handing Reference

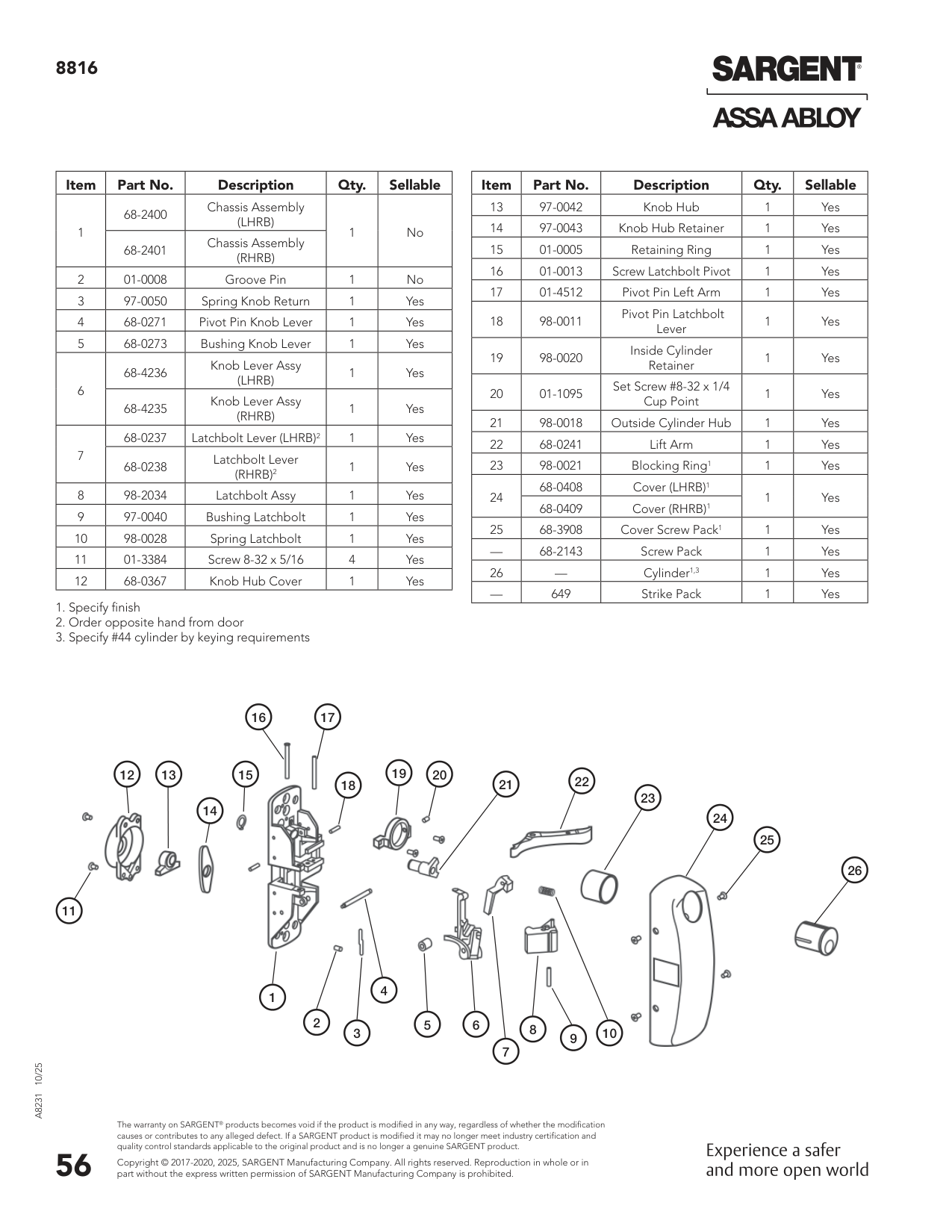

Parts List Illustration
