Sargent 68-2269 Chassis Pack for 8710 Exit Device — RHRB
The Sargent 68-2269 is an OEM Chassis Assembly (chassis pack) engineered for the Sargent 8710 exit device within the Sargent 80 Series exit device line. This is the core operating chassis that drives the mechanical egress sequence: when the push bar is depressed, the push rail transfers that force directly to this chassis, retracting the latch and allowing immediate egress. This replacement chassis pack is handed RHRB and is designed to restore precise, reliable operation to your 80 Series exit device without the cost of a full device replacement.
Institutional Grade Features & Benefits
- OEM Sargent Replacement Part: Manufactured to Sargent's original engineering specifications, ensuring exact fit and function within the 8710 exit device chassis assembly.
- Core Egress Mechanism: Serves as the central operating component — when the push bar is actuated, this chassis pack directly retracts the latch bolt to provide reliable, code-compliant egress.
- 80 Series Compatibility: Precisely matched to the Sargent 8710 model within the Sargent 80 Series exit device family, minimizing guesswork during repair or maintenance.
- RHRB Handing: Factory-configured for Right Hand Reverse Bevel (RHRB) door applications — refer to the handing diagram included with the listing to confirm door preparation.
- Cost-Effective Repair Solution: Replacing only the chassis assembly extends the service life of an existing 80 Series exit device, making this a practical alternative to full device replacement in commercial, institutional, and industrial door openings.
- Simplified Maintenance: Designed for field serviceability, allowing facility managers and door hardware professionals to restore proper exit device function efficiently.
Technical Specifications
- Compatible Exit Device Model: Sargent 8710 (80 Series)
- Handing: RHRB (Right Hand Reverse Bevel)
- Part Type: Chassis Assembly (Chassis Pack)
- Product Class: Exit Device Replacement Part
- Brand: Sargent
- Part Number: 68-2269
Technical Details
| Feature | Details |
|---|---|
| Model Number | 68-2269 |
| Part Type | Chassis Assembly (Chassis Pack) |
| Handing | RHRB |
| Series Compatibility | Sargent 80 Series |
| Exit Device Compatibility | Sargent 8710 |
| Brand | Sargent |
Door Handing Reference

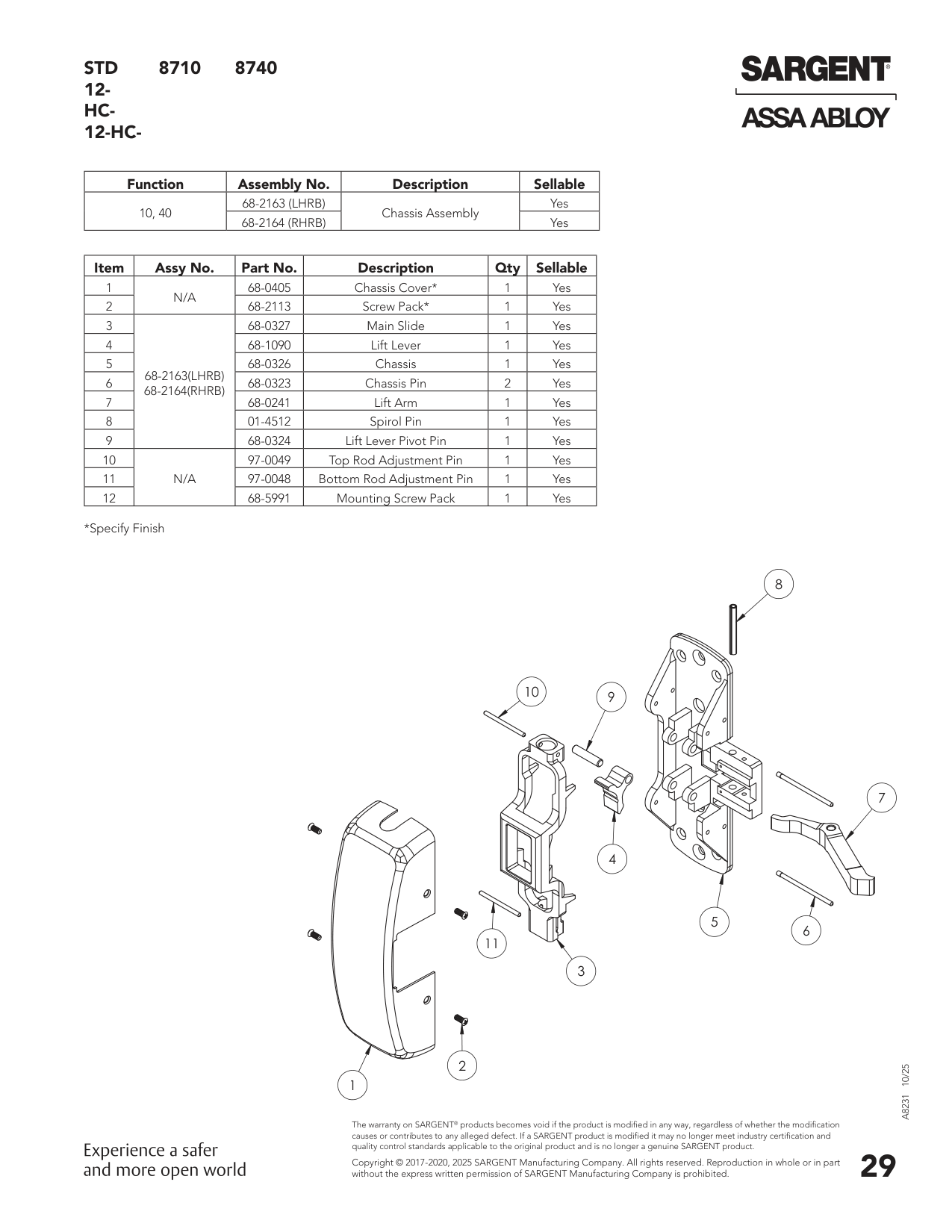

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
