Sargent 68-2268 Chassis Pack — 8710 Exit Device Chassis Assembly, LHRB
The Sargent 68-2268 is an OEM Chassis Assembly (Chassis Pack) designed as the core operating mechanism for the Sargent 8710 exit device within the Sargent 80 Series exit device line. When the push bar is depressed, the push rail transfers that force to this chassis, which retracts the latch bolt to permit egress. This is the genuine Sargent replacement chassis pack engineered specifically to restore proper operation to an 8710 exit device. Handing is LHRB (Left Hand Reverse Bevel).
Institutional Grade Features & Benefits
- OEM Sargent Replacement Part: Engineered to exact factory tolerances for the 80 Series exit device platform, ensuring reliable, repeatable latch retraction cycle after cycle.
- Core Operating Mechanism: Serves as the functional heart of the exit device — the chassis translates push-bar force into clean latch retraction, maintaining code-compliant egress performance.
- Targeted 8710 Compatibility: Designed exclusively for the Sargent 8710 exit device model, eliminating fit and function guesswork during replacement or repair.
- LHRB Handing: Supplied in Left Hand Reverse Bevel configuration — confirm door handing before ordering; a handing reference diagram accompanies this listing.
- Streamlined Maintenance: Replacing the chassis pack rather than the entire exit device reduces downtime and overall repair cost on institutional, commercial, and high-traffic openings.
- 80 Series Platform: The Sargent 80 Series is a widely specified exit device line in commercial, institutional, and educational facilities, making genuine replacement parts like the 68-2268 a staple for facility managers and door hardware professionals.
Applications
The Sargent 68-2268 Chassis Pack is the correct service part for restoring or rebuilding a Sargent 8710 exit device on LHRB openings. Typical applications include commercial corridor doors, institutional interior and exterior egress doors, school and university facilities, healthcare buildings, and any high-traffic opening equipped with the Sargent 80 Series exit device.
Technical Specifications
- Compatible Exit Device Model: Sargent 8710
- Series Compatibility: Sargent 80 Series Exit Devices
- Handing: LHRB (Left Hand Reverse Bevel)
- Part Type: Chassis Assembly (Chassis Pack)
- Brand: Sargent
- Part Number: 68-2268
Technical Details
| Feature | Details |
|---|---|
| Part Number | 68-2268 |
| Part Type | Chassis Assembly (Chassis Pack) |
| Brand | Sargent |
| Compatible Exit Device | Sargent 8710 |
| Series Compatibility | Sargent 80 Series |
| Product Class | Exit Device Component |
| Handing | LHRB (Left Hand Reverse Bevel) |
Door Handing Reference

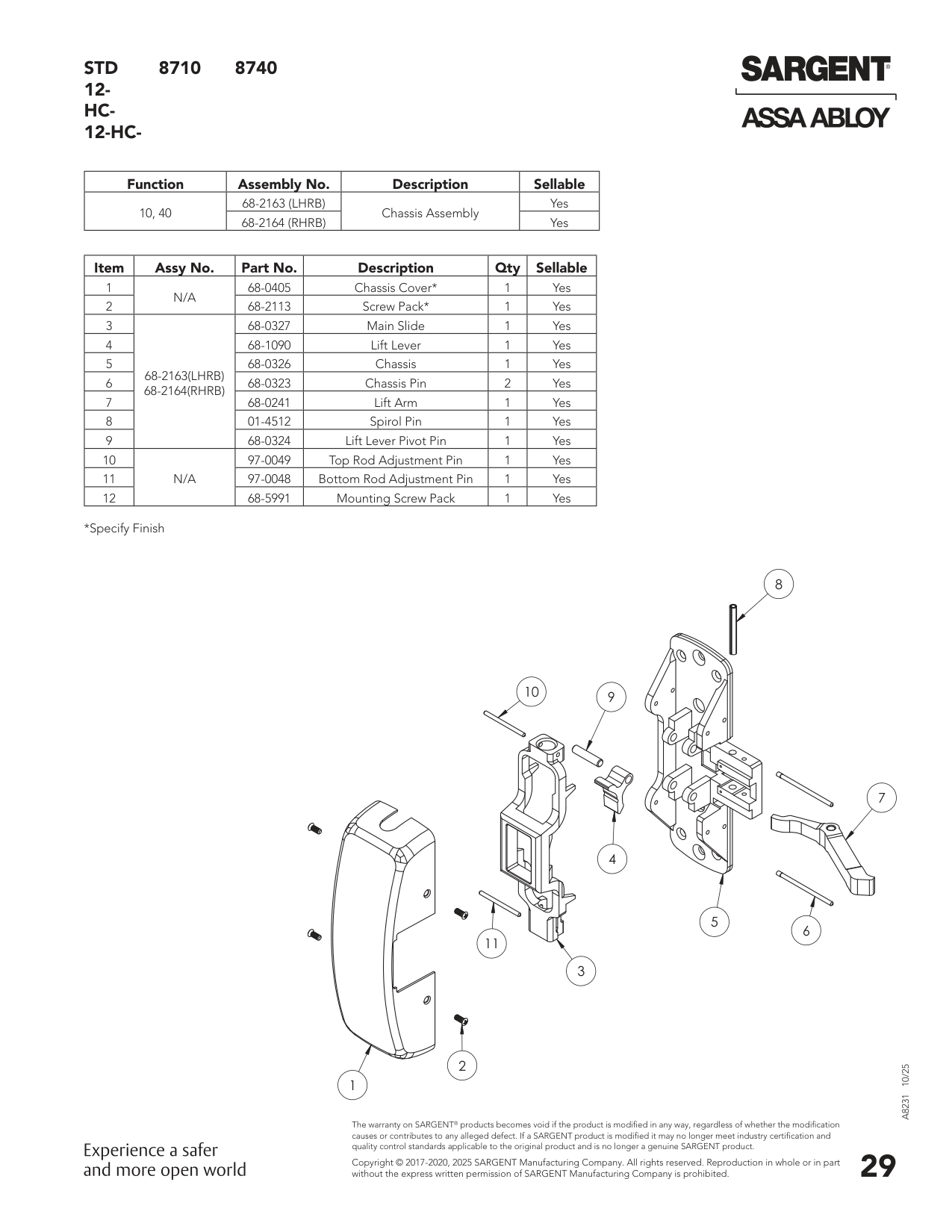

Parts List Illustration
| Brand | Sargent |
| Series | Sargent - 80 Series |
| Part Type | Chassis Assembly |
