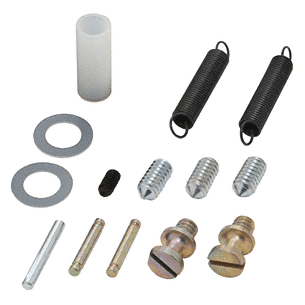

CRL Jackson 30851 1095 Series Body Hardware Package

The CRL Jackson 30851 Body Hardware Package is a precision-engineered exit device maintenance solution designed specifically for the Jackson 1095 Crossbar and 1095P Paddle Rim Exit Devices. In high-traffic commercial environments, the internal fasteners and specialized mounting components of an aluminum storefront panic bar can vibrate loose or wear down, compromising the safety and security of the opening. This comprehensive hardware kit provides the essential direct replacement body parts required to restore the chassis, ensuring the device remains rigid and operates with factory-level precision.

As a critical facility repair solution, the 30851 kit is the industry standard for maintaining the "10 Series" rim panic hardware. Whether you are servicing a traditional crossbar model or the ergonomic 1095P Push Paddle version, this package eliminates the common mechanical failures associated with aging storefront hardware. By utilizing these OEM Jackson parts, maintenance teams can perform professional-grade restorations on narrow, medium, or wide stile aluminum doors, extending the lifecycle of the exit device and avoiding the high cost of full hardware replacement.

Exit Device Mechanical Function & Structural Summary

The Body Hardware Package is the structural foundation of a rim exit device. Proper anchoring and internal alignment are vital for compliance and user safety:

• Vibration-Resistant Anchoring: Storefront doors face constant cycles of impact and wind load. This kit includes specialized fasteners designed to secure the active and inactive housings, providing a long-term stability solution.

• Rim Latch Alignment: The Jackson 1095 relies on a precise strike-to-latch relationship. This hardware package ensures the body and arms are mounted square to the door stile, preventing latch "bind" and ensuring positive closure.
• Life Safety Compliance: A malfunctioning panic bar can prevent emergency egress. Maintaining the device body with the CRL Jackson 30851 package ensures the door meets ANSI/BHMA A156.3 standards for immediate, unhindered exit.
• Handing Consistency: Because the 1095 series is handed (LHR or RHR), this hardware package is engineered to support the specific mechanical tension and pivot points required for both Crossbar and Paddle configurations.

Technical Specifications

Engineered Solutions for Storefront Maintenance

The CRL Jackson 30851 addresses the specific operational and mechanical challenges found in retail and commercial entrances:

• Restore Smooth Operation: Over time, "play" in the housing leads to a clunky, difficult-to-operate bar. This kit is the primary efficiency solution for tightening the device body, resulting in a quieter and more responsive user experience.

• Eliminate Sagging Arms: Worn mounting hardware can cause crossbars to sag or paddles to feel loose. Replacing the body fasteners restores the original leverage and spring tension, providing a reliable mechanical solution.
• Streamlined Field Service: Avoid the frustration of mismatched screws from local hardware stores. This 30851 accessory pack provides the exact thread pitches and lengths required for the 1095 series, reducing labor time and preventing cross-threading in aluminum stiles.
• Preventative Maintenance Strategy: Regularly replacing body hardware is a cost-saving solution that prevents the main latching mechanism from failing due to the added stress of a misaligned chassis.
• Storefront Aesthetic Preservation: Properly seated hardware prevents the device body from "walking" on the door face, which protects the Satin Aluminum or Dark Bronze finish from unsightly scratches and metal-on-metal wear.
