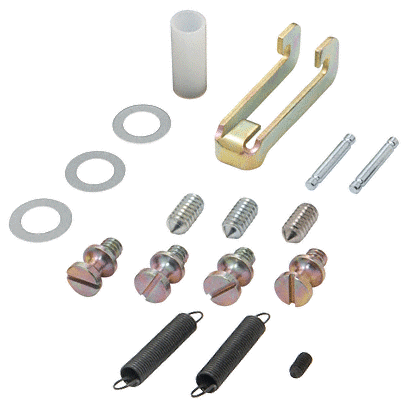

CRL Jackson 301409 1085 Series Body Hardware Accessory Package

The CRL Jackson 301409 Body Hardware Accessory Package is a precision-engineered exit device maintenance solution designed specifically for the Jackson 1085 and 1085P Series Concealed Vertical Rod (CVR) Panic Bars. Over years of high-traffic use in retail storefronts and commercial entrances, the internal fasteners and specialized mounting components of a panic bar can vibrate loose or become stripped. This comprehensive hardware kit provides the essential replacement parts required to secure the device body to the door stile, ensuring the hardware remains rigid and fully functional.

As a critical facility repair solution, the 301409 kit eliminates the safety hazards associated with loose or "sagging" exit devices. When a panic bar body is not perfectly anchored, the internal mechanics—including the vertical rod actuators—can become misaligned, leading to latching failures or restricted egress. By utilizing these Jackson 1085 Series OEM parts, maintenance teams can perform a professional-grade restoration of the device's structural integrity, extending the lifecycle of the existing aluminum storefront hardware without the need for a full, costly device replacement.

Exit Device Mechanical Function & Structural Summary

The Body Hardware Accessory Package serves a vital role in the mechanical chain of a concealed vertical rod system. Proper anchoring is the foundation of reliable door operation:

• Vibration Resistance: Commercial aluminum doors are subject to constant slamming and wind loads. This kit includes specialized fasteners designed to resist backing out, providing a long-term security solution for high-frequency openings.
• Actuator Alignment: In Jackson 1085 CVR models, the push bar must remain perfectly level to engage the top and bottom rods. This hardware package ensures the chassis is mounted flush and square to the door stile.
• Life Safety Compliance: A loose exit device can catch on clothing or fail to depress fully during an emergency. Maintaining the body with CRL Jackson 301409 hardware ensures the door meets NFPA 101 Life Safety standards for immediate and easy egress.
• Surface Protection: Properly seated mounting hardware prevents the panic bar body from "chattering" against the aluminum stile, which protects the architectural finish of the door from scratches and metal fatigue.

Technical Specifications

Engineered Solutions for Storefront Maintenance

The CRL Jackson 301409 addresses specific operational and structural challenges in the commercial glazing and hardware industry:

• Eliminate Device Rattle: One of the most common complaints in retail environments is the "clanking" of a loose panic bar. This hardware package is the primary solution for tightening the device chassis, resulting in a quieter and more professional storefront experience.
• Restore Latching Accuracy: If the body hardware is worn, the vertical rods may not fully retract or extend. Replacing the body fasteners ensures the push-bar stroke is translated accurately to the latching points, providing a reliable locking solution.
• Simplified Field Service: Instead of searching for individual non-standard screws at a local hardware store, this 301409 accessory pack provides all necessary components in one SKU, reducing labor time and ensuring the correct thread pitches are used.
• Preventative Maintenance Strategy: Replacing body hardware during routine inspections is a cost-effective solution that prevents the internal rod connectors from snapping due to the added stress of a misaligned chassis.
• OEM Specification Match: Using generic fasteners can lead to cross-threading in the thin walls of aluminum door stiles. This CRL Jackson kit is built to the exact tolerances of the 1085 Series, ensuring a secure "first-time" fit during every repair.
