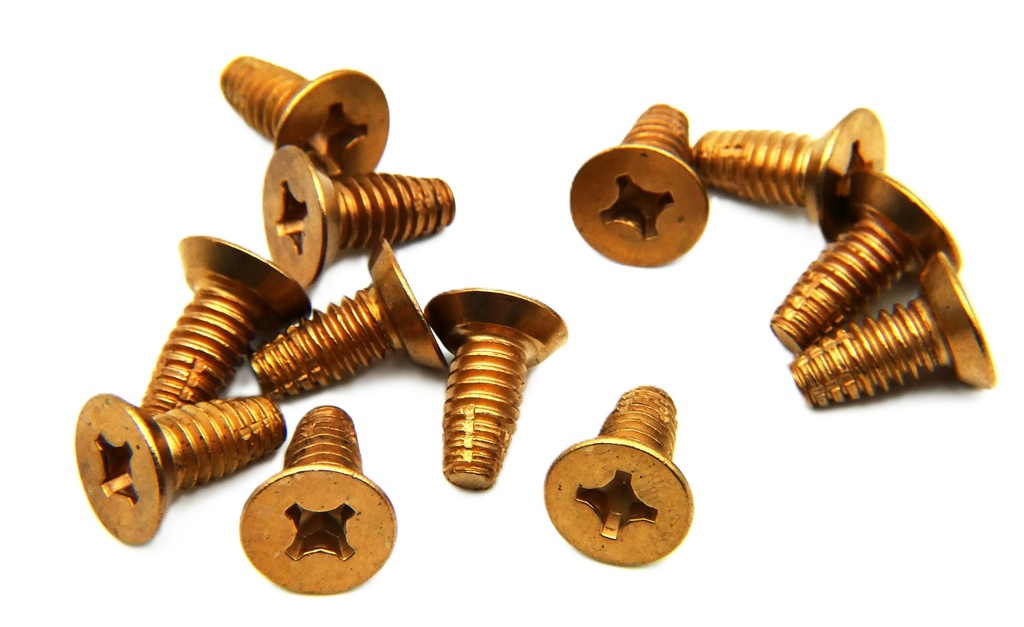

Hager 1-800-7375 US10 Commercial Hinge Machine Screws | 12-24 x 1/2" | Package of 12
The Hager 1-800-7375 is the industry-standard fastener for mounting architectural hinges to metal door frames when a rich, traditional aesthetic is required. These Flat Phillips Head Machine (FPHM) screws are precision-engineered to provide a flush, secure fit for heavy-duty commercial hinges. Finished in a professional US10 Satin Bronze, these fasteners are designed to coordinate perfectly with bronze-finished hardware in government buildings, historic renovations, and high-end commercial interiors.
Professional Grade Engineering
The Hager 1-800-7375 features a 12-24 thread, the universal standard for hollow metal frames and reinforced aluminum storefront systems. The 1/2-inch length provides the ideal amount of thread engagement for standard frame reinforcements without the risk of bottoming out. Sold in a package of 12, these screws provide a complete replacement or installation set for a standard three-hinge commercial door.
High-Torque Installation & Flush Fit
To ensure a secure and permanent mount, these screws are designed for use with a #3 Phillips Driver Bit. This larger drive size allows for maximum torque application, significantly reducing the risk of stripping or "cam-out" during high-pressure installation into steel frames. The countersunk head is precision-machined to seat perfectly level with the hinge leaf, ensuring the door operates smoothly and without obstruction.
Technical Specifications
| Feature | Specification |
| Model Number | Hager 1-800-7375 |
| Screw Type | Machine Screw (FPHM) |
| Thread Size | #12-24 |
| Length | 1/2" |
| Head Style | Flat Phillips Head, Countersunk |
| Drive Required | #3 Phillips Bit |
| Finish | US10 (Satin Bronze) |
| Packaging | 12 Screws per Package |
| Compatibility | Standard & Heavy Weight Commercial Hinges |
Key Product Highlights
- Architectural Consistency: The US10 Satin Bronze finish offers a deep, brushed bronze look that perfectly matches Hager architectural hinges.
- Standardized Sizing: The 12-24 machine thread fits all standard commercial-grade metal door frames and ASA strike preps.
- Heavy-Duty Durability: Constructed from high-strength steel to withstand the shear force of high-frequency door cycles.
- Streamlined Appearance: Precision countersinking ensures the fastener sits perfectly flush for a snag-free, professional finish.
| Brand | Hager |
| Thread Pattern | 12-24 |
| Screw Type | Phillips Head, Machine Screw |
| General - US Finishes | 612 - Bronze |
| Hinge Grade/Thickness | Standard Wt .119 to .146, Heavy Wt .180 to .190 |
