Corbin Russwin 651F67-5 Housing and Cam Assembly - ED4000 & ED5000

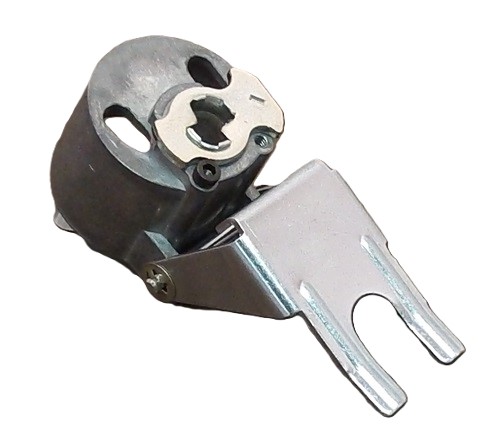

The Corbin Russwin 651F67-5 is a genuine OEM Housing and Cam Assembly designed for the ED4000 and ED5000 Series push-pad exit devices. This assembly is the core component for exterior keyed control, housing the lock cylinder and utilizing a specialized cam to retract the latchbolt. Engineered for high-security commercial applications, the 651F67-5 is required for specific functions where keyed entry or "hold-back" features are utilized, ensuring seamless communication between the outside trim and the latch assembly.
Institutional Grade Features
- Multi-Series Integration: Engineered specifically for the ED4200, ED5200, and ED5200A series rim and vertical rod exit devices.
- Function Specificity: The factory-required assembly for specialized security functions:
- 755: Classroom Function (Key locks/unlocks thumbpiece/lever).
- 759: Storeroom Function (Key always retracts latch).
- T13: Specialized Thumbpiece control.

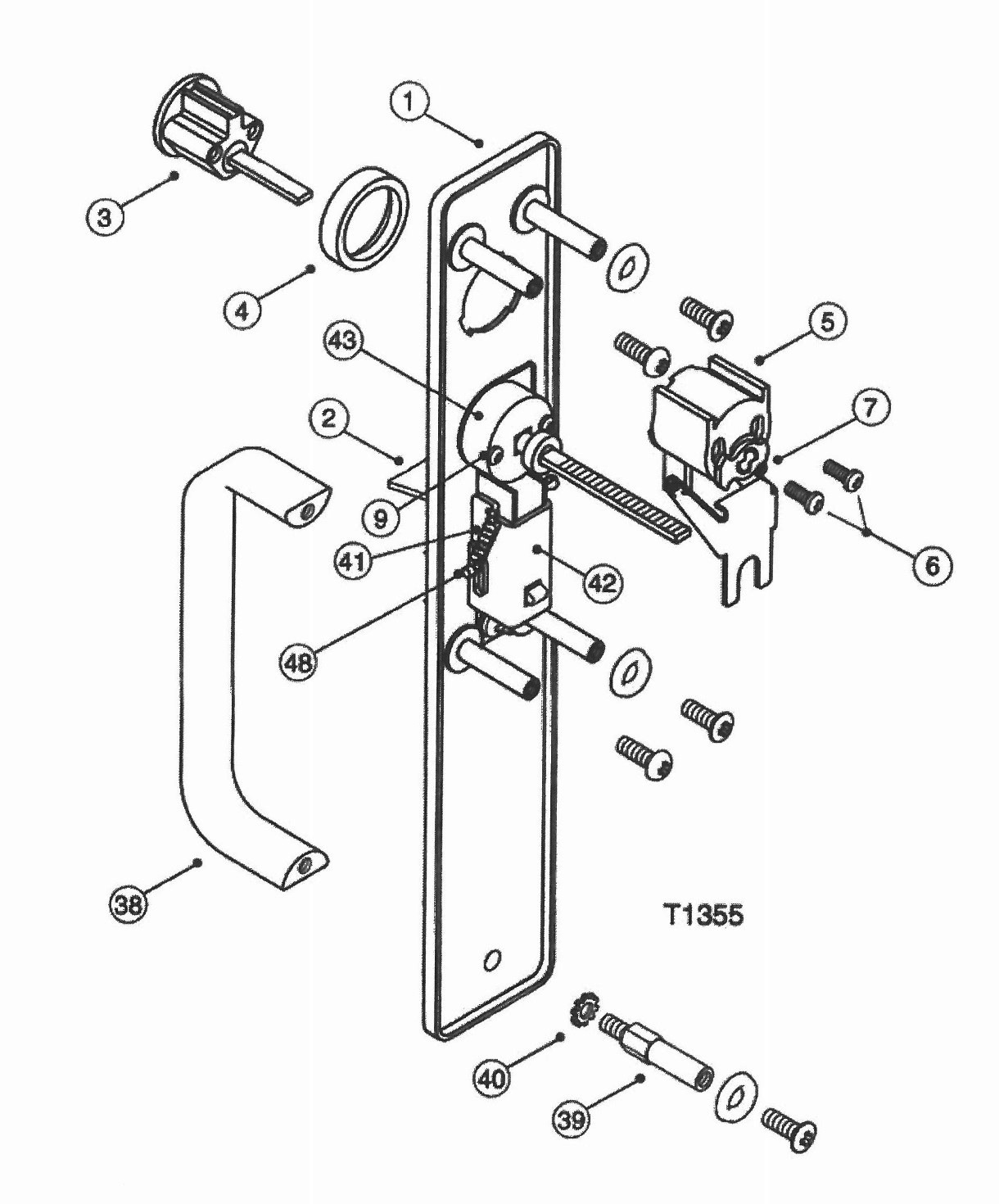

- Parts List Accuracy: Identified as Item #5 in the official ED4200/ED5200 technical parts manual.
- Complete Hardware Kit: Includes (1) #7 set screw, ensuring the assembly is securely locked into the device chassis upon installation.
- Grade 1 Durability: Manufactured from high-strength alloys to withstand the high torque of keyed rotation and frequent use in schools, hospitals, and office buildings.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 651F67-5
- Functions Supported: 755, 759, T13
- Compatible Series: ED4000 & ED5000 Series
- Components Included: Housing, Cam, and (1) Set Screw (#7)
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED4200 Series, Corbin Russwin - ED5200 Series |
| Part Type | Outside Trim Part |
