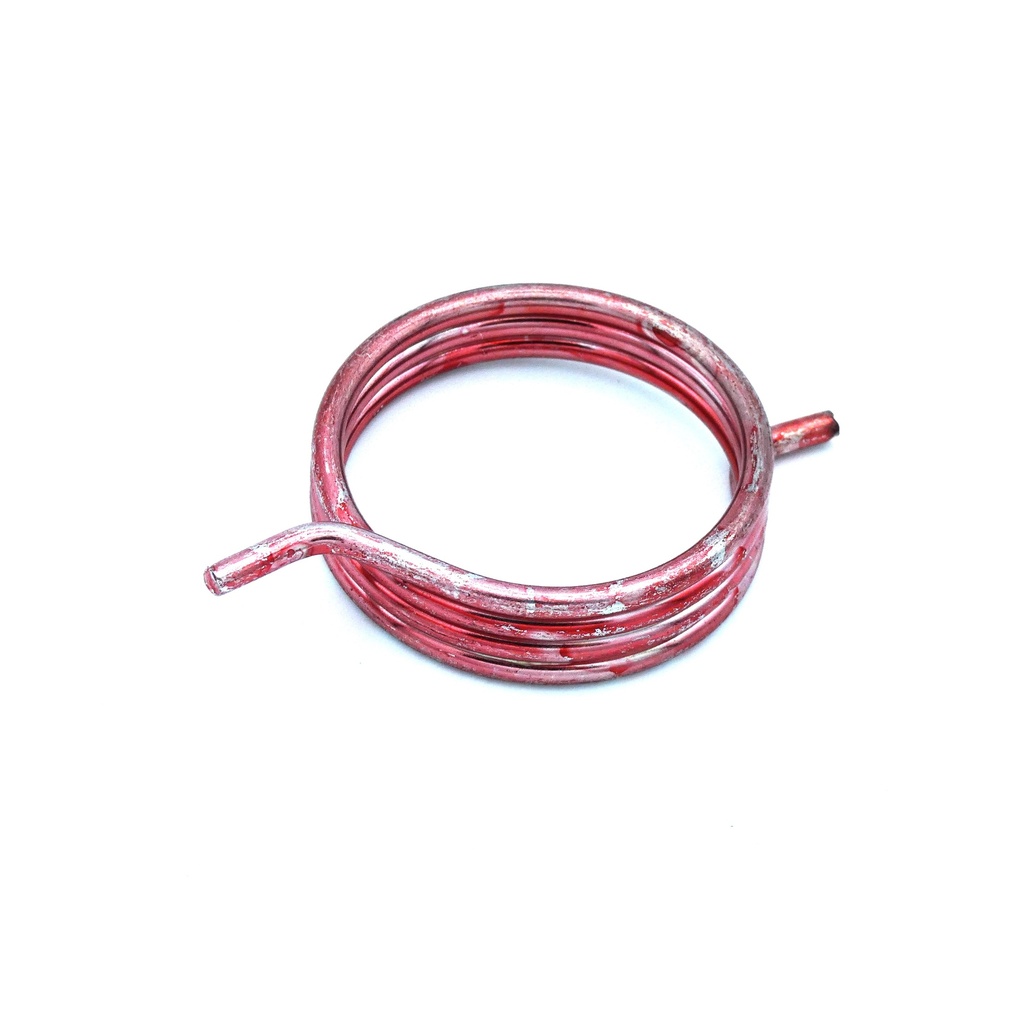

Corbin Russwin 651F61-8 Lever Return Spring - Red (LHR)
The Corbin Russwin 651F61-8 is a genuine OEM Lever Return Spring designed specifically for the exterior lever trims of ED4000 and ED5000 Series exit devices. Color-coded Red to designate its high-tension rating and Left Hand Reverse (LHR) orientation, this spring provides the necessary torque to snap the lever handle back to a horizontal position after each use. Engineered for Grade 1 performance, this spring is the primary solution for repairing drooping or sagging handles on heavy-duty commercial door trim.
Institutional Grade Features
- ED4000/ED5000 Trim Integration: The factory-standard replacement spring for Corbin Russwin's most popular exterior lever trims.
- Function Specificity: Specifically engineered for use with high-traffic outside lever functions, including:
- 910: Passage Function
- 950: Dummy Function
- 955: Classroom Function
- 959: Storeroom Function
- Parts List Accuracy: Identified as Item #18 (page 15) in the official ED4000/ED5000 technical parts manual.
- LHR Orientation (Red): Precision-coiled for Left Hand Reverse doors, ensuring the spring tension works with gravity to maintain lever alignment.
- High-Cycle Durability: Manufactured from heat-treated spring steel to withstand hundreds of thousands of cycles in schools, hospitals, and office buildings.
Technical Specifications
- Manufacturer: Corbin Russwin (ASSA ABLOY)
- Model Number: 651F61-8
- Color Code: Red (Left Hand Reverse - LHR)
- Compatible Series: ED4000, ED5000, ED4200, ED5200 Trims
- Compatible Functions: 910, 950, 955, 959
| Brand | Corbin Russwin |
| Series | Corbin Russwin - ED4200 Series, Corbin Russwin - ED5200 Series |
| Part Type | Spring, Outside Trim Part |
Corbin Russwin ED4000_ED5000 Exit Device Parts Diagrams 45255.pdf
Download
