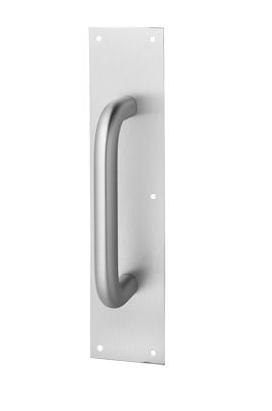

Rockwood 110 x 70C 32D Pull Plate | 1" Round Pull & 4" x 16" Plate
The Rockwood 110 x 70C Pull Plate is a heavy-duty architectural hardware set designed for the most demanding commercial and industrial environments. This set pairs a massive 1" diameter solid round pull with an expansive 4" x 16" protective push plate. Engineered for both interior and exterior use, the 110 x 70C provides a substantial, easy-to-grip handle and maximum door surface protection for hospitals, schools, and high-traffic public buildings.
Industrial Strength & Maximum Protection
- Heavy-Duty 1" Round Pull: The oversized 1-inch diameter handle offers an incredibly robust feel and a modern aesthetic, making it ideal for large, heavy commercial doors.
- Oversized 4" x 16" Surface Shield: The larger plate width provides maximum coverage against scratches, impact, and hand oils, specifically designed for wide-stile doors.
- Beveled Safety Edges: All four edges of the .050" thick stainless steel plate are precision-beveled to ensure a smooth, snag-free transition against the door face.
- Thru-Bolt Stability: Utilizes Type 1 thru-bolt mounting to create a permanent, high-strength connection that prevents the handle from ever pulling loose.
Technical Specifications
- Model: Rockwood 110 x 70C
- Plate Size: 4" Wide x 16" High
- Pull Handle CTC: 8" (Center-to-Center)
- Pull Diameter: 1" Solid Round Bar
- Projection / Clearance: 3" Projection with a generous 2" hand clearance.
- Material: US32D Satin Stainless Steel
- ANSI/BHMA Certified: Meets ANSI A156.6: J405 standards.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Pull Handle Overall Length | 9" |
| Center to Center Distance | 8" CTC |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Diameter | 1" |
| Door Thickness | 1-3/4" Dr Thickness |
