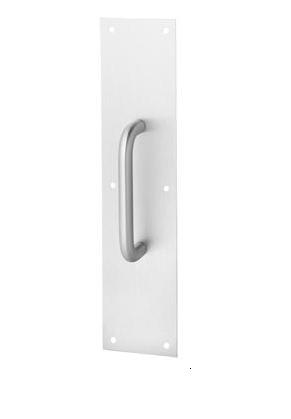

Rockwood 105 x 70C Pull Plate | 4" x 16" Satin Stainless Steel
The Rockwood 105 x 70C Pull Plate is a professional-grade architectural solution designed for maximum door protection and reliable performance. By combining a 3/4" diameter base pull with a generous 4" x 16" push plate, this unit provides an expansive shield against the wear and tear of high-traffic environments. Engineered with Type 1 thru-bolt mounting, it ensures a permanent, secure fit that won't loosen under heavy daily use.
Industrial Grade & Architectural Excellence
- Maximized Surface Protection: The oversized 4" x 16" plate covers a larger area than standard plates, making it ideal for protecting wide-stile doors in hospitals, schools, and airports.
- Durable Stainless Steel Construction: Forged from high-quality stainless steel, providing a naturally corrosion-resistant and easy-to-sanitize surface that withstands harsh industrial cleaners.
- Superior Thru-Bolt Strength: Utilizes a 1/4-20 x 2-1/4" thru-bolt system with a finish washer, creating a high-strength connection through standard 1-3/4" thick doors.
- ANSI/BHMA J405 Compliant: Fully meets ANSI A156.6 standards, guaranteeing the durability and quality required for commercial-grade building projects.
Technical Specifications
- Model: Rockwood 105 x 70C
- Plate Size: 4" Wide x 16" High (.050" thick)
- Pull Handle CTC: 5-1/2" Center-to-Center
- Pull Base Diameter: 3/4"
- Hand Clearance: 1-1/2" Standard
- Mounting: Type 1 Thru-Bolt (included)
- Note: Intended for single-side mounting. Please contact us for back-to-back mounting quotes.
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Brand | Rockwood |
| Plate Height | 16" |
| Plate Width | 4" |
| Center to Center Distance | 5-1/2" |
| Pull Handle Overall Length | 6-1/4" |
| Pulls Mounting Types | Type 1 - Thru Bolt |
| Handle Diameter | 3/4" |
| Door Thickness | 1-3/4" Dr Thickness |
