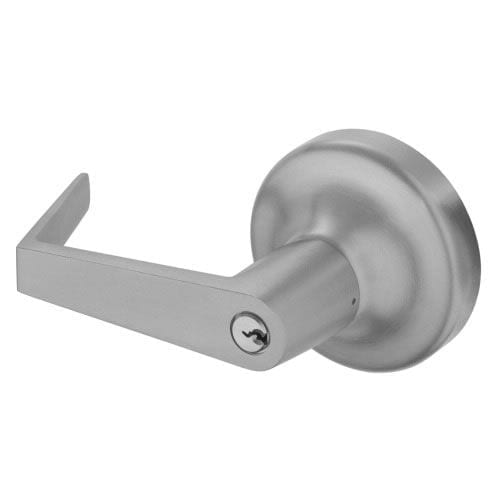

Accentra AU 441F Storeroom Function Exit Device Trim | Grade 1
The Accentra AU 441F Storeroom Function Exit Device Trim (formerly Yale) is a high-security, architectural-grade lever solution designed for the most demanding commercial environments. Engineered for openings that must remain permanently locked from the exterior, this Storeroom (ANSI 09) function trim ensures that entry is granted only by key; the lever is always rigid, and the door relocks immediately upon the removal of the key.
As a Grade 1 certified component, the 441F is built to withstand millions of cycles in high-traffic areas such as schools, hospitals, and industrial facilities. The Augusta (AU) lever style provides a clean, ergonomic, and ADA-compliant grip, while the 440F Rose Trim is specifically designed for a seamless fit on standard doors with a 161 (2-1/8" bore) preparation.
High-Security Storeroom Performance
- Always-Locked Security: The Storeroom function ensures the exterior lever never remains unlocked, providing a fail-safe security barrier for sensitive areas like data rooms or storage closets.
- Industrial Grade 1 Durability: Certified to meet ANSI/BHMA A156.3 standards, providing superior mechanical strength and longevity in high-frequency use environments.
- Versatile Cylinder Options: Furnished standard with PARA or Schlage C keyways. For facilities utilizing SFIC, the B prefix option allows the trim to accept 6-pin or 7-pin small format interchangeable cores.
- Seamless Retrofit Design: The 440F Rose is optimized for stock doors with a standard 2-1/8" bore, making it the ideal choice for quick upgrades or replacements of existing hardware.
- Heavy-Duty Construction: Features a robust internal mechanism designed for a secure through-bolted attachment to the exit device, preventing prying or mechanical failure.
- Architectural Finish Variety: Available in Satin Chrome (626), Aluminum (689), Dark Bronze (695), and Black Suede Powder (BSP) to match any building aesthetic.
Technical Specifications
| Feature | Details |
| Manufacturer | Accentra (Formerly Yale) |
| Model Number | AU 441F |
| Function | Storeroom (ANSI 09) - Key Retracts Latch |
| Trim Series | 440F Rose Trim (161 Prep / 2-1/8" Bore) |
| Grade | Grade 1 Heavy-Duty (ANSI/BHMA A156.3) |
| Lever Style | Augusta (AU) - ADA Compliant |
| Standard Keyways | PARA or Schlage C (6-Pin, 2 Keys Included) |
| Standard Door Thickness | 1-3/4" (44mm) |
| Compatibility | Accentra (Yale) 6100, 2100, and 1800 Series |
| Warranty | 2-Year Limited Warranty |
Installation & Compatibility
The Accentra AU 441F Trim is specifically engineered for perfect synergy with Accentra (Yale) 6100, 2100, and 1800 Series Exit Devices. This trim is designed for a standard 1-3/4" door thickness. If you are installing this hardware on doors up to 2-1/4" thick or using shim-mounted devices, please request a quote as these configurations require extended lead times and specialized fasteners.
| Finish with BHMA code | 689 - Painted, Aluminum or 626 - US26D Satin Chrome or 613E - US10BE Oil Rubbed Bronze Equal or BSP - Black Suede Powder Coat or 695 - Painted, Stat Dark Bronze |
| Standard Cylinders and Keyways | Yale PARA E1R Keyway or Schlage C Keyway or Best/Falcon SFIC Format - Less Core |
| Brand | Accentra (formally Yale Security) |
| Series | Accentra - 1800 Series, Accentra - 2100 Series, Accentra - 6000 Series |
| Exit Device Trim Function | Storeroom |
| Trim Design | AU - Augusta Lever |
