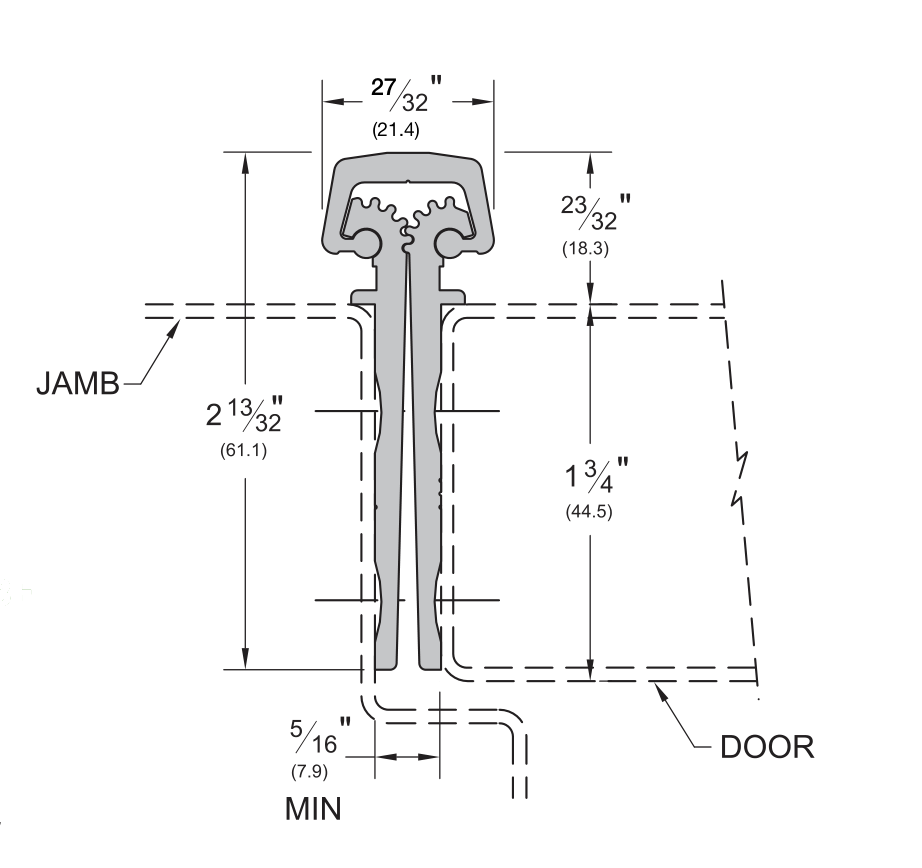

Pemko BSPFMSLF-HD1 Full Mortise Short Leaf Flush Continuous Geared Hinge -- Black Suede Powder Coat
The Pemko BSPFMSLF-HD1 is a heavy-duty Full Mortise Continuous Geared Hinge in a Black Suede Powder Coat finish, engineered for the full height of the door. This model features a short-leaf flush design that mounts flush to the door face for retrofit and narrower stile openings. Its continuous geared aluminum construction distributes door weight evenly along the entire edge, eliminating the sag and wear points of conventional butt hinges on high-frequency openings.
- Type: Full Mortise Short Leaf Flush continuous geared hinge (aluminum)
- Grade: Heavy Duty (HD1), 3 in. bearing spacing
- Finish: Black Suede Powder Coat
- Available lengths: 83 in, 95 in
- Application: Concealed, full-mortise mounting on aluminum, hollow metal, or wood doors
Available made-to-order in custom lengths up to 96 in -- contact us for a cut length between the standard sizes.
Lead time: 10 Working Days (made-to-order). Made to order -- not a stocked quick-ship item.
Documentation
| Length | 83 Inch or 95 Inch |
| Brand | Pemko |
| General - US Finishes | BSP - Black Suede Power Coat |
| Hinge Type | Full Mortise, Continuous Hinge |
| Continuous Hinge Grade | Heavy Duty |
