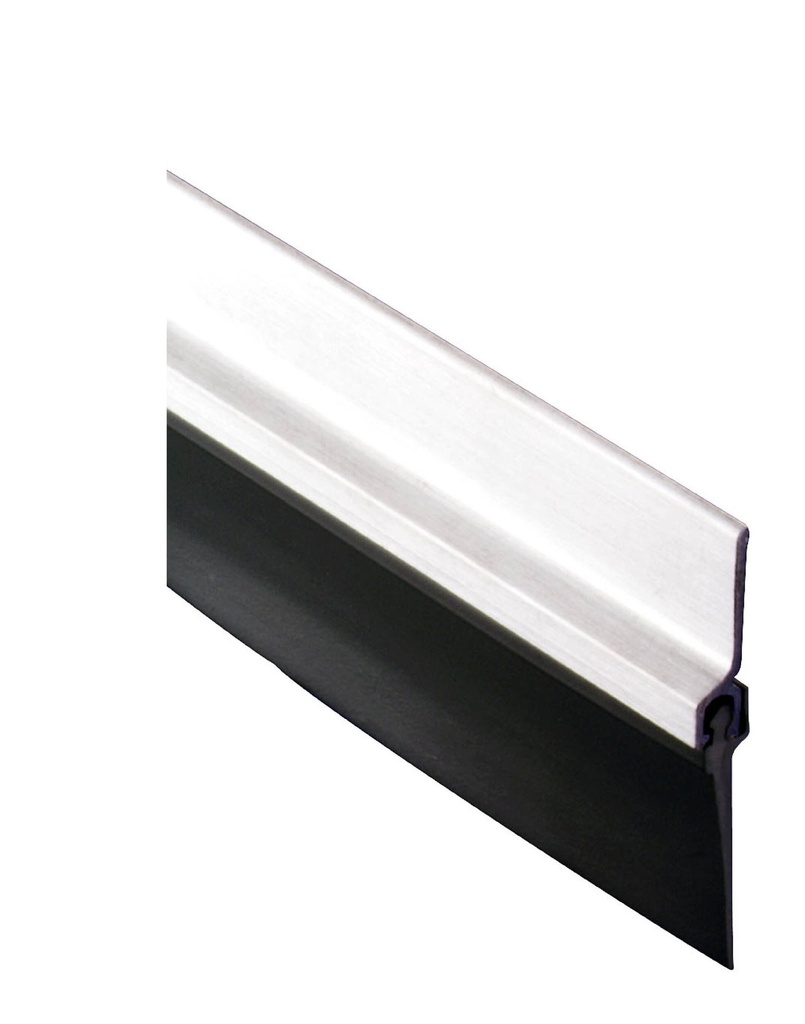

Pemko 307AV Door Bottom Sweep — 7/8" Aluminum Channel with 1" Vinyl Insert, Mill Aluminum Finish
The Pemko 307AV is a commercial-grade door bottom sweep featuring a 7/8" mill aluminum channel paired with a 1" replaceable vinyl insert. Designed for commercial door openings, the 307AV creates a tight seal along the bottom of the door, helping to reduce drafts, dust, light, insects, and sound infiltration. Sold by the foot and cut to stocked lengths, this sweep offers flexible sizing to accommodate a wide range of door widths. The vinyl insert is fully field-replaceable, allowing the aluminum retainer channel to remain in place while only the worn insert is swapped out — reducing long-term maintenance costs.
Institutional Grade Features & Benefits
- Replaceable Vinyl Insert: The 1" vinyl insert is designed for easy field replacement without removing the aluminum channel, extending the service life of the installation and lowering lifecycle costs.
- Mill Aluminum Channel: The 7/8" extruded aluminum retainer is finished in mill aluminum, offering corrosion resistance and a clean, professional appearance suited to commercial and institutional environments.
- Sold by the Foot / Cut to Length: Ordered by the foot and cut to the stocked lengths shown, making it straightforward to match standard or custom door widths without excess waste.
- Effective Bottom Seal: When properly installed, the vinyl wiper contacts the threshold or floor surface to reduce the passage of drafts, dust, light, insects, and airborne particulates under the door.
- Commercial Door Compatibility: Suitable for a broad range of commercial door openings where a surface-applied door bottom sweep is the specified solution.
- Low-Profile Channel Design: The 7/8" channel height keeps the profile compact, minimizing interference with floor coverings and threshold transitions.
Important Certification Note
The Pemko 307AV vinyl-insert model is NOT BHMA certified. Specifiers requiring BHMA-certified door bottom seals should select an alternative Pemko product with that designation. Do not specify the 307AV on projects where BHMA certification is a contract or code requirement.
Technical Details
| Feature | Details |
|---|---|
| Brand | Pemko |
| Model / Part Number | 307AV |
| Part Type | Door Bottom Sweep |
| Channel Height | 7/8" |
| Insert Width | 1" Vinyl |
| Channel Material | Aluminum |
| Finish / Color | Mill Aluminum |
| Insert Type | Replaceable Vinyl |
| Sold By | The foot; cut to stocked lengths |
| BHMA Certification | Not BHMA certified |
Documentation
| Length | 36 Inch or 48 Inch |
| Brand | Pemko |
| Material Length | 1" |
| Bottom Weatherseal Type | Door Bottom |
| Housing Length | 7/8" |
| Housing Finish | Aluminum |
| Insert Material | Vinyl |
