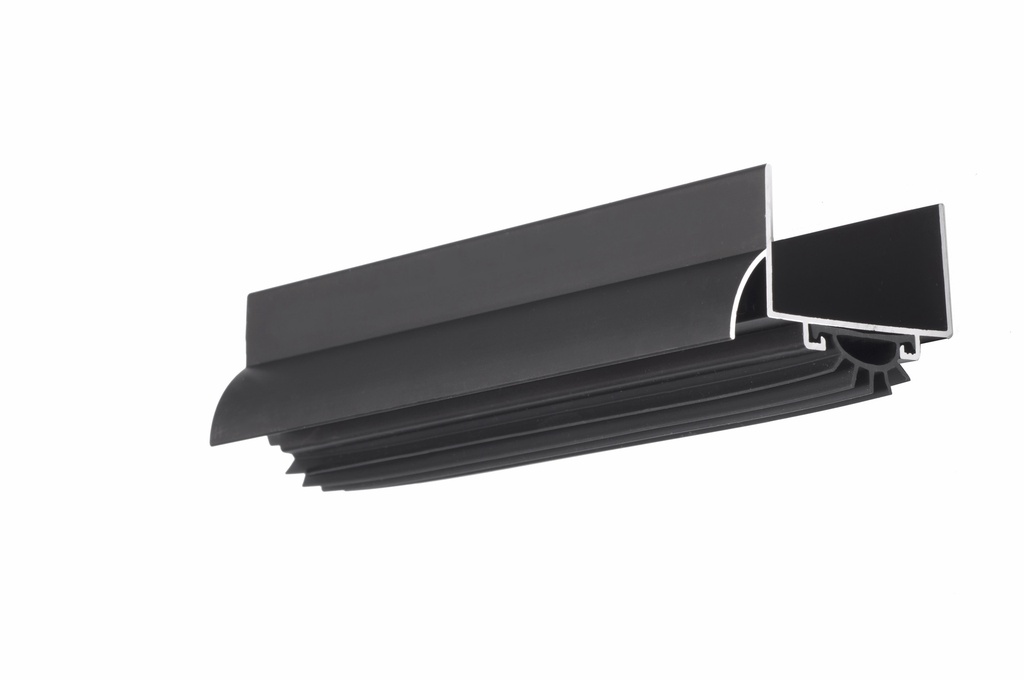

Pemko 216DV Door Bottom Shoe with Rain Drip - Dark Bronze Anodized


The Pemko 216DV is a premium Commercial Door Bottom Shoe engineered to provide a superior weather seal while protecting the base of 1-3/4" thick doors. Finished in a sophisticated Dark Bronze Anodized Aluminum, this U-channel shoe wraps the door's edge to provide structural protection without affecting the door's face appearance. It features an integrated Rain Drip flange to deflect water and a high-performance Black Eco-V Vinyl Fingered Insert to block drafts, light, and smoke.

High-Performance & Weatherproofing Features

  • Engineered for 1-3/4" Doors: Specifically sized to fit the most common commercial door thickness, ensuring a snug, professional fit.
  • Integrated Rain Drip Deflector: The exterior flange sheds heavy rain away from the door-to-floor gap, protecting the threshold and preventing interior water damage.
  • Eco-V Fingered Insert: The black vinyl insert features flexible "fingers" that create a multi-stage seal against uneven surfaces. This Eco-V material is durable and remains effective from -4° F to +122° F.
  • Life Safety Certified: Rigorously tested to meet UL 1784 smoke leakage requirements and UL 10C for positive pressure, making it a critical component for fire-rated corridor openings.
  • Health & Sustainability: GREENGUARD Gold Certified for low chemical emissions and free from phthalates, supporting LEED projects and healthy indoor air quality.

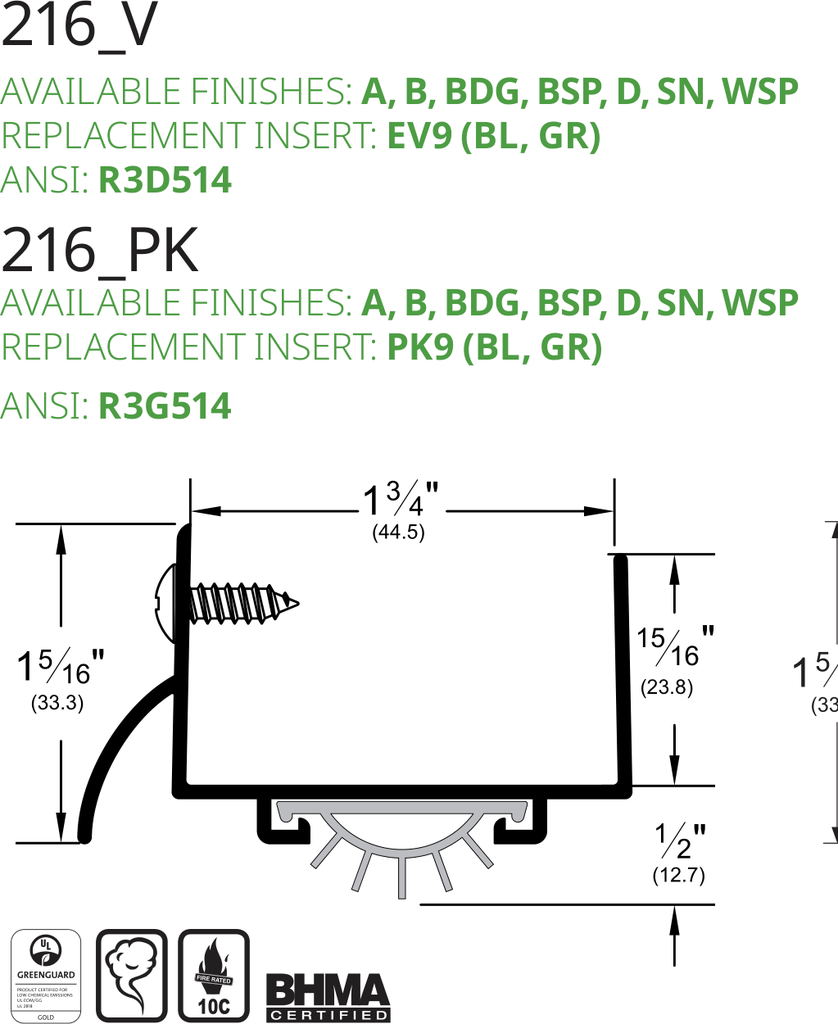

Technical Specifications

  • Manufacturer: Pemko (ASSA ABLOY)
  • Model Number: 216DV
  • Door Thickness: 1-3/4" (For 1-3/8" or 2"+ doors, see Pemko 210DV)
  • Finish: Dark Bronze Anodized Aluminum (D)
  • Insert Material: Black Eco-V Vinyl (V)
  • Required Clearance: Designed for doors with a 1/2" undercut (clearance from floor/threshold).
  • Certifications: BHMA Certified (ANSI/BHMA A156.22), UL Listed, ANSI: R3D514.
Length 36 Inch or 48 Inch
Brand Pemko
Insert Material Vinyl
Material Length 1/2"
Housing Finish Dark Bronze
Bottom Weatherseal Type Door Bottom w/ Rain Drip
Fire Rated Fire Rated
Smoke Rated Smoke Rated
Sweeps, Door Bottom or Rain Drip Door Bottom
