PDQ SD176 MEM Privacy Function Cylindrical Latchset
Function Information:
- Latchbolt operated by lever from either side or emergency release in outside lever
- Outside lever locked by push button on inside
- Outside lever unlocked by emergency release from outside, rotating inside lever, or closing door
- ANSI F76
The PDQ SD176 MEM is a commercial-grade Grade 2 Privacy Lockset designed for interior spaces where personal privacy is required, such as restrooms, changing rooms, and private offices. Featuring the modern Memphis (MEM) lever style, this lockset provides a sleek, "returned-to-door" aesthetic that is fully ADA Compliant and prevents clothing from snagging during use.
As a Privacy Function (ANSI F76) lock, the SD176 offers a simple push-button locking mechanism on the interior. For safety and liability management, the exterior lever includes an emergency release access point, allowing staff to unlock the door from the outside using a small tool or screwdriver in the event of an emergency.
Reliable Privacy with Auto-Release Safety
The PDQ SD176 is built to ensure a seamless user experience while maintaining strict safety standards:
- Push-Button Locking: The user simply presses the button on the inside lever to secure the door.
- Three-Way Unlocking: The lock automatically disengages by rotating the inside lever, closing the door, or using the exterior emergency release.
- Non-Keyed Security: Ideal for non-secure areas where privacy is needed but keyed access is not required, reducing the cost and complexity of key management.
Technical Specifications
| Feature | Details |
| Model | PDQ SD176 MEM |
| Function | Privacy (ANSI F76) |
| Grade | Certified ANSI/BHMA A156.2, Grade 2 |

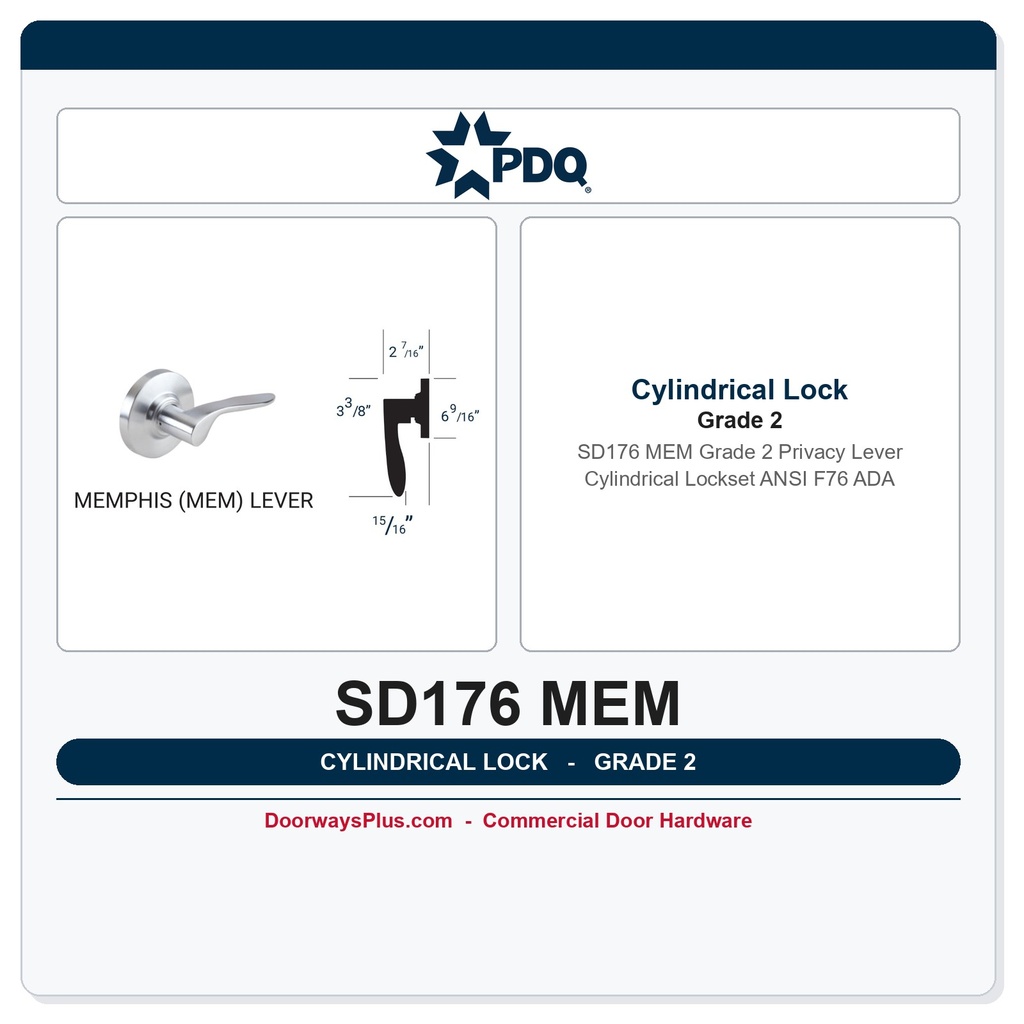

| Lever Style | Memphis (MEM) |
| Backset | 2-3/4" (Commercial Standard) |
| Strike | 4-7/8" ASA Strike |
| Latch | 1/2" Throw Latchbolt |
| Door Thickness | Fits 1-3/8" to 1-3/4" |
| Chassis | Cylindrical, Zinc Dichromated Steel |
Why Choose the PDQ SD Series from Doorways Plus?
At DoorwaysPlus.com, we recommend the PDQ SD Series for professional environments that demand long-term reliability. The SD176 is engineered with a heavy-duty cylindrical chassis and zinc-dichromated steel components, offering superior corrosion resistance and internal strength.
- Accessibility Standards: The MEM lever meets all ADA requirements for easy operation without the need for tight grasping or twisting.
- Simplified Maintenance: The automatic "unlock on close" feature prevents accidental lockouts and reduces wear on the internal latch components.
- Universal Retrofit: With a standard 2-3/4" backset and 4-7/8" ASA strike, this lockset is a direct replacement for most commercial interior door hardware.
Handing: The Memphis (MEM) lever is handed and must be ordered for a specific door hand. Please specify LH (left hand) or RH (right hand) when ordering Lever. For the Memphis lever, handing is about which way the lever curves relative to the hinge: LH = LHR and RH = RHR (the lever curves up toward the hinge, not down)
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 622 - US19 Flat Black |
| Door Handing | LH or RH |
| Brand | PDQ |
| Backset | 2-3/4" Backset |
| ANSI Cyl Lock Function | F76 - Privacy |
| Trim Design | MEM |
| Series | PDQ - SD Series |
| Occupancy Indicator | No |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
