PDQ SD115 MIA Storeroom Function Cylindrical Lockset
Function Information:
- Latchbolt operated by inside lever or key in outside lever.
- Outside lever always fixed
- Deadlocking (guarded) latchbolt
- ANSI F86
The PDQ SD115 MIA is a heavy-duty Grade 2 Cylindrical Lockset designed for high-security commercial applications where restricted access is a priority. Featuring the Miami (MIA) lever style, this lockset combines a sleek, modern aesthetic with the rugged durability required for office buildings, utility closets, and multi-family housing.
As a Storeroom Function (ANSI F86) lock, the SD115 ensures that the outside lever is always fixed. Access from the exterior is granted only by key, while the inside lever always allows free egress, making it the gold standard for mechanical access control in secure storage areas.
Secure Performance and Standard Fit
The PDQ SD115 is built to industry-standard dimensions, making it an ideal choice for both new construction and easy retrofitting. It comes standard with a 2-3/4" backset and a 4-7/8" ASA Strike, the most common configuration for commercial hollow metal and wood doors.
Understanding the Storeroom Function (ANSI F86)
The PDQ SD115 is specifically designed for areas that must remain locked to the public at all times:
- Outside Operation: The lever is always rigid/locked. Access is only possible via key. The key can be removed only after the door is re-secured.
- Inside Operation: The inside lever always allows for immediate exit (egress), ensuring compliance with life-safety codes.
- Best Use Cases: Mechanical rooms, janitor closets, IT server rooms, and primary storerooms.
Technical Specifications
| Feature | Details |
| Model | PDQ SD115 MIA |
| Function | Storeroom (ANSI F86) |
| Grade | Certified ANSI/BHMA A156.2, Grade 2 |

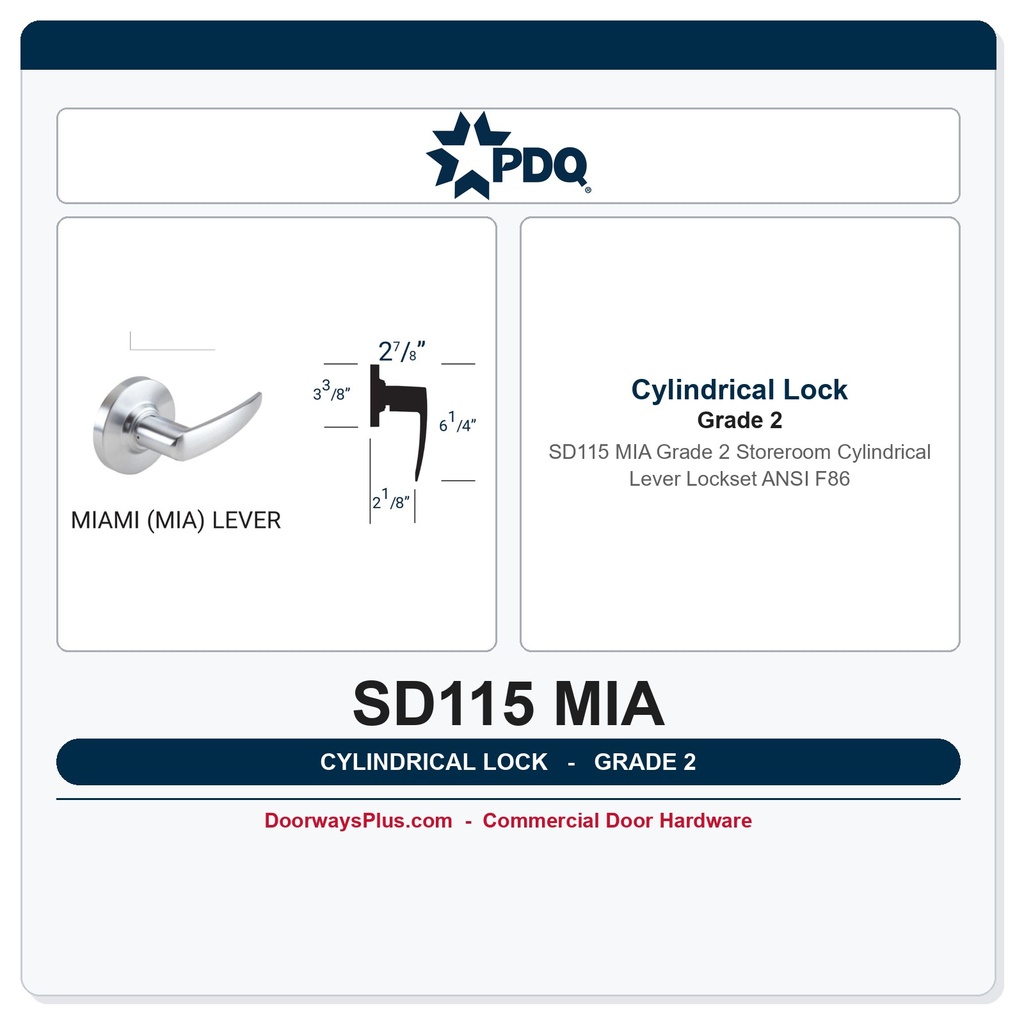

| Lever Style | Miami (MIA) |
| Backset | 2-3/4" (Standard Commercial) |
| Strike | 4-7/8" ASA Strike |
| Latch | Deadlocking (Guarded) Latchbolt |
| Door Thickness | Fits 1-3/8" to 1-3/4" |
| Chassis | Cylindrical, Zinc Dichromated Steel |
Why Choose the PDQ SD Series from Doorways Plus?
At DoorwaysPlus.com, we recommend the PDQ SD Series for projects that demand Grade 1 feel at a Grade 2 price point. The MIA lever is ADA Compliant, featuring a returned-to-door design that prevents catching on clothing or equipment. With a high-quality cylindrical chassis, this lockset is engineered to withstand hundreds of thousands of cycles without sagging or failure.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 622 - US19 Flat Black |
| Brand | PDQ |
| Backset | 2-3/4" Backset |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | MIA |
| Series | PDQ - SD Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
