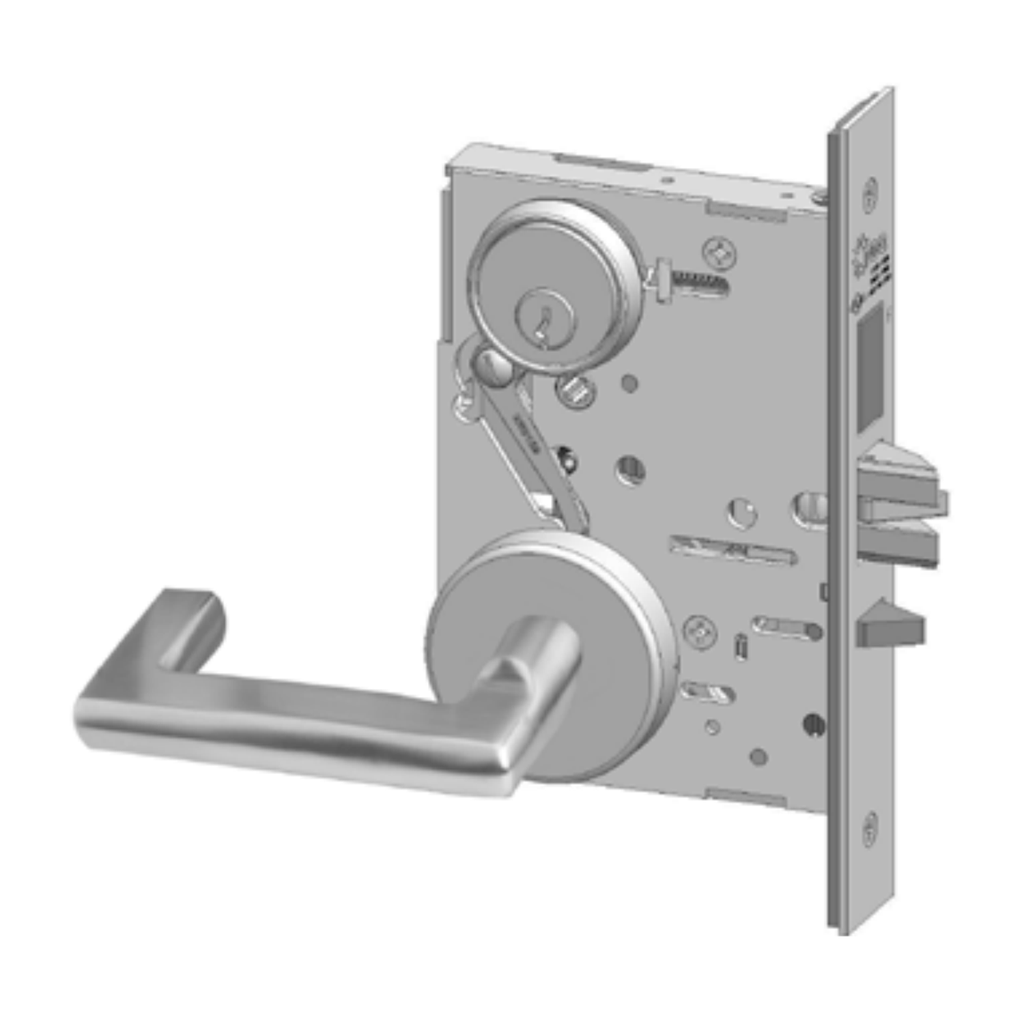

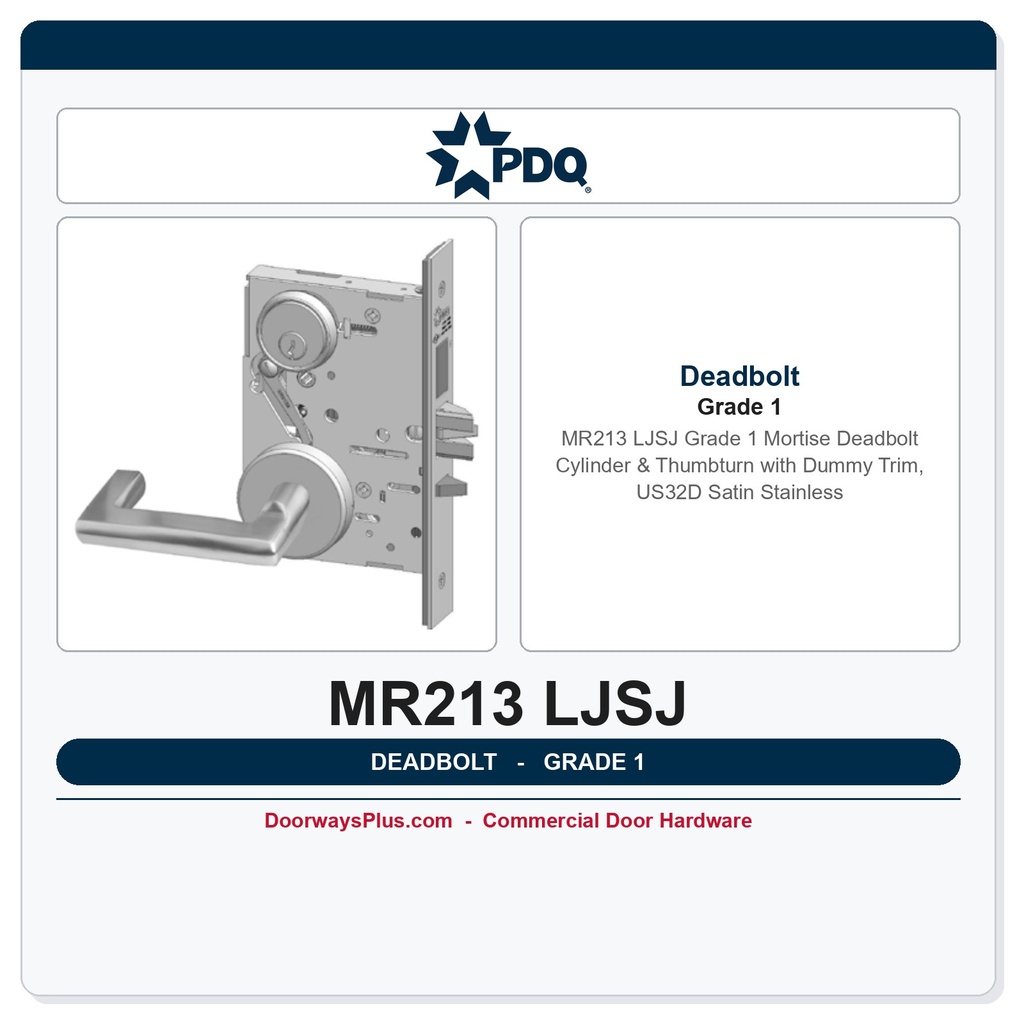

PDQ MR213 LJSJ Grade 1 Cylinder and Thumbturn Deadbolt with Dummy Trim Mortise Lock - Keyed Mortise Deadbolt, Dummy Trim
The PDQ MR213 LJSJ is an architectural-grade, Grade 1 Cylinder and Thumbturn Deadbolt with Dummy Trim Mortise Lock for demanding, high-traffic commercial and institutional openings. It pairs the Los Angeles (LJ) lever -- a straight, angular lever with a beveled end -- on a J-Series Sectional (round rose) in a US32D (630) Satin Stainless finish, and is engineered to exceed the rigorous standards of BHMA Series 1000. It is a keyed mortise deadbolt with fixed (dummy) lever trim for openings that need deadbolt security and pull-side trim but no operating latch -- with the deadbolt thrown by an outside key or inside thumbturn.
This is a dummy-trim configuration: the MR Series mortise case drives a 1" throw investment-cast stainless steel deadbolt only -- there is no latchbolt. The lever trim is fixed (non-latching) and provides pull-side trim; the inside lever rotates to retract the deadbolt for egress. Security is provided entirely by the keyed mortise deadbolt seated deep in the door pocket.
Function: Cylinder and Thumbturn Deadbolt with Dummy Trim
The Cylinder and Thumbturn Deadbolt with Dummy Trim controls a mortise deadbolt by key outside and thumbturn inside, with the fixed lever providing pull-side trim and inside-lever egress:
- Key outside extends/retracts deadbolt.
- Thumbturn inside extends/retracts deadbolt.
- Rigid outside lever.
- Rotating inside lever retracts deadbolt.
Technical Specifications
| Feature | Details |
| Model | PDQ MR213 LJSJ (J-Series Sectional (round rose)) |
| ANSI Function | -- (Cylinder and Thumbturn Deadbolt with Dummy Trim; no ANSI code printed by PDQ) |
| ANSI/BHMA Grade | Grade 1 (Exceeds 1,000,000 Cycles) |
| Lever Design | Los Angeles (LJ) |
| Trim / Mounting | J-Series Sectional (round rose) (round rose) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Chassis | Heavy Gauge Steel, Zinc Dichromate Plated |
| Lever Trim | Fixed / Dummy (non-latching); inside lever rotates to retract the deadbolt |
| Deadbolt | 1" Throw, Investment Cast Stainless Steel |
| Cylinder | Schlage C (SCC) Keyway; Interchangeable Core (IC) options |
| Door Thickness | 1-3/4" Standard |
| Handing | Field Reversible (non-handed) |
| Warranty | Lifetime Limited Warranty |
High-Performance Solutions for Building Security
The PDQ MR Series Mortise Lock addresses the most demanding commercial infrastructure challenges:
- Maximum Forced Entry Resistance: The steel case fits deep into the door pocket, providing superior resistance against "kick-in" attacks and physical tampering versus single-point cylindrical locks.
- Keyed Mortise Deadbolt (Dummy Trim): A 1" throw investment-cast stainless steel deadbolt is the sole point of security -- there is no latchbolt. The lever trim is fixed (dummy); the inside lever rotates to retract the deadbolt for egress.
- Simplified Key Management: Provided with a Schlage C (SCC) compatible cylinder, the MR213 integrates easily into existing master key systems and supports Interchangeable Core (IC) for rapid re-keying.
- Vandal-Resistant Engineering: The trim features a break-away spindle design; extreme torque or a hammer attack breaks the spindle without compromising the internal locking mechanism.
- Architectural Integration: The Satin Stainless (US32D) base finish offers a clean, professional appearance and excellent corrosion resistance; premium finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series lockset is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Rose / Escutcheon Style | Round Rose - SJ or Square Rose - SR |
| Brand | PDQ |
| ANSI Mortise Lock Function | Deadbolt with Dummy Trim |
| Trim Design | LJSJ |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
| Standard Cylinders and Keyways | Schlage C Keyway |
