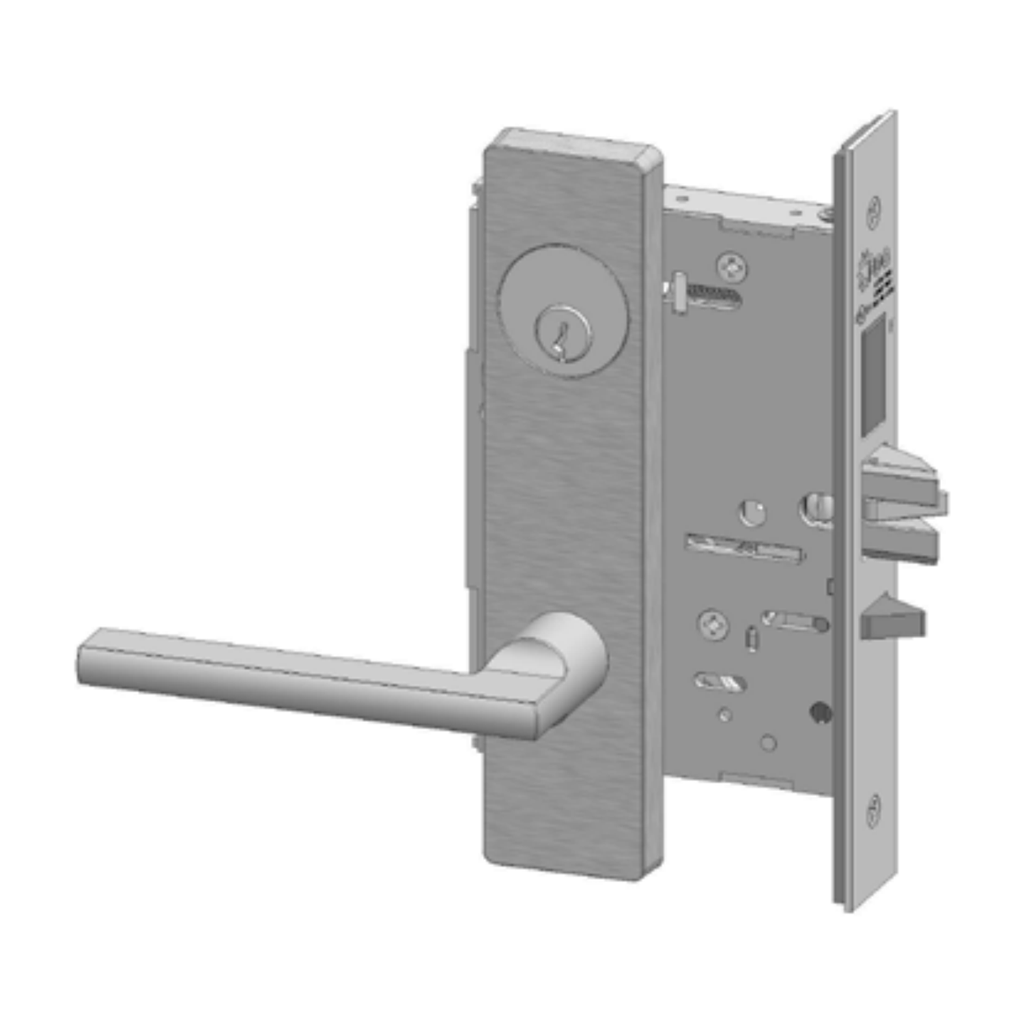

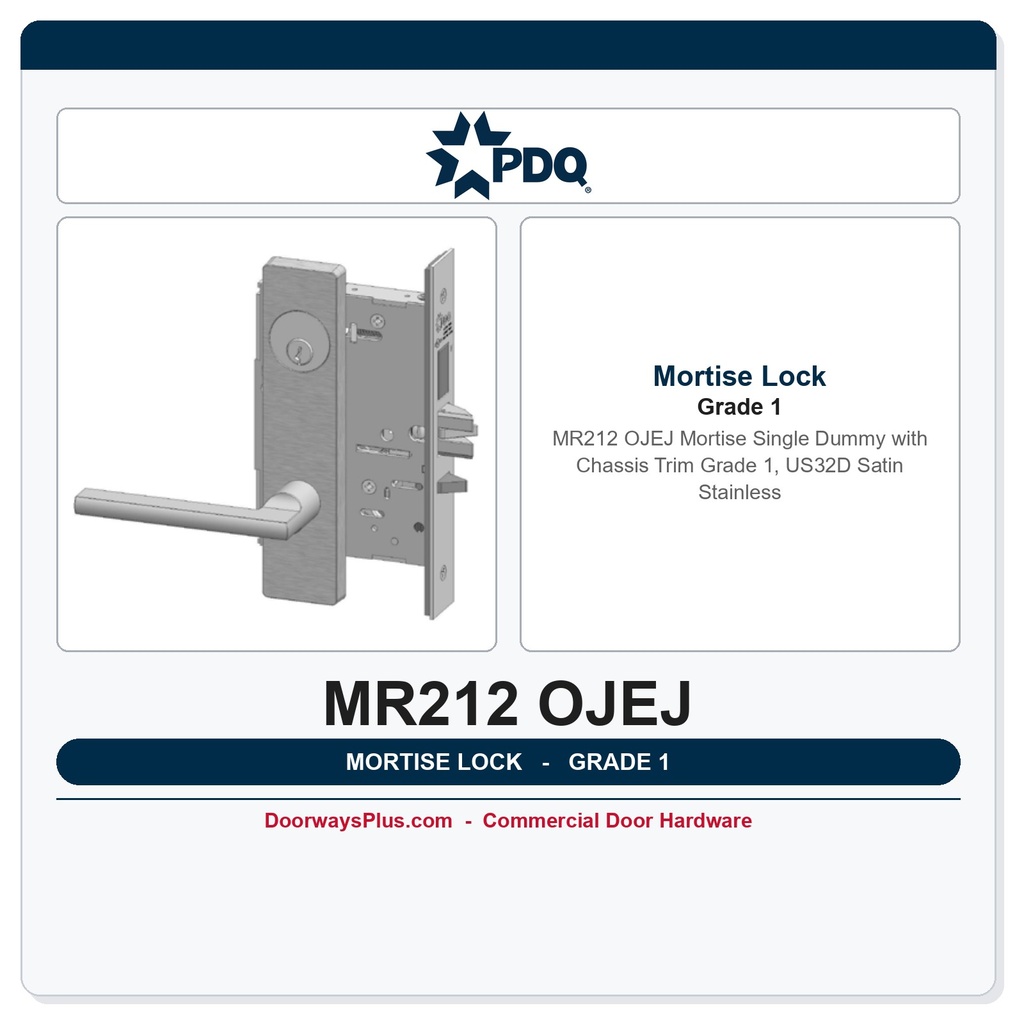

PDQ MR212 OJEJ Single Dummy with Chassis Trim - Grade 1
The PDQ MR212 OJEJ is Single Dummy with Chassis trim for the PDQ MR Series. It provides fixed, non-operating lever trim -- there is no latch, deadbolt, or operating mechanism -- for the pull side of an opening and to visually match active MR Series mortise locksets on closet doors, storage rooms, and single-side dummy applications.
This version is supplied with a mounting chassis (a backing/mounting component -- it is not an operating mechanism).
The Orlando (OJ) lever is solid forged brass with a clean, architectural aesthetic on a J-Series Escutcheon in a US32D (630) Satin Stainless finish. Its "return-to-door" design is ADA compliant and helps prevent clothing, bags, or straps from snagging on the hardware in busy corridors.
Function: Single Dummy with Chassis Trim (no ANSI code)
Single Dummy with Chassis trim mounts a fixed lever on the pull side of the door with no operating mechanism:
- Rigid outside lever.
Technical Specifications
| Feature | Details |
| Model | PDQ MR212 OJEJ (J-Series Escutcheon) |
| Function | Single Dummy with Chassis Trim (no ANSI code) |
| Trim Operation | Fixed / Non-operating (single-side dummy trim) |
| Lever Design | Orlando (OJ) |
| Trim / Mounting | J-Series Escutcheon (escutcheon) |
| Mounting | Includes mounting chassis (backing component; non-operating) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Handing | Non-handed (dummy trim; no handing required) |
| Warranty | Limited Lifetime (MR Series) |
Why the PDQ MR Series Dummy Trim
- Aesthetic Match: the same Orlando J-Series trim used on the active MR Series locksets, for a consistent look across active and inactive door leaves.
- ADA-Compliant Lever: the "return-to-door" lever design meets accessibility requirements.
- Solid Mounting: the supplied chassis provides a rattle-free, secure mounting; it is a backing component only and adds no latch or operating function.
- Solid Forged Brass: a durable forged-brass lever finished in US32D Satin Stainless; premium architectural finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series dummy trim is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Rose / Escutcheon Style | Standard Escutcheon - EJ or Wide Escutcheon - EW |
| Brand | PDQ |
| ANSI Mortise Lock Function | Dummy Trim |
| Trim Design | OJEJ |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
