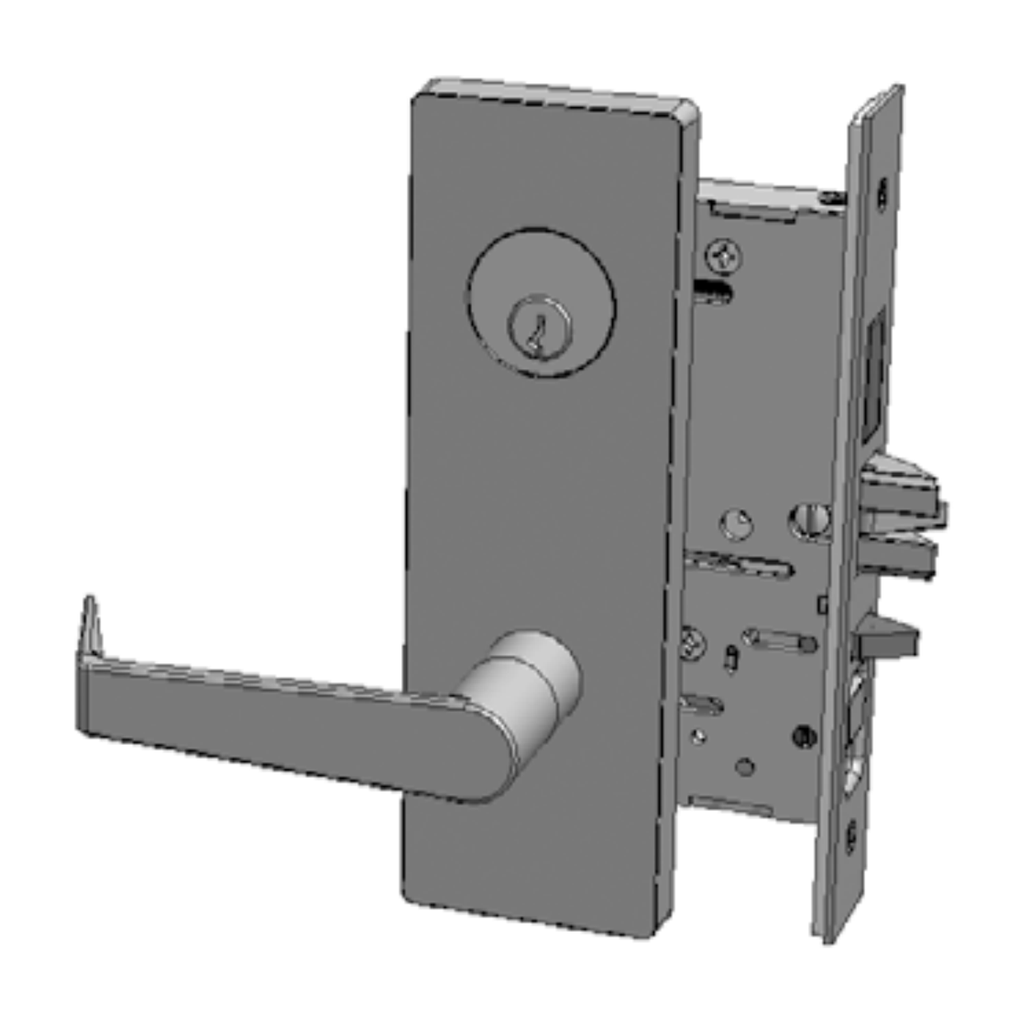

PDQ MR207 PJEW Wide Escutcheon Double Dummy with Active Trim - Grade 1
The PDQ MR207 PJEW is Double Dummy with Active Trim trim for the PDQ MR Series. It provides free-turning (active), non-operating lever trim -- there is no latch, deadbolt, or operating mechanism -- for push/pull applications and to visually match active MR Series mortise locksets on inactive door leaves, closet doors, and the inactive leaf of a pair of doors.
The Philadelphia (PJ) lever is solid forged brass with a clean, architectural aesthetic on a J-Series Wide Escutcheon in a US32D (630) Satin Stainless finish. Its "return-to-door" design is ADA compliant and helps prevent clothing, bags, or straps from snagging on the hardware in busy corridors.
Function: Double Dummy with Active Trim (no ANSI code)
Double Dummy with Active Trim mounts a free-turning (active) lever on both sides of the door with no operating mechanism:
- Movable outside lever.
- Movable inside lever.
EW Wide Escutcheon Trim
This is the EW wide-escutcheon version. The PDQ MR Series price list (effective March 3, 2025, page 13, "J Series Rose and Escutcheon Lock Adjustment") lists the J-Trim escutcheon in two widths:
- EJ -- Standard Width Escutcheon: 1-3/4" W x 7-5/8" H.
- EW -- Wide Width Escutcheon: 2-9/16" W x 8" H.
EW is listed as a lock adjustment -- an addition to the EJ list price -- so the trim, mounting and door preparation are unchanged; only the escutcheon plate is wider. PDQ publishes a single escutcheon door-prep template, W53505 Escutcheon Lever and Ball Knob Trim (MR205), which is not width-specific -- the EW uses the same door preparation as the EJ.
Technical Specifications
| Feature | Details |
| Model | PDQ MR207 PJEW (J-Series Wide Escutcheon) |
| Function | Double Dummy with Active Trim (no ANSI code) |
| Trim Operation | Free-turning / Non-latching (active dummy trim) |
| Lever Design | Philadelphia (PJ) |
| Trim / Mounting | J-Series Wide Escutcheon (wide escutcheon) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Escutcheon Size | 2-9/16" W x 8" H (EW Wide Width) |
| Handing | Non-handed (dummy trim; no handing required) |
| Warranty | Limited Lifetime (MR Series) |
Why the PDQ MR Series Dummy Trim
- Aesthetic Match: the same Philadelphia J-Series trim used on the active MR Series locksets, for a consistent look across active and inactive door leaves.
- ADA-Compliant Lever: the "return-to-door" lever design meets accessibility requirements.
- Solid Forged Brass: a durable forged-brass lever finished in US32D Satin Stainless; premium architectural finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series dummy trim is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Brand | PDQ |
| ANSI Mortise Lock Function | Dummy Trim |
| Trim Design | PJEW |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
