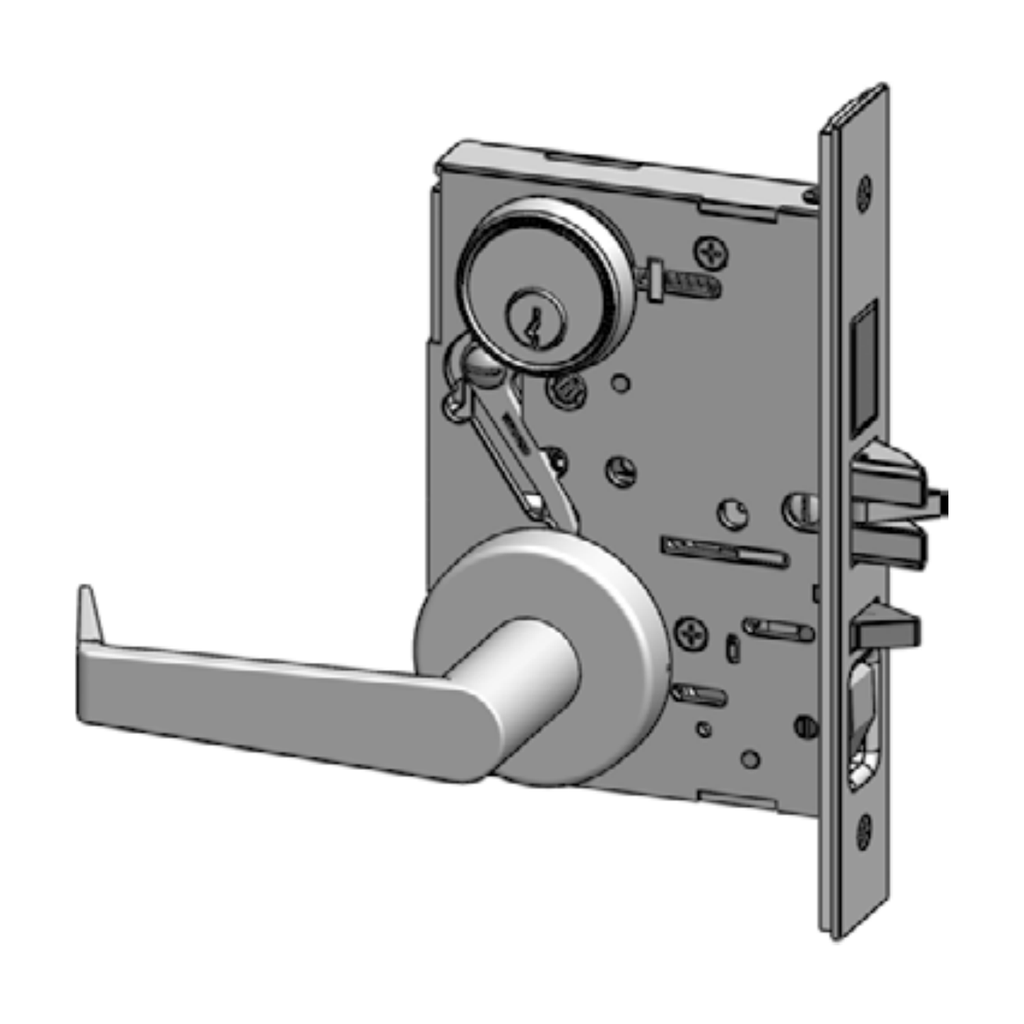

PDQ MR206 PJSJ Double Dummy with Chassis Trim - Grade 1
The PDQ MR206 PJSJ is Double Dummy with Chassis trim for the PDQ MR Series. It provides fixed, non-operating lever trim -- there is no latch, deadbolt, or operating mechanism -- for push/pull applications and to visually match active MR Series mortise locksets on inactive door leaves, closet doors, and the inactive leaf of a pair of doors.
This version is supplied with a mounting chassis (a backing/mounting component -- it is not an operating mechanism).
The Philadelphia (PJ) lever is solid forged brass with a clean, architectural aesthetic on a J-Series Sectional (round rose) in a US32D (630) Satin Stainless finish. Its "return-to-door" design is ADA compliant and helps prevent clothing, bags, or straps from snagging on the hardware in busy corridors.
Function: Double Dummy with Chassis Trim (no ANSI code)
Double Dummy with Chassis trim mounts a fixed lever on both sides of the door with no operating mechanism:
- Rigid outside lever.
- Rigid inside lever.
Technical Specifications
| Feature | Details |
| Model | PDQ MR206 PJSJ (J-Series Sectional (round rose)) |
| Function | Double Dummy with Chassis Trim (no ANSI code) |
| Trim Operation | Fixed / Non-operating (push-pull dummy trim) |
| Lever Design | Philadelphia (PJ) |
| Trim / Mounting | J-Series Sectional (round rose) (round rose) |
| Mounting | Includes mounting chassis (backing component; non-operating) |
| Base Finish | US32D (630) Satin Stainless -- 626 not offered (J-Series) |
| Handing | Non-handed (dummy trim; no handing required) |
| Warranty | Limited Lifetime (MR Series) |
Why the PDQ MR Series Dummy Trim
- Aesthetic Match: the same Philadelphia J-Series trim used on the active MR Series locksets, for a consistent look across active and inactive door leaves.
- ADA-Compliant Lever: the "return-to-door" lever design meets accessibility requirements.
- Solid Mounting: the supplied chassis provides a rattle-free, secure mounting; it is a backing component only and adds no latch or operating function.
- Solid Forged Brass: a durable forged-brass lever finished in US32D Satin Stainless; premium architectural finishes (605, 606, 612, 613E, 622, 629) are also available.
Finish availability: This J-Series dummy trim is offered in 630 (US32D Satin Stainless) as the base finish, plus premium architectural finishes 605, 606, 612, 613E, 622, 629. It is not offered in 626 (626 is an F-Series finish).
| Finish with BHMA code | 630 - US32D Satin Stainless or 613E - US10BE Oil Rubbed Bronze Equal or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 622 - US19 Flat Black or 629 - US32 Polish Stainless |
| Rose / Escutcheon Style | Round Rose - SJ or Square Rose - SR |
| Brand | PDQ |
| ANSI Mortise Lock Function | Dummy Trim |
| Trim Design | PJSJ |
| Series | PDQ - MR Series |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
