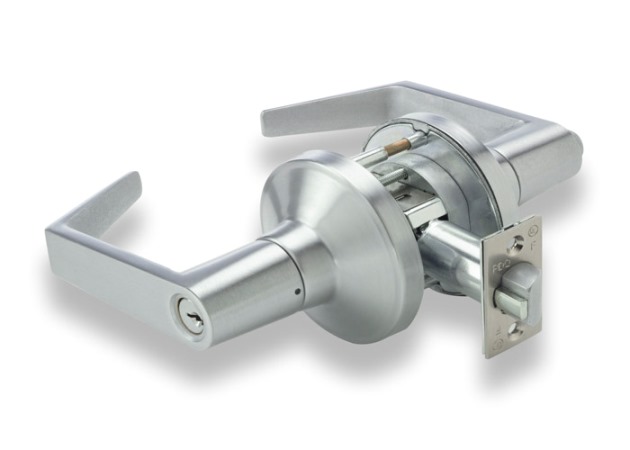

PDQ GT115 PHL Storeroom Function Cylindrical Lockset | Grade 1
Function Information:
- Latchbolt operated by inside lever or key in outside lever
- Outside lever always fixed
- ANSI F86
The PDQ GT115 PHL is the pinnacle of heavy-duty security hardware, engineered for areas where restricted access is a permanent requirement. As the flagship of the GT Series, this Grade 1 Storeroom Lockset features the solid zinc-diecast Philadelphia (PHL) lever and is designed to exceed industry standards with a massive 2100 in-lbs of torque resistance—ensuring the lock remains functional even under extreme vandal attacks.
ANSI F86 Function Summary: Absolute Exterior Security
The ANSI F86 (Storeroom) function is the industry standard for secure storage, mechanical rooms, and utility closets.
- Exterior Operation: The outside lever is always fixed and rigid. Entry is only possible by using a key to retract the latchbolt.
- Interior Operation: The inside lever is always active, allowing for immediate, uninhibited egress at all times to meet life-safety and fire codes.
- Security Logic: Because the outside lever does not turn, it cannot be forced or "wrenched" open, providing a superior level of physical security compared to standard locking office levers.
Technical Specifications
| Feature | Details |
| Model | PDQ GT115 PHL |
| Function | Storeroom (ANSI F86) |
| Certification | ANSI/BHMA Grade 1, Series 4000 |
| Torque Resistance | Exceeds 2100 in-lbs |
| Backset | 2-3/4" Only (Deadlocking) |
| Latchbolt | 9/16" Throw |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Fire Rating | UL/cUL Listed 3-Hour "A" Label |
| Windstorm Rating | Design Load Rating: 1485 lbf |
| Warranty | 25-Year Limited Warranty |
Solutions for High-Impact Institutional Environments
The PDQ GT Series is built to solve the most difficult hardware maintenance challenges in schools, hospitals, and government facilities:
- Eliminate Lever Sag: High-frequency use often leads to drooping handles. The GT Series utilizes a chromated cold-rolled steel mechanism and billet steel spindles to ensure the levers stay perfectly horizontal for the duration of its 25-year warranty.
- Vandal-Proof Engineering: With a torque resistance nearly triple the Grade 1 requirement, the GT115 is designed to survive intentional abuse and high-force attempts to bypass the lock.
- Severe Weather Protection: This is a Windstorm Resistant Product (ANSI A250.13), making it a critical component for buildings in coastal regions or areas prone to extreme weather events.
- Code Compliance: Fully compliant with ADA accessibility requirements and UL 10C Positive Pressure fire ratings. It also meets the Buy American Act, making it the primary choice for federal and municipal contracts.
- Easy Retrofit: Designed to fit Standard 161 Door Prep with through-door thru-bolting for a rigid, secure installation that won't loosen under vibration or heavy use.
Lead Time Note: The US26D (Satin Chrome) finish is typically available for immediate shipment. For all other premium architectural finishes, please allow a 3-5 day lead time plus shipping.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | PHL |
| Series | PDQ - GT Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
