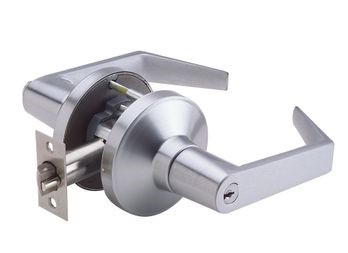

PDQ GP148 PHL Classroom Function Cylindrical Lockset
Function Information:
- Latchbolt operated by lever from either side
- Outside lever locked by key from outside
- Outside lever unlocked by key from outside
- Inside lever always operates latch
- ANSI F84
The PDQ GP148 PHL is an institutional-grade Grade 2 Classroom Lockset engineered for high-security environments where life safety and controlled access are paramount. Featuring the modern Philadelphia (PHL) solid zinc diecast lever, the GP Series is a robust "over-built" Grade 2 solution, offering an incredible 1,600 in-lbs of torque resistance—nearly double the requirement for standard Grade 2 locks.
As a Classroom Function (ANSI F84) lock, the GP148 ensures that security is managed exclusively by authorized key holders. The outside lever can be locked or unlocked via a key from the exterior, while the inside lever always remains active for immediate egress, ensuring total compliance with school safety protocols and fire codes.
Engineered for Institutional Safety & Strength
The PDQ GP Series is more than a standard lever lock; it is a Windstorm Resistant Product listed to withstand design loads of 685 lbf. Assembled in the U.S.A., this lockset meets the rigorous standards of the Buy American Act, making it the ideal choice for public schools, municipal buildings, and federal projects.
Technical Specifications
| Feature | Details |
| Model | PDQ GP148 PHL |
| Function | Classroom (ANSI F84) |
| Torque Resistance | Exceeds 1,600 in-lbs |
| Backset | 2-3/4" Standard (2-3/8" or 5" optional) |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Fire Rating | UL/cUL Listed 3-Hour "A" Label |
| Lever Style | Philadelphia (PHL) - ADA Compliant |
| Warranty | 8-Year Limited Warranty |
| Compliance | Buy American Act; Windstorm Resistant; ANSI A250.13 |
Key Performance Benefits
- Classroom Security Logic: Latchbolt is operated by either lever unless the outside lever is locked by a key. Once locked, the outside lever is rigid, but the inside lever always operates the latch for safe, uninhibited egress.
- Superior Durability: Constructed with a heavy-duty zinc diecast and stainless steel mechanism for long-term reliability in high-traffic hallways.
- Standard Fit: Designed for the Standard 161 Door Prep with through-door thru-bolting to prevent the chassis from twisting or loosening under heavy use.
- ADA Accessibility: The PHL lever features a 65° rotation, ensuring ease of use for all individuals without the need for tight grasping or twisting of the wrist.
Shipping Note: Please allow 2-3 days lead time (plus shipping) for all architectural finishes. The US26D Satin Chrome finish is typically stocked for immediate shipment.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F84 - Classroom |
| Trim Design | PHL |
| Series | PDQ - GP Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
