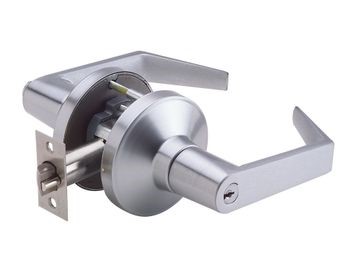

PDQ GP116 PHL Office Lever Lockset

https://www.doorwaysplus.com/web/image/product.template/649/image_1920?unique=f119a64

PDQ GP116 PHL Office Entry Cylindrical Lockset, Series 4000, Grade 2, ANSI F109, Windstorm Certified

195.39 195.39000000000001 USD 195.39

195.39

Not Available For Sale


  • Finish with BHMA code
  • Brand
  • ANSI Cyl Lock Function
  • Trim Design
  • Series

This combination does not exist.


Share :

PDQ GP116 PHL Office Entry Function Cylindrical Lockset

Series 4000 Grade 2 with 2-3/4" Backset, 4-7/8" ASA Strike

Function Information:

  • Latchbolt operated by lever from either side or key in outside lever Outside lever locked by push/turn button on inside
  • When outside lever is locked by push button on inside – key from outside, or rotating inside lever unlocks outside lever
  • When outside lever is locked by pushing and turning the button on the inside, key from outside or rotating inside lever retracts latch but does not unlock outside lever
  • Deadlocking (guarded) latchbolt
  • ANSI F109

 Note: Please allow 3-5 days lead time (plus shipping) for all finishes except US26D - Satin Chrome



PDQ GP Series Specifications:

For Doors:1-3/8" to 1-3/4" thick. Factory adjusted for 1-3/4".
Door Prep:Fits standard 161 door prep. Through-door thru-bolting.
Backset:2-3/4", 2-3/8", 5".
Case:Heavy duty zinc diecast, investment cast and stainless steel mechanism.
Front:Stainless steel or wrought brass. 2-1/4" x 1-1/8". Beveled 1/8" on 2".
Rose:3-3/8" diameter
Strike:4-7/8" x 1-1/4" (ASA). “T” or “FL” Strike optional. Stainless steel or wrought brass
Latchbolt:1/2" throw. Adjustable front for flat or beveled doors.
Hand:Non-handed.
Trim:PHL, BSN or MIA levers are solid zinc diecast. 65° lever rotation. Wrought brass roses. Concealed screws. Levers are also available for Large Format IC Core. Contact Customer service for more information.
Keys:Two (2) change keys per lock.
Keyways:Available in Keyways of most major manufacturers.
Interchangeable Core:Available for all keyed functions. 6 or 7 pin.
Cylinder:Brass 6-pin cylinder keyed to 5 pins.
Keying:Can be MK, CMK, GMK. Available Zero Bitted (K0), Keyed Different (KD), Keyed Alike (KA). Can be keyed into existing masterkey systems of other manufacturers.
Finishes:US3(605), US4(606), US10(612), US10B(613), US26(625), US26D(626).
Certifications:BHMA Certified Product ANSI/BHMA A156.2-2003, Series 4000, Grade 2. Windstorm Resistant Product Listed - ANSI A250.13-2003, ASTM E1886-02, ASTM E330-02, Outswing: 350 ft-lbs., Inswing: N/R, Design Load Rating: 685 lbf. Meets all accessibility requirements of the ADA. U.L./U.L.C. Listed for “A” label (3 hour) single swing doors (4'0" x 8'0"). U.L. 10C/UBC 7-2 (1997) Positive Pressure Rated. U.L. 10B Neutral Pressure Rated. Exceeds 1600 in. lbs. of torque resistance. Certification through ETL
Warranty:Eight-year limited warranty.
Country of Origin:Assembled in the U.S.A. with U.S. and foreign material. Meets the requirements of the Buy American Act.

Cross Reference for other brands of Locksets

Do you require Special Keying Services?

DoorwaysPlus Finishes Guide


Finish with BHMA code 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome
Brand PDQ
ANSI Cyl Lock Function F81 - Office Entrance
Trim Design PHL
Series PDQ - GP Series
