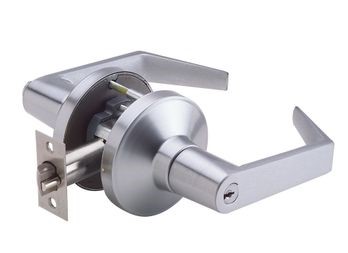

PDQ GP115 PHL Storeroom Function Cylindrical Lockset
Function Information:
- Latchbolt operated by inside lever or key in outside lever.
- Outside lever always fixed
- Deadlocking (guarded) latchbolt
- ANSI F86
The PDQ GP115 PHL is a premier Grade 2 Cylindrical Lockset engineered for high-security commercial environments where controlled access is mandatory. Featuring the sleek Philadelphia (PHL) lever style, the GP Series is a "step-up" Grade 2 lock, offering 1600 in-lbs of torque resistance and a heavy-duty zinc diecast mechanism.
As a Storeroom Function (ANSI F86) lock, it is designed for maximum security: the outside lever is always fixed and rigid. Entry is only granted via key, while the inside lever allows for constant free egress, ensuring compliance with life-safety codes.
Engineered for Extreme Performance
The PDQ GP Series isn't just a standard lock; it is a Windstorm Resistant Product listed to withstand design loads of 685 lbf. Whether you are securing a utility room, a server closet, or a primary warehouse entrance, the GP115 provides a UL Listed 3-hour fire rating and meets the strict requirements of the Buy American Act.
Technical Specifications
| Feature | Details |
| Model | PDQ GP115 PHL |
| Function | Storeroom (ANSI F86) |
| Backset | 2-3/4" Standard (2-3/8" and 5" available) |
| Strike | 4-7/8" x 1-1/4" ASA Strike |
| Lever Style | Philadelphia (PHL) Solid Zinc Diecast |
| Security | Deadlocking (Guarded) Latchbolt; 1/2" Throw |
| Ratings | UL 3-Hour Fire Rated; Windstorm Resistant |
| Door Thickness | 1-3/8" to 1-3/4" (Fits Standard 161 Prep) |
| Warranty | 8-Year Limited Warranty |
Key Features & Maintenance Notes
- Always Secure: Latchbolt is operated by key from the outside or by the lever from the inside. The outside lever remains fixed at all times to prevent unauthorized entry.
- ADA Compliant: The PHL lever design features a 65° rotation, meeting all accessibility requirements for ease of use.
- Quality Construction: Assembled in the U.S.A. with a heavy-duty stainless steel mechanism and concealed screws for a clean, tamper-resistant finish.
- Lead Time Disclaimer: Please allow for a 3-5 day lead time (plus shipping) for all finishes except US26D (Satin Chrome), which is typically in stock for immediate shipment.
| Finish with BHMA code | 626 - US26D Satin Chrome or 613 - US10B Oil Rubbed Bronze or 605 - US3 Polish Brass or 606 - US4 Satin Brass or 612 - US10 Satin Bronze or 625 - US26 Polish Chrome |
| Brand | PDQ |
| Standard Cylinders and Keyways | Schlage C Keyway |
| ANSI Cyl Lock Function | F86 - Storeroom |
| Trim Design | PHL |
| Series | PDQ - GP Series |
| Backset | 2-3/4" Backset |
| Strike Type | 4-7/8 ANSI Strike - Hollow Metal Frames |
