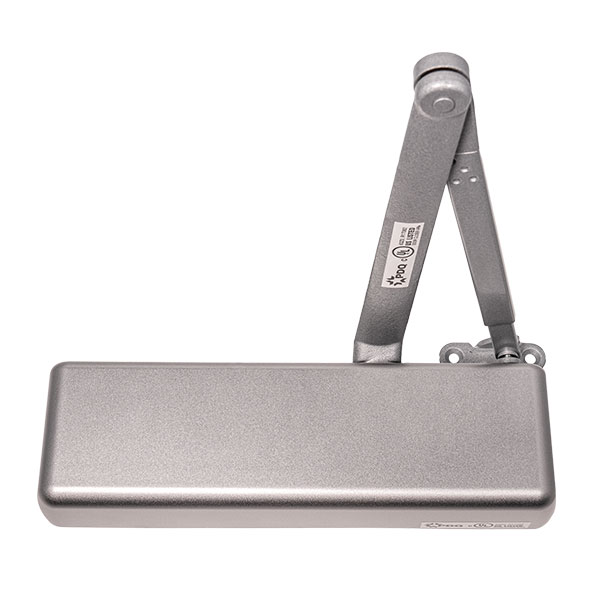

The PDQ 7101 is a Grade 1, heavy-duty cast-iron surface door closer. This listing is the BC (backcheck) tri-pack: one closer with the arms and brackets for regular arm, parallel arm, and top jamb mounting.
Mounting options (tri-pack)
- Regular arm — closer body on the pull side; arm projects toward the hinge jamb.
- Parallel arm — closer body on the push side; arm runs parallel to the door face. Common on glazed openings and where a push-side body is preferred.
- Top jamb — closer body on the frame face (usually pull-side soffit); arm reaches down to the door. Distinct from parallel arm — do not treat them as the same mount.
Backcheck (BC)
Backcheck adds hydraulic resistance as the door opens past about 70–75°, cushioning wind and abuse so the door, frame, and arm are less likely to slam open.
Same-hole replacement for the LCN 4040 pattern
The PDQ 7101 uses the 1"/3"/1" × 2-1/4" closer-body hole pattern (LCN 4040). It replaces an LCN 4040 / 4040XP / 4041 on the same holes with no new drilling when that pattern is already in the door.
Specifications
| Feature | Details |
|---|---|
| Model | PDQ 7101 (BC tri-pack) |
| Body | Cast iron |
| Grade | ANSI/BHMA A156.4 Grade 1 |
| Spring | Adjustable sizes 1–6 (ADA capable at size 1) |
| Valves | Sweep, latch, and backcheck |
| Fire listing | UL/cUL listed for fire doors (confirm the opening’s listing) |
| Hole pattern | 1"/3"/1" × 2-1/4" (LCN 4040) — same-hole replacement |
| Mounts included | Regular, parallel arm, top jamb (tri-pack) |
Finishes typically stocked: 689 aluminum, 693 black, 695 dark bronze, 696 gold. Self-drilling screws and thru-bolts are included for wood or metal doors.
| General - US Finishes | 689 - Spray Alumimun or 693 - Spray Black or 695 - Spray Dark Bronze or 696 - Spray Gold |
| Brand | PDQ |
| Closer Arm Type | Tri Pack - Reg/Par Arm |
| Series | PDQ - 7100 Series |
| Hold Open | Non-Hold Open |
| Closer Body Hole Pattern | 1"/3"/1" x 2 1/4" (LCN 4040) |
