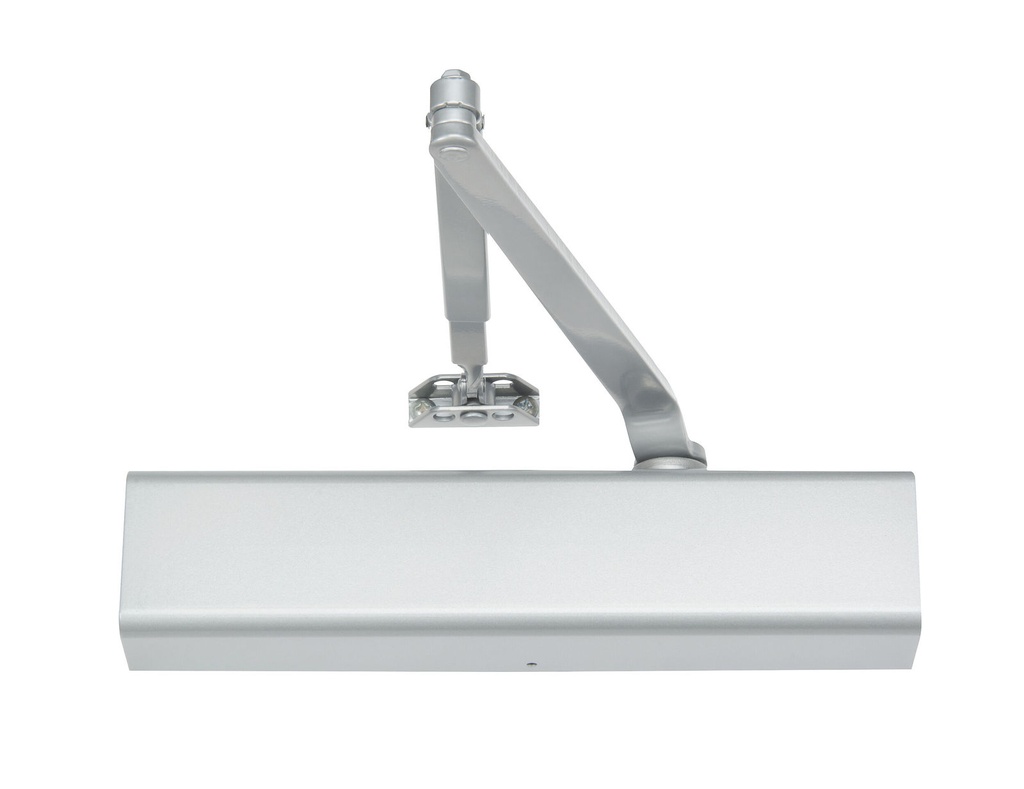

Norton 8501 Surface Door Closer | Full Cover | Tri-Pack Sizes 1-6

The Norton 8501 is the full-cover model in the 8000 Series architectural door closer line. The 2026 catalog describes the 8000 Series as a multi-sized surface closer with a complete range of arms and a sleek, minimal design for moderate- to high-traffic architectural openings.

The 8000 Series body is cast aluminum with rack-and-pinion operation and is non-handed except where an option requires a hand. The 2026 feature list prints a 1-1/4 inch (32 mm) diameter piston, 5/8 inch pinion journals, 2-1/8 inch (54 mm) projection with standard covers, and a 250 lb door-weight rating. Spring power is adjustable through sizes 1 through 6 as outlined in ANSI/BHMA A156.4 option PT 4H. Separate latch, sweep, and backcheck intensity valves are standard and staked. NorGlide fluid is specified to -40 F. Standard molded covers are high-impact UL-listed material.

8501 is the full cover; 8301 is the slim cover. Prefix-none 8501 is Tri-Style packaging for regular, top jamb, and parallel mounting. This listing is offered in 689, 690, BSP.

The 2026 8000 pages discuss spring power and ADA / A117.1 opening force for interior doors. This page does not add an A156.4 Grade number the 8501 feature list did not print.

Institutional Grade Features & Benefits

• Full cover 8501: architectural cover versus the 8301 slim line.
• Tri-Style carton: regular, top jamb, and parallel plates and screws (prefix-none / H / CLP as listed).
• 1-1/4 inch piston in a cast aluminum rack-and-pinion body.
• Sizes 1-6 per ANSI/BHMA A156.4 option PT 4H.
• ADA / A117.1 opening-force discussion for interior doors (2026 catalog).
• Independent valves: latch, sweep, and backcheck; backcheck begins at about 75 degrees.
• NorGlide fluid rated to -40 F.
• 30-year limited warranty for defects and life of the building on the aluminum housing.
• 180 degree swing on standard arm applications with slim, full, or metal covers, conditions permitting.
• Full-size template in the carton.

Technical Details

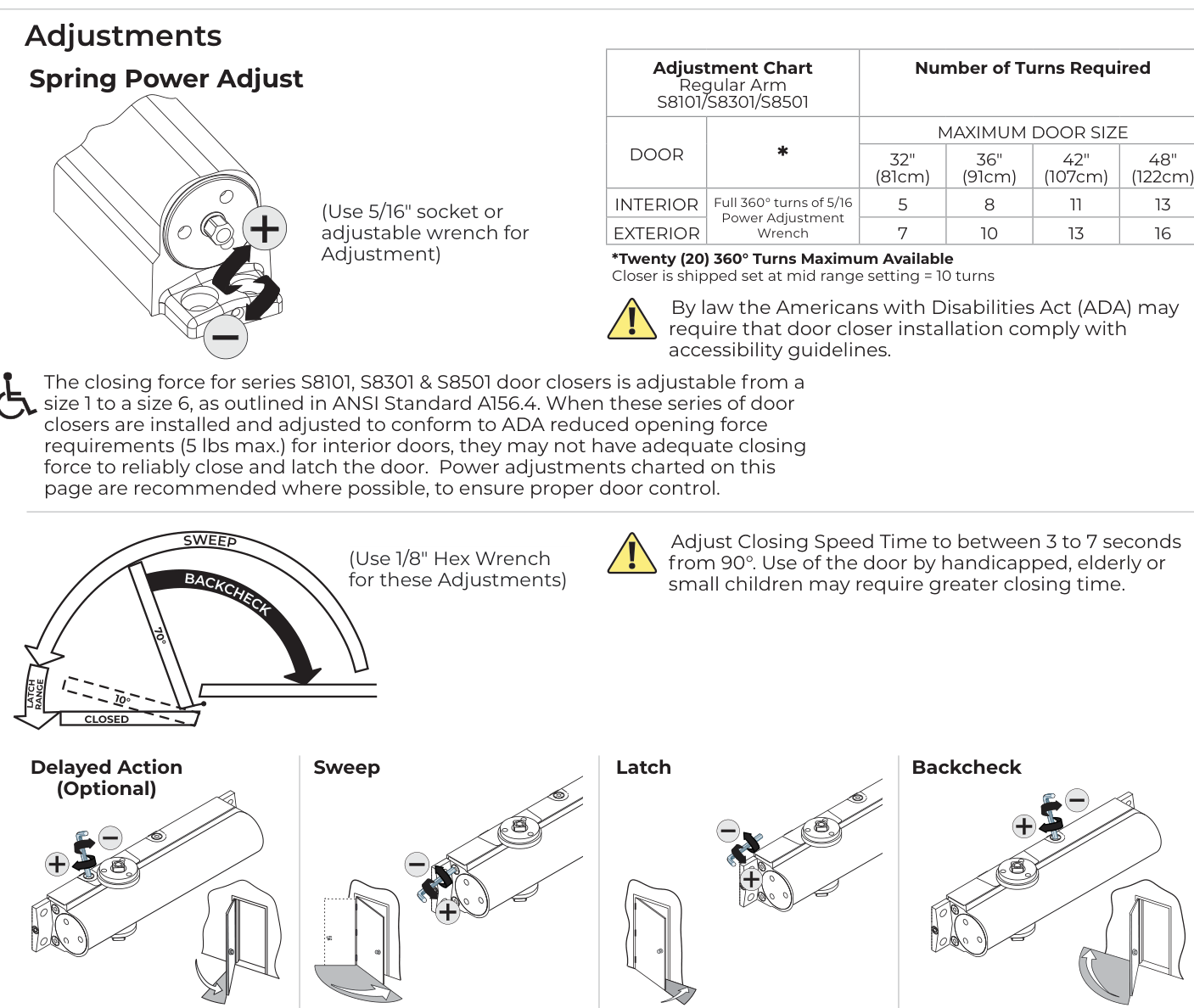

Closer Adjustments

Use the hex wrench supplied with the closer. Never force valves out of the closer. Never completely close the backcheck valve. The door must be open to adjust spring power. Do not use a power drill -- that voids the warranty. Do not remove the valves; removal causes a fluid leak.

Professional Installation & Compatibility

Install on the interior side of the building to keep the warranty. Verify accessibility, fire, and life-safety rules with the AHJ, including mounting height and projection into the clear opening. Consult NFPA 80 for hinge requirements on a fire door. Failure to use the fasteners supplied with the closer may void the factory warranty. Sizing charts assume a 1-3/4 in x 7 ft standard-weight door to 110 degrees. Adjusting spring power to ADA / A117.1 low opening force may not latch the door under wind or stack pressure.

Ordering and Lead Time

Lead time: 1 Business Day. Other arms, finishes, or options may be factory order.
