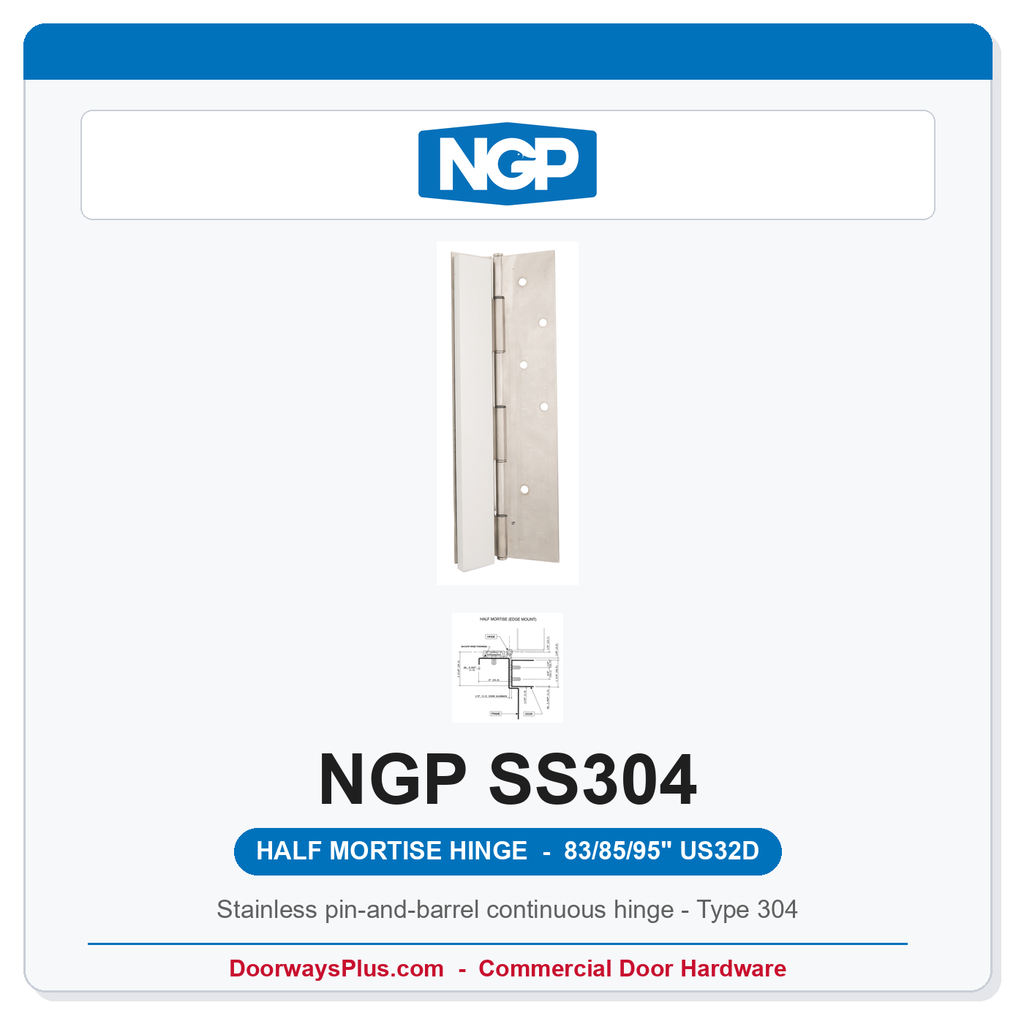

NGP SS304 Half Mortise Pin-and-Barrel Hinge | US32D
The National Guard Products SS304 is a Half mortise pin-and-barrel continuous hinge. Mount: half mortise for 1-3/4 inch doors. This listing is US32D (630) brushed. Standard lengths on this listing: 83, 85, and 95 inch. This is not an aluminum geared hinge.
Product Features
- Heavy duty 14 gauge type 304 stainless steel
- Pin and barrel design
- Stainless steel hinge pins
- Medical type self-lubricating flanged bearings between each 2" knuckle provide dust-free quiet and smooth operation
- For doors weighing up to 600 lbs.
- 25 year warranty
- #1/4-20 x 3/4" TEK screws for metal frames
- #10 x 1/2" TEK screws for metal doors
- #10 x 1" wood screws for wood doors
- US32D (630) brushed finish
- Standard lengths on this listing: 83, 85, and 95 inch
- Note: For Door Sizing Refer to Installation Instruction
Standards
- Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4 ft 0 in x 10 ft 0 in per leaf single or pairs.
- ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 150 lb. door.
- Factory states the rating; no UL file number is printed.
Technical Details
| Manufacturer | National Guard Products |
| Model | NGP SS304 |
| Factory subtitle | Stainless Steel Continuous Hinge Half Mortise, for 1-3/4" Doors |
| Type | Half mortise pin-and-barrel continuous hinge |

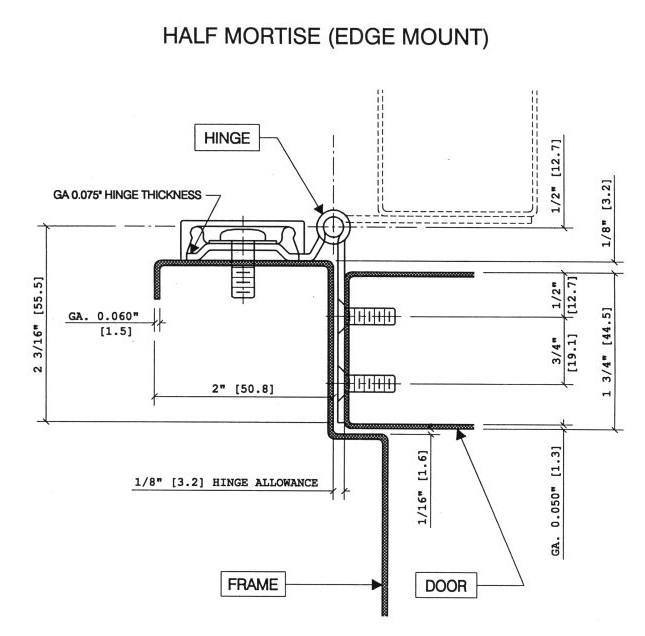

| Mount | half mortise for 1-3/4 inch doors |
| Material | Type 304, 14-gauge stainless steel |
| Finish on this listing | US32D (630) brushed |
| Other factory finish | US32 (629) polished is a factory adder, not this listing |
| Duty / rating | BHMA A156.26 Grade 1 - 150 lb door; product rated to 600 lb |
| Fire listing | Fire-rated 3 hours on hollow metal doors and 90 minute on wood doors. Maximum size 4 ft 0 in x 10 ft 0 in per leaf single or pairs. (no UL file number printed) |
| Factory fasteners | #1/4-20 x 3/4" TEK screws for metal frames; #10 x 1/2" TEK screws for metal doors; #10 x 1" wood screws for wood doors |
| Replacement fasteners | Factory ships 1/4-20 TEK as stated above; do not substitute the aluminum-geared 12-24 Hager pack |
| Standard lengths | 83, 85, 95 inch |
| Warranty | 25 year |
| Options not on this listing | ALHT, welded tips, cut to net, Dutch door, ETW8, EPT prep, US32 polish, Torx as a factory option, SSH-TB thru-bolts |
Ordering and Lead Time
Order by length. This listing is US32D brushed. Made to order. Lead time: 5-7 business days. For door sizing, use the NGP SS304 installation instructions.
| Length | 83 Inch or 95 Inch or 85 Inch |
| Brand | National Guard Products |
| General - US Finishes | US32D - Satin Stainless Steel/ 630 |
| Hinge Type | Half Mortise, Continuous Hinge |
| Continuous Hinge Grade | Heavy Duty |
| Base Material | Stainless Steel |
