NGP HD5300A Half Surface Geared Continuous Hinge | Clear Anodized

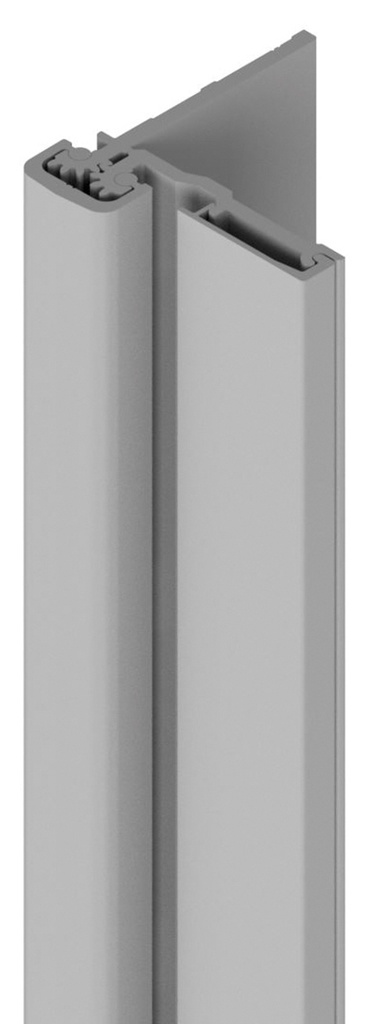

The National Guard Products HD5300A is a Half surface continuous geared hinge. This listing is clear anodized (factory HD5300A). Mount: half surface, 3/32 inch door inset, narrow frame leaf allows NGP 2525 bulb seal, for 1-3/4 inch to 2-1/4 inch doors. Standard lengths on this listing: 83, 85, and 95 inch.
Product Features
- Aluminum alloy 6063-T6; Anodized after machining
- Anodized aluminum finish
- Specially designed involute intermeshing gears
- Proprietary teflon infused self-lubricating wear resistant bearings
- No hinge reinforcement necessary except on extremely heavy, extremely high frequency or extra wide doors
- Lifetime of the door opening warranty
- Frame leaf: #12-24 TEK flat head MS
- Door leaf: #12-24 TEK pan head MS and 1/4"-20 thru-bolts
- Standard lengths on this listing: 83, 85, and 95 inch
- Note: For Door Sizing Refer to Installation Instruction
Standards
- ANSI/BHMA certified to A156.26 American National Standard for Continuous Hinges: Grade 1 - 600 lb. door.
- Fire-rated 90-minute on hollow metal (except steel stiffened) or wood door leafs up to 4'0" x 7'2"
Technical Details
| Manufacturer | National Guard Products |
| Model | NGP HD5300A |
| Factory subtitle | Half Surface Continuous Geared Hinge 3/32" Door Inset for 1-3/4" to 2-1/4" Doors |
| Type | Half surface continuous geared hinge |

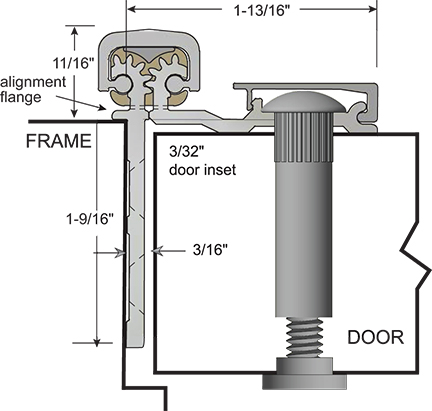

| Mount | half surface, 3/32 inch door inset, narrow frame leaf allows NGP 2525 bulb seal, for 1-3/4 inch to 2-1/4 inch doors |
| Material | 6063-T6 aluminum, anodized after machining |
| Finish on this listing | A - Clear Anodized |
| Other factory finishes | HD5300DKB dark bronze; HD5300B black anodized (not this listing) |
| Duty / rating | BHMA A156.26 Grade 1, 600 lb |
| Fire listing | 90-minute as stated by NGP on hollow metal (except steel stiffened) or wood door leafs up to 4 ft 0 in x 7 ft 2 in (no UL file number printed) |
| Fasteners | Frame leaf #12-24 TEK flat head MS; door leaf #12-24 TEK pan head MS and 1/4-20 thru-bolts |
| Standard lengths | 83, 85, 95 inch |
| Warranty | Lifetime of the door opening |
| Options not on this listing | ALHT, cut to net length, Dutch door prep, ETW8/ETW12, EPT prep, LL |
Ordering and Lead Time
Order by length. This listing is clear anodized (HD5300A). Made to order. Lead time: 5-7 business days.
| Length | 83 Inch or 95 Inch or 85 Inch |
| Brand | National Guard Products |
| General - US Finishes | US28 - 628/ Anodized Aluminum |
| Hinge Type | Half Surface, Continuous Hinge |
| Continuous Hinge Grade | Heavy Duty |
