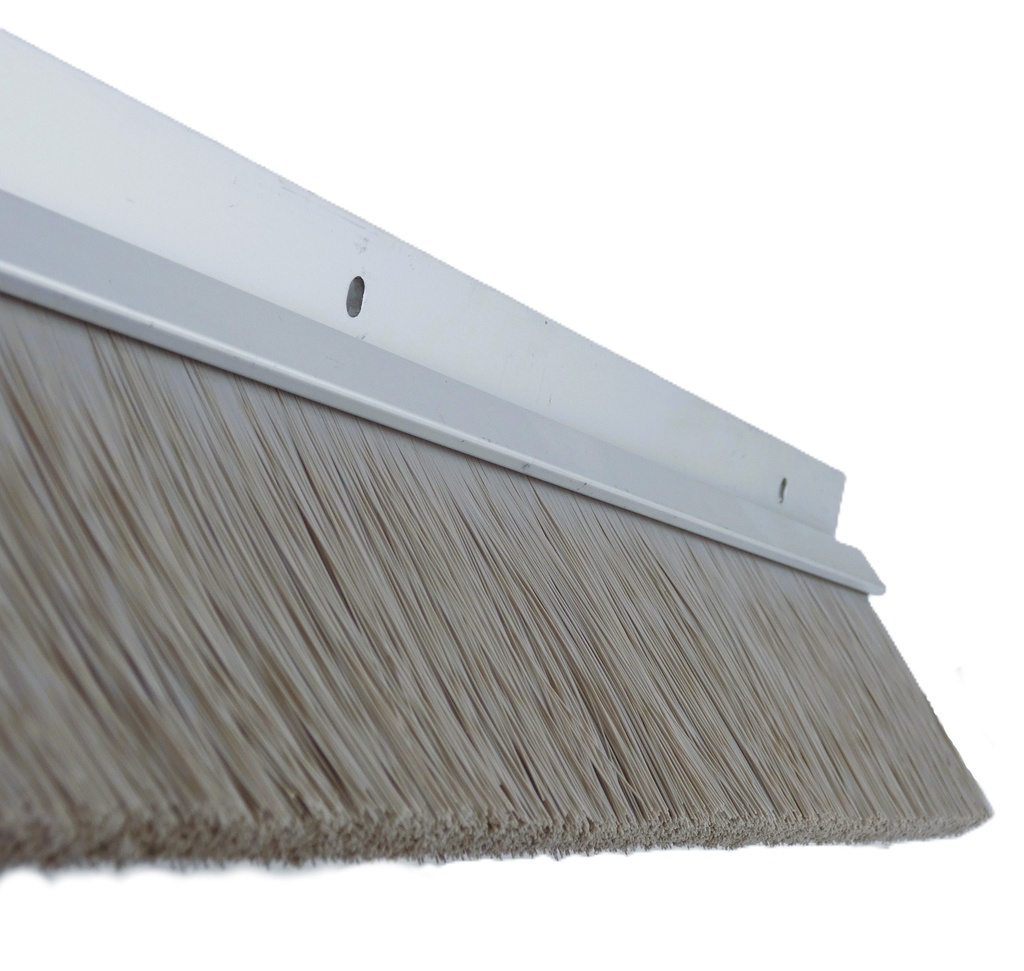

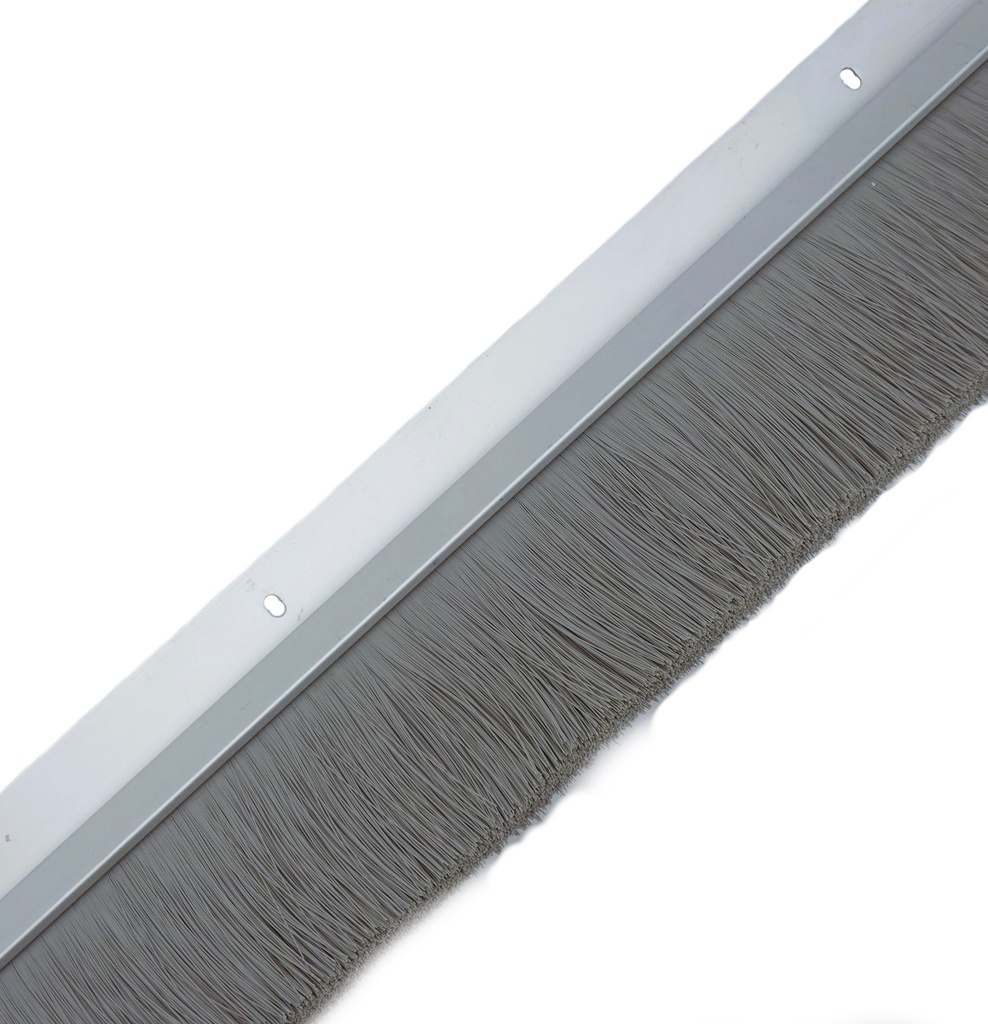

National Guard Products H623A Angled Sill Sweep
Approvals:
UL10C Classified on metal doors up to 3 hr.
UL10C Classified on wood doors up to 60 min
UL10B Classified on wood doors up to 60 min
UL10B Classified on metal doors up to 3 hr.
ANSI/BHMA Certified to ANSI/BHMA A156.22-2012
Note: This item also has the following Category J approval as a perimeter seal:
Category J brush seals are intended for application to/with Listed steel fire door frames and/or Classified Steel Covered Composite, Hollow Metal Sliding, Rolling Steel and Passenger Elevator Type Fire Doors rated up to and including 4 hours
| Length | 36 Inch or 48 Inch or 72 Inch or 84 Inch or 96 Inch |
| Brand | National Guard Products |
| Bottom Weatherseal Type | Angled Sweep |

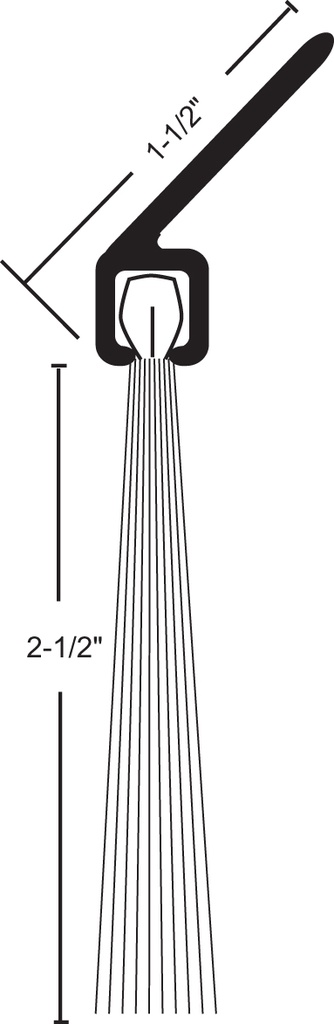

| Material Length | 2-1/2" |
| Insert Material | Nylon Brush |
| Housing Length | 1-1/2" |
| Housing Finish | Aluminum |
| Fire Rated | Fire Rated |
