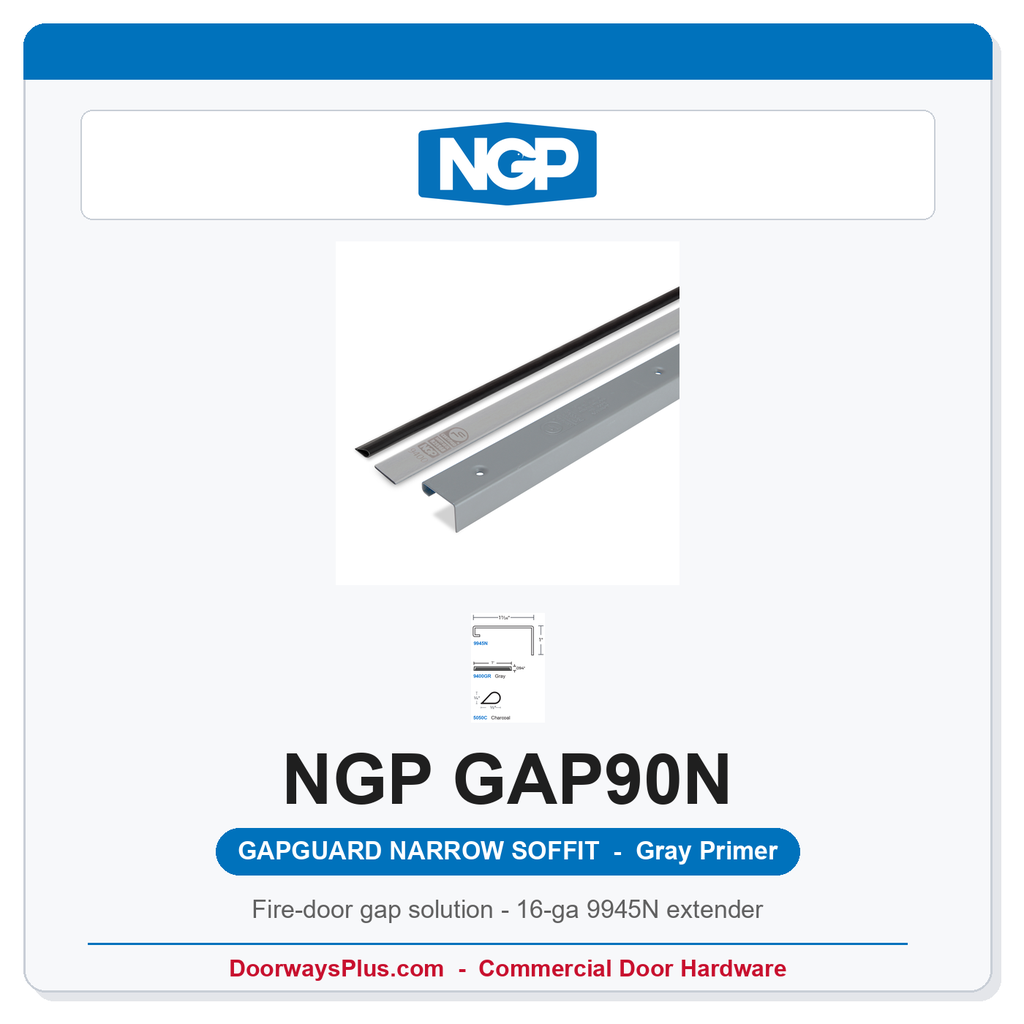

NGP GAP90N GapGuard Fire Door Head and Jamb Gap Solution | Narrow Soffit Gray Primer
The National Guard Products GAP90N is the GapGuard narrow-soffit fire-door head and jamb gap solution. NGP lists it as Fire Door Head / Jamb Gap Solutions for Narrow Soffit- Up To 180 Minutes. Catalog GAP6 kit is the 16-gauge steel stop extender 9945N (embossed UL mark), NGP-Edge intumescent and silicone bulb fire and smoke seal as 9945N + 9400GR + 5050C. Use it when the frame soffit measures 1/2 inch to 1-3/8 inch. It closes excessive clearance between door and frame over 1/8 inch, up to 9/16 inch, on hollow metal fire doors rated up to 180 minutes and wood fire doors rated up to 90 minutes.
Same job as standard GAP90, built on the narrower 9945N stop extender. Sold as individual sticks (36 Inch, 48 Inch, 84 Inch). Standard-soffit GAP90 / GAP90DKB are separate listings. 5050C is listed separately as an accessory, not as a duplicate kit.
Product Features
- UL Certified for Head/Jamb Gaps - Measuring Over 1/8", and up to 9/16"
- UL Certified Solution for Hollow Metal Fire Doors Rated up to 180 Minutes, and Wood Fire Doors Rated up to 90 Minutes with Excessive Clearance Between Door and Frame Over 1/8", up to 9/16" and a Soffit Measuring 1/2" to 1-3/8"
- Restricts the Passage of Smoke
- Non-Handed
- Standard sticks on this listing: 36, 48, and 84 inch
- Multiple Strike Shims (9275 or 9225) may also be Required for Proper Latchbolt Engagement
- Doors with Parallel Arm Closers - Use 9990 Fire Door Top Gap Solution for Excessive Gaps up to 1/2"
- Patented: US Patent 9,273,510 B2
- Gray
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C. Complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors. Ratings are as noted on individual products.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B. Complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors. Ratings are as noted on individual products.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP GAP90N |
| Type | GapGuard fire-door head and jamb set, narrow soffit |
| Manufacturer | National Guard Products |
| Factory subtitle | Fire Door Head / Jamb Gap Solutions for Narrow Soffit- Up To 180 Minutes |
| Kit includes | 9945N + 9400GR + 5050C |
| Stop extender | 9945N, 16-gauge, embossed UL mark |
| Finish on this listing | Gray Primer (GAP90N) |
| Other factory finish | GAP90NDKB charcoal (not this listing) |
| Soffit | 1/2 inch to 1-3/8 inch |
| Gap range | Over 1/8 inch, up to 9/16 inch (head and jamb) |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed) |
| Fasteners | #10 x 1" TEK SMS |
| Mounting | Surface, screw applied to the frame stop |
| NGP kit lengths on this listing | 36 Inch, 48 Inch, 84 Inch |
| Patent | US 9,273,510 B2 (printed by NGP) |
| Related | Parallel-arm closers: use 9990 for top gap up to 1/2 inch. Strike shims 9275 or 9225 may be required for latchbolt engagement. |
Ordering and Lead Time
Order by stick length (36, 48, or 84 inch). This listing is GAP90N, gray primer, narrow soffit. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch or 84 Inch |
| Brand | National Guard Products |
| Housing Finish | Gray Primer |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 16-gauge steel stop extender (9945N) |
| Insert Color | Gray (9400GR) with charcoal 5050C bulb |
| Fasteners | #10 x 1" TEK SMS |
| Kit Includes | 9945N + 9400GR + 5050C |
| Soffit Range | 1/2" to 1-3/8" (narrow) |
| Fire Rated | Fire Rated |
| Insert Material | Silicone |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
