NGP GAP90 GapGuard Fire Door Head and Jamb Gap Solution | Gray Primer

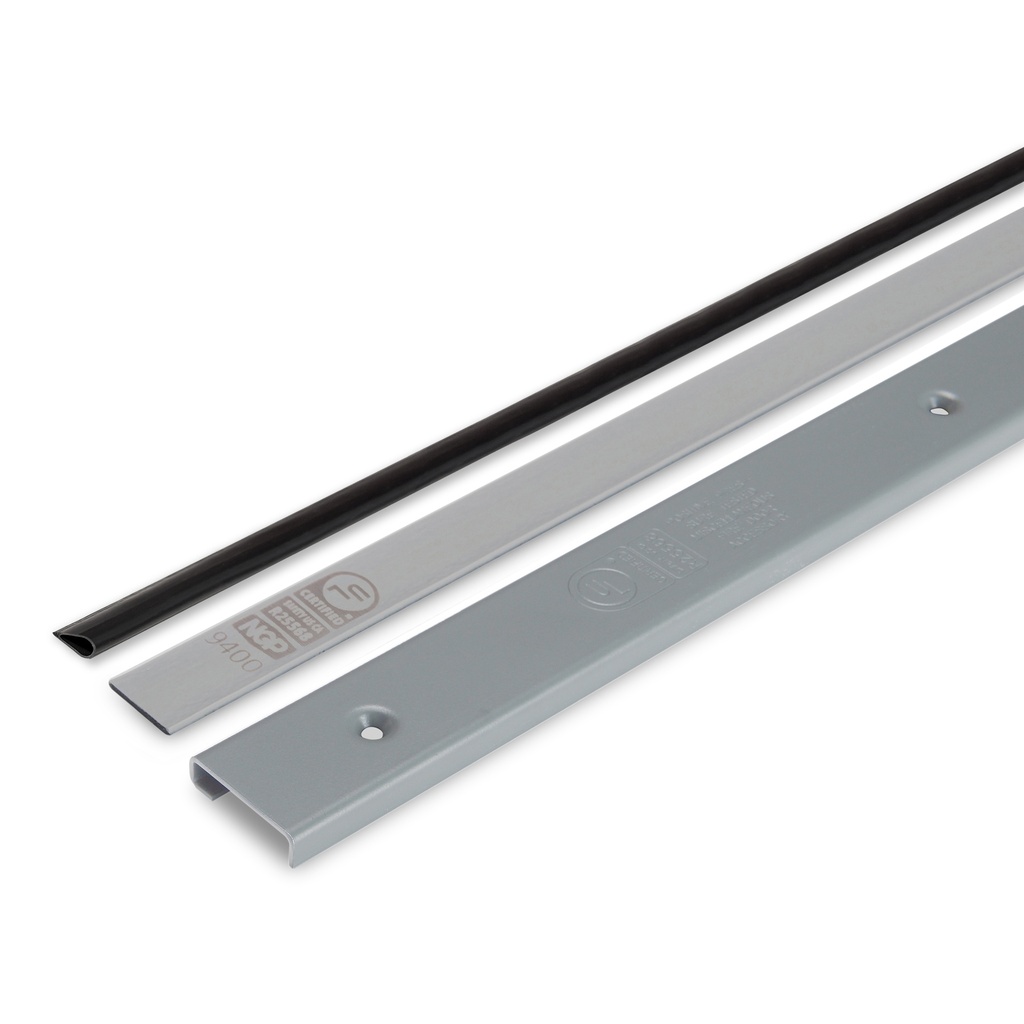

The National Guard Products GAP90 is a heavy-duty fire-door head and jamb gap solution in the GapGuard line. NGP lists it as Fire Door Head / Jamb Gap Solutions - Up To 180 Minutes. Catalog GAP5 kit is the 16-gauge steel stop extender 9945 (gray primer, UL mark), NGP-Edge intumescent 9400GR, and silicone bulb fire and smoke seal 5050C. It closes excessive clearance between door and frame over 1/8 inch, up to 9/16 inch, on hollow metal fire doors rated up to 180 minutes and wood fire doors rated up to 90 minutes.
Same job as screw-applied perimeter gasketing, built as a steel stop extender rather than a light aluminum housing. Sold as individual sticks (36 Inch, 48 Inch, 84 Inch) and as a head-and-jamb set (1 head + 2 jambs): 3'0 x 7'0 Set, 4'0 x 7'0 Set, 7'0 x 7'0 Set. Dark bronze GAP90DKB is a separate listing.
Product Features
- UL Certified for Head/Jamb Gaps - Measuring Over 1/8", and up to 9/16".
- UL Certified Solution for Hollow Metal Fire Doors Rated up to 180 Minutes and Wood Fire Doors Rated up to 90 Minutes with Excessive Clearance Between Door and Frame Over 1/8", up to 9/16"
- Restricts the Passage of Smoke
- Non-Handed
- Standard sticks on this listing: 36, 48, and 84 inch. Head-and-jamb sets: 3'0 x 7'0, 4'0 x 7'0, and 7'0 x 7'0
- Multiple Strike Shims (9275 or 9225) may also be Required for Proper Latchbolt Engagement
- Doors with Parallel Arm Closers - Use 9990 Fire Door Top Gap Solution for Excessive Gaps up to 1/2"
- Patented: US Patent 9,273,510 B2
- Gray
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C. Complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors. Ratings are as noted on individual products.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B. Complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors. Ratings are as noted on individual products.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP GAP90 |
| Type | GapGuard fire-door head and jamb set |
| Manufacturer | National Guard Products |
| Factory subtitle | Fire Door Head / Jamb Gap Solutions - Up To 180 Minutes |

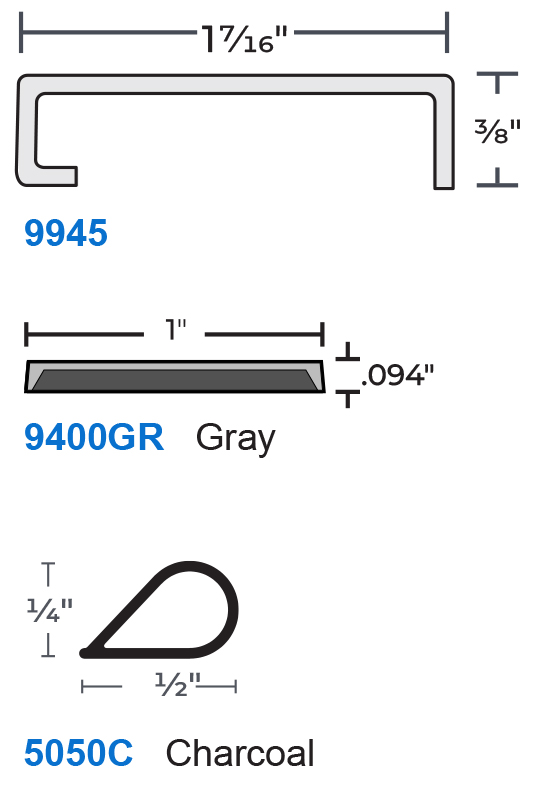

| Kit includes | 9945 steel stop extender, 9400GR intumescent, 5050C silicone bulb |
| Stop extender | 9945, 16-gauge, gray primer, embossed UL mark |
| Finish on this listing | Gray primer (GAP90) |
| Other factory finish | GAP90DKB charcoal (not this listing) |
| Gap range | Over 1/8 inch, up to 9/16 inch (head and jamb) |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed) |
| Fasteners | #10 x 1" TEK SMS |
| Mounting | Surface, screw applied to the frame stop |
| NGP kit lengths on this listing | 36 Inch, 48 Inch, 84 Inch |
| Set sizes on this listing | 3'0 x 7'0 Set, 4'0 x 7'0 Set, 7'0 x 7'0 Set |
| Patent | US 9,273,510 B2 (printed by NGP) |
| Related | Parallel-arm closers: use 9990 for top gap up to 1/2 inch. Strike shims 9275 or 9225 may be required for latchbolt engagement. |
Ordering and Lead Time
Order by stick length (36, 48, or 84 inch) or by opening set. This listing is GAP90 gray primer. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 3'0 x 7'0 Set or 4'0 x 7'0 Set or 7'0 x 7'0 Set or 36 Inch or 48 Inch or 84 Inch |
| Brand | National Guard Products |
| Housing Finish | Gray Primer |
| Weatherstripping Type | Perimeter Gasketing |
| Housing Size | 16-gauge steel stop extender (9945) |
| Insert Color | Gray (9400GR) with charcoal 5050C bulb |
| Fasteners | #10 x 1" TEK SMS |
| Kit Includes | 9945 + 9400GR + 5050C |
| Fire Rated | Fire Rated |
| Insert Material | Silicone |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
