NGP G610A Extended Nylon Brush Sill Sweep | Aluminum

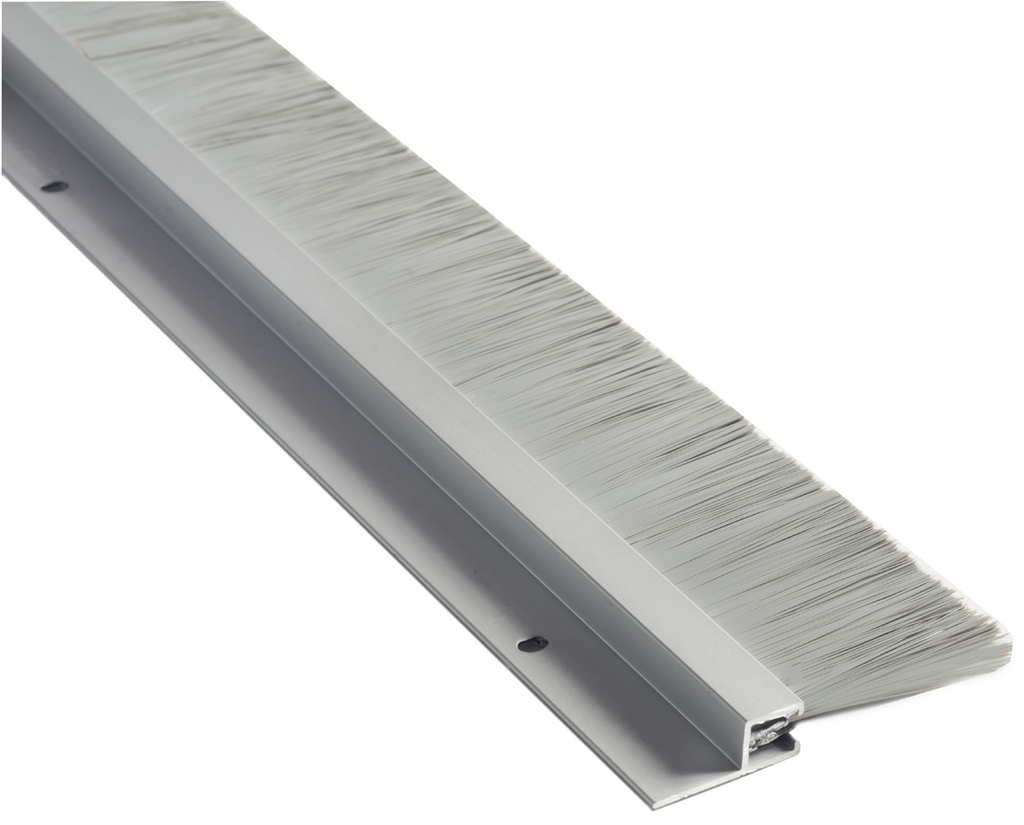

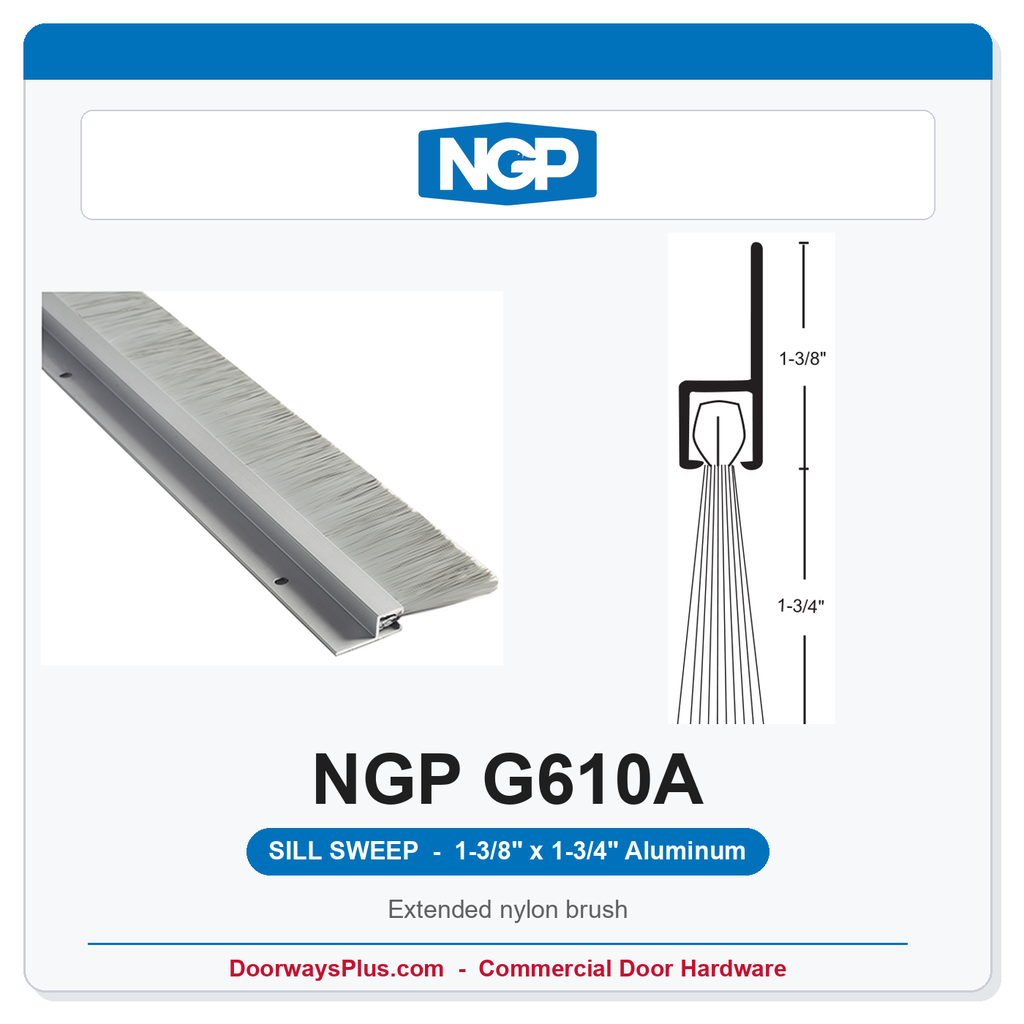

The National Guard Products G610A is a commercial-grade extended nylon brush sill sweep. An extruded 6063-T5 aluminum retainer mounts to the face of the door bottom (surface-applied, no mortise). Insert: nylon brush (gray with aluminum, black with DKB). Finish: Aluminum.
Nylon brush (polyamide) stays flexible from -70 to 425 deg F and resists moisture, but it is not effective against water penetration. Gray brush is standard on aluminum; dark bronze housings ship with black brush.
Technical Specifications
| Model | NGP G610A |
| Type | Extended Nylon Brush Sill Sweep |

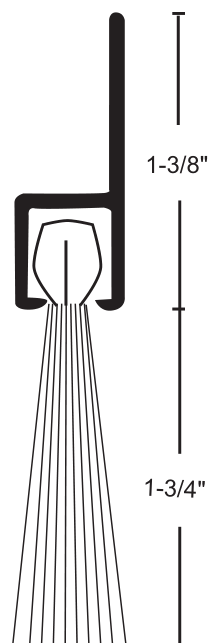

| Housing (flange) | 1-3/8" |
| Insert projection | 1-3/4" |
| Material | Extruded Aluminum Alloy 6063, T5 Temper |
| Finish | Aluminum |
| Insert | Nylon Brush |
| Fasteners | #6 x 3/4" SS SMS, slotted holes |
| Available Lengths | 36" and 48" |
| Fire / smoke | Non-Rated (no fire claim on this listing) |
Ordering & Lead Time
Made to order (not stocked). Lead time: 7-10 business days.
| Length | 36 Inch or 48 Inch |
| Brand | National Guard Products |
| Material Length | 1-3/4" |
| Bottom Weatherseal Type | Sill Sweep |
| Housing Length | 1-3/8" |
| Housing Finish | Aluminum |
| Fire Rated | Non-Rated |
| Insert Material | Nylon Brush |
