NGP FR180 GapGuard 180-Min Frame Repair Kit | Primer Gray Powder Coat
The National Guard Products FR180 is the GapGuard frame repair cover plate for larger steel-door or frame cutouts -- up to 180 minutes. NGP lists it as Frame Repair Kit. Catalog GAP16. 16-gauge steel, primer gray powder coat, UL mark embossed. Maximum single cutout 5.5 square inches; up to 12.0 square inches on the 24 to 48 inch cover. 6 inch kits and 48 inch kits ship 5 per box; the 48 inch plate can be cut down in the field.
Product Features
- Application Certified for Steel Fire Doors and Frames Rated up to 180 Minutes
- Maximum Area of Cutout in Door or Frame Concealed Plate is: 5.5 Sq. In. up to 12" Cover Plate, 12.0 Sq. In. Between 24" and 48" Cover Plate. No Single Cutout Larger Than 5.5 Sq. In.
- Allowed to be Used on Steel Frames up to 14 Ga. Thickness
- Allowed to be Used on Steel Doors up to 16 Ga. Thickness
- Cover Plate Maximum Size 48"
- Allowed to be Used With Listed Surface Mounted Hardware and Listed Door Position Switches (up to 1-1/8" Diameter)
- Adhesive Tape May be Used in Addition to Mechanical Fasteners

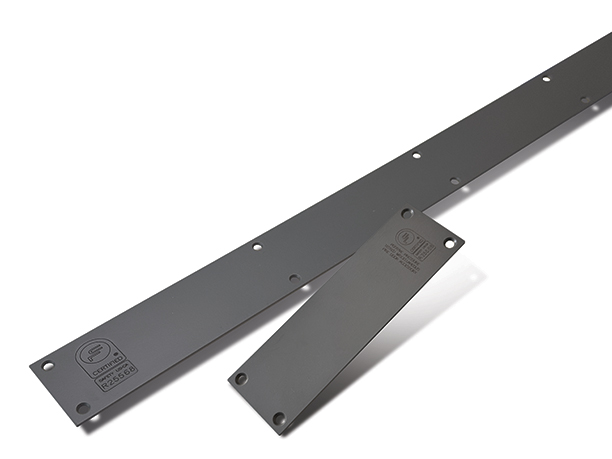

- Product consists of: Metal Plate, 16 Ga. Steel, Embossed with UL Mark
- Hardware Pack: 6-32 x .500 FU-P-BO-ST. Drill Bit #36 x 2-1/2"
- 6" Kits, 5 per Box
- 48" Kits, (Can be Cut Down in Field) 5 per Box
- Finish: Primer Gray, Powder Coat
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal Fire Doors and Frames rated up to 3 Hours.
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal Fire Doors and Frames rated up to 3 Hours.
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP FR180 |
| Type | steel fire-door frame repair cover plate |
| Manufacturer | National Guard Products |
| Factory subtitle | Frame Repair Kit |
| Plate | 16 ga steel, primer gray powder coat, UL mark embossed |
| Pack | 5 kits per box; 6 inch or 48 inch cover |
| Max cutout | 5.5 sq in single; 12.0 sq in on 24-48 inch cover |
| Fire listing | UL10B and UL10C on steel fire doors and frames up to 180 minutes as printed (no file number printed) |
Ordering and Lead Time
Order 6 inch or 48 inch. Each is a box of 5. 48 inch cuts down in the field. Lead time: 10-15 business days.
| Gasketing Set Size | 48 Inch or 6 Inch |
| Brand | National Guard Products |
| Housing Finish | Primer Gray Powder Coat |
| Housing Size | 16 ga steel cover plate |
| Kit Includes | 5 kits per box + hardware pack + drill bit |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
