NGP 9545VDKB GapGuard 45-Min Door Bottom | Dark Bronze/Black

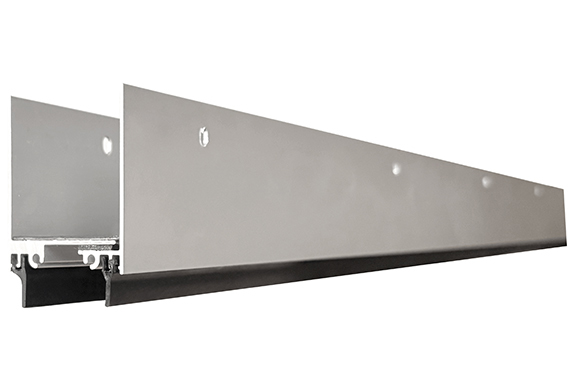

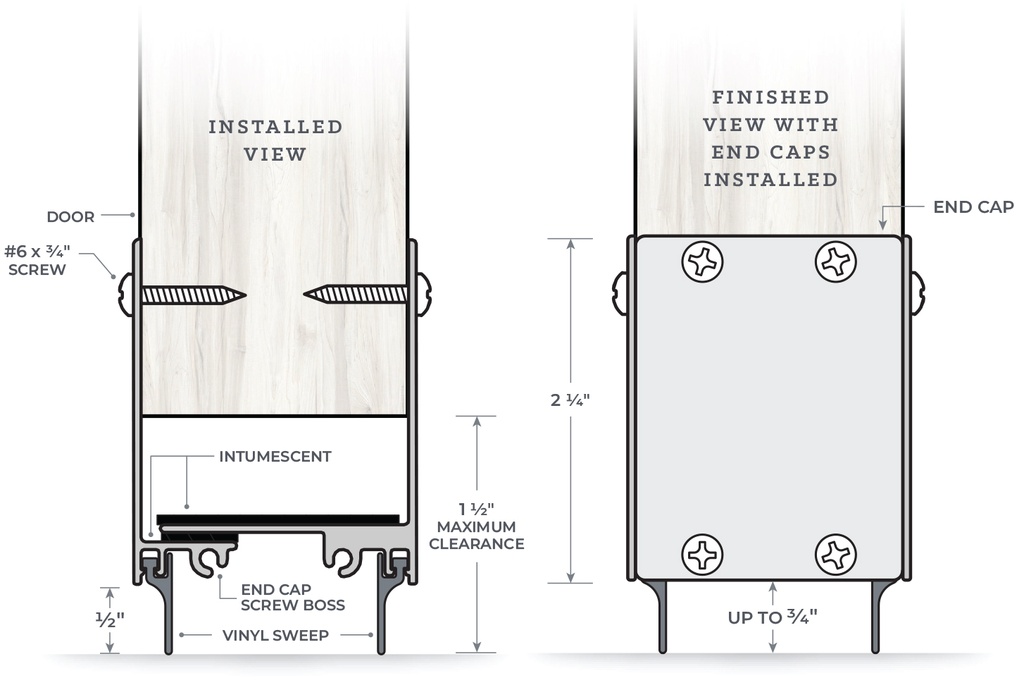

The National Guard Products 9545VDKB is the GapGuard excessive-clearance door bottom with vinyl. NGP lists it as Excessive Clearance Door Bottom, Up to 1-1/2"- 45 Minutes. Catalog GAP12 kit is 6063-T5 aluminum with end caps, slotted screw holes, and #6 x 3/4 inch stainless SMS. Insert on this listing: black vinyl. Housing finish: Dark Bronze/Black. It closes excessive door-bottom clearance up to 1-1/2 inch on hollow metal and wood fire doors rated up to 45 minutes. Factory copy states it restricts the passage of smoke; no UL1784 listing is printed. Sticks can be cut down in the field.
Sold as individual sticks (36 Inch, 48 Inch). Stainless 9590 and floating 9595DKB bottoms are separate listings.
Product Features
- Gap Solution for Excessive Fire Door Bottom Clearance up to 45 Minutes NGP-Edge? Intumescent Door Shoe
- Aluminum Alloy 6063, T5 Temper
- Aluminum End Caps for 9545 and 9220
- Vinyl (V) is Thermo-Plastic Vulcanizate (TPV)
- Moisture-Resistant
- Restricts the Passage of Smoke
- Flame-Resistant
- Temperature Range -40F to 250F
- Up to 45-Minute Rated - for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
- Certified for Use in US and Canada
- Available in 36", 48" Lengths (Can be Cut Down in Field)
- Non-Handed
- Screw Holes Slotted for Adjustment
- #6 x 3/4" Stainless Steel SMS Furnished
- Vinyl is Black
- Finish is Dark Bronze/Black
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/clearances measuring up to 1-1/2".
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/ clearances measuring up to 1-1/2".
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP 9545VDKB |
| Type | excessive-clearance door bottom with vinyl |
| Manufacturer | National Guard Products |
| Factory subtitle | Excessive Clearance Door Bottom, Up to 1-1/2"- 45 Minutes |
| Housing | Aluminum alloy 6063-T5 |
| Finish on this listing | Dark Bronze/Black |
| Insert | black vinyl |
| Gap range | Door bottom up to 1-1/2 inch |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed); up to 45 minutes |
| Fasteners | #6 x 3/4" stainless SMS |
| NGP kit lengths on this listing | 36 Inch, 48 Inch |
| Related | 180-minute stainless bottom: 9590. Floating: 9595DKB. |
Ordering and Lead Time
Order by stick length (36 or 48 inch). This listing is 9545VDKB, Dark Bronze/Black. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch |
| Brand | National Guard Products |
| Housing Finish | Dark Bronze/Black |
| Housing Size | 6063-T5 aluminum bottom |
| Fasteners | #6 x 3/4" stainless SMS |
| Kit Includes | housing + end caps + black vinyl |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
