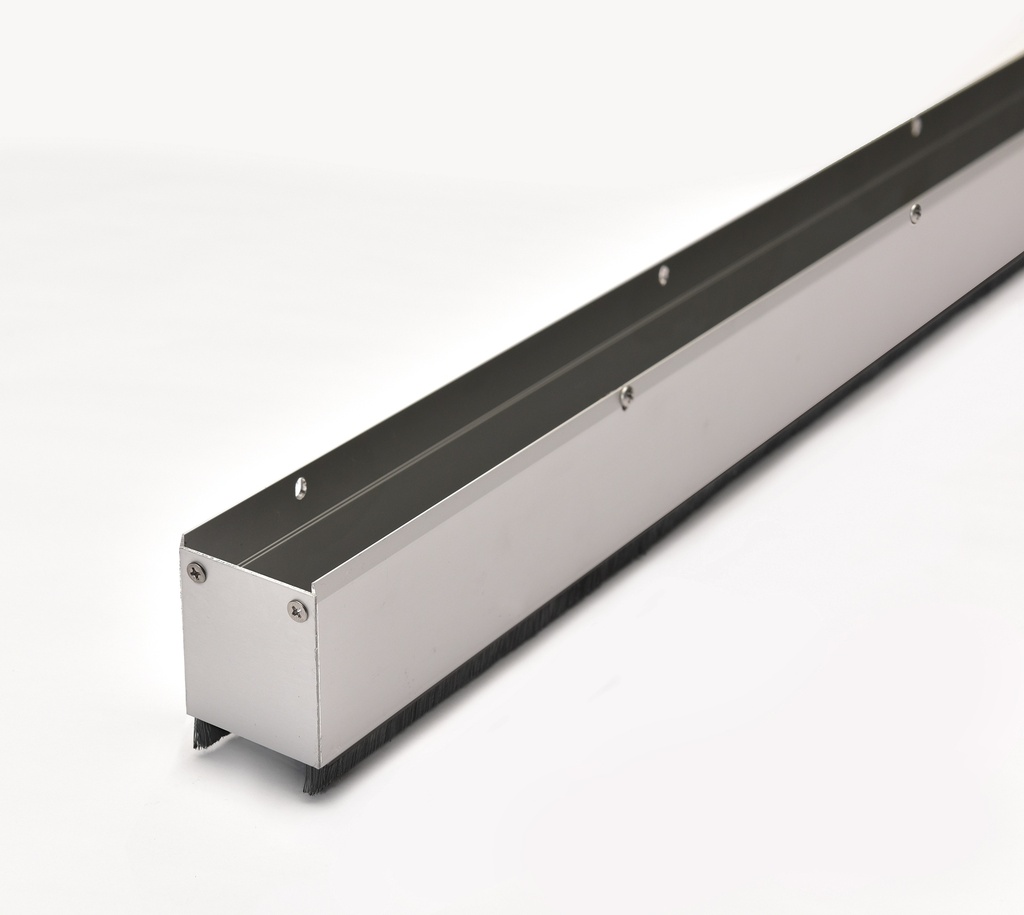

NGP 9245WHA GapGuard 45-Min Fire Door Shoe | Anodized Aluminum

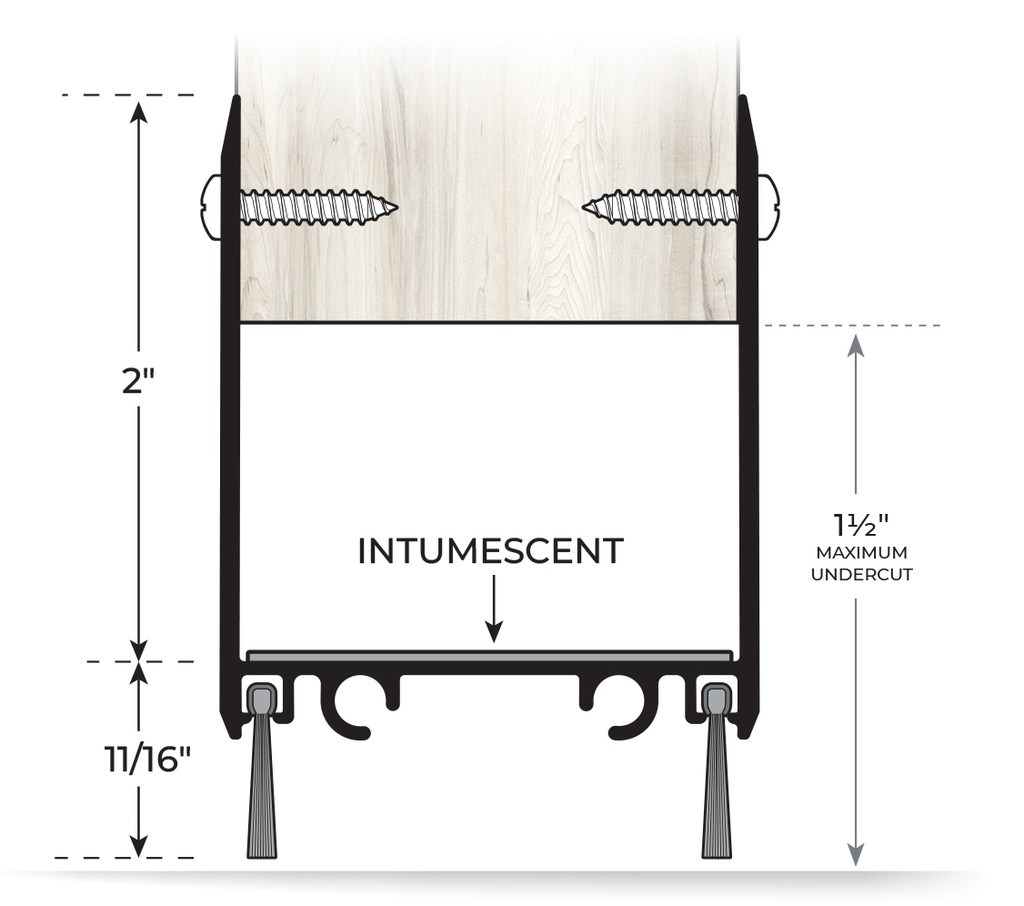

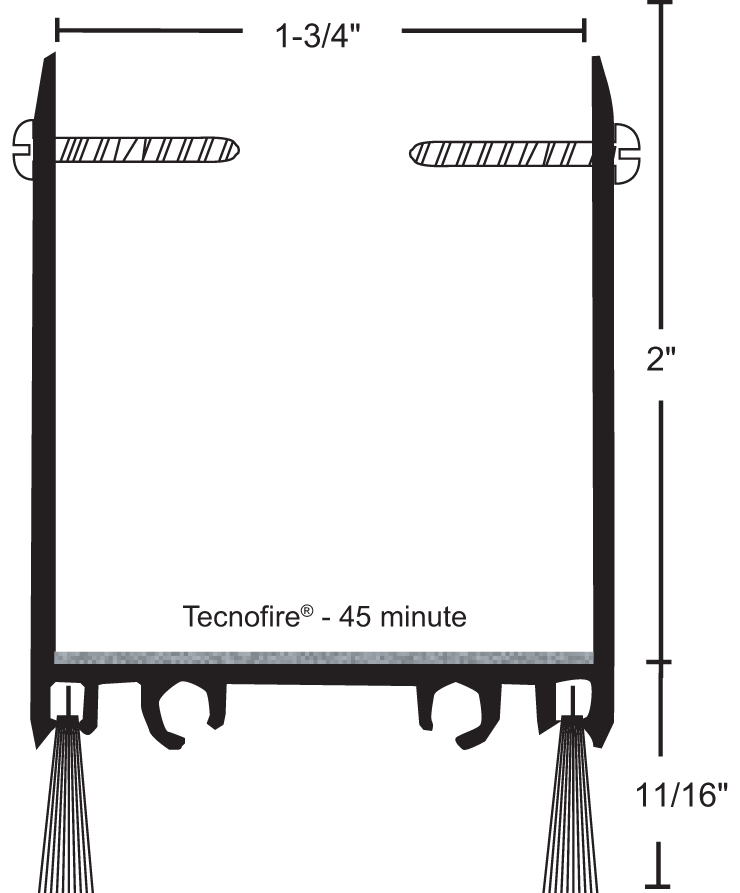

The National Guard Products 9245WHA is the GapGuard fire-door shoe with nylon brush. NGP lists it as Fire Door Shoe with Nylon Brush, Gap Solution Up to 1-1/2". Catalog GAP11 kit is 6063-T5 aluminum with end caps, slotted screw holes, and #6 x 3/4 inch stainless SMS. Insert on this listing: gray nylon brush. Housing finish: Anodized Aluminum. It closes excessive door-bottom clearance up to 1-1/2 inch on hollow metal and wood fire doors rated up to 45 minutes. Factory copy states it restricts the passage of smoke; no UL1784 listing is printed. Sticks can be cut down in the field.
Sold as individual sticks (36 Inch, 48 Inch). Stainless 9590 and floating 9595DKB bottoms are separate listings.
Product Features
- Gap Solution for Excessive Fire Door Bottom Undercut/Clearance up to 45 Minutes NGP-Edge? Intumescent Door Shoe. UL Certified for Door Bottom Gaps - Measuring up to 1-1/2"
- Aluminum Alloy 6063, T5 Temper
- Aluminum End Caps
- Synthetic Polymer: Polyamide
- Excellent Abrasion Resistance, Flexibility and Memory
- Moisture Resistant
- Restricts the Passage of Smoke
- Flame Resistant
- Temperature Range -70F to 425F
- Up to 45-Minute Rated - for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
- Certified for Use in US and Canada
- Available in 36", 48" Lengths (Can be Cut Down in Field)
- Non-Handed
- Screw Holes Slotted for Adjustment
- #6 x 3/4" Stainless Steel SMS Furnished
- Nylon Brush is Gray
- Finish is Anodized Aluminum
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/clearances measuring up to 1-1/2".
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/ clearances measuring up to 1-1/2".
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP 9245WHA |
| Type | fire-door shoe with nylon brush |
| Manufacturer | National Guard Products |
| Factory subtitle | Fire Door Shoe with Nylon Brush, Gap Solution Up to 1-1/2" |
| Housing | Aluminum alloy 6063-T5 |
| Finish on this listing | Anodized Aluminum |
| Insert | gray nylon brush |
| Gap range | Door bottom up to 1-1/2 inch |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed); up to 45 minutes |
| Fasteners | #6 x 3/4" stainless SMS |
| NGP kit lengths on this listing | 36 Inch, 48 Inch |
| Related | 180-minute stainless bottom: 9590. Floating: 9595DKB. |
Ordering and Lead Time
Order by stick length (36 or 48 inch). This listing is 9245WHA, Anodized Aluminum. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch |
| Brand | National Guard Products |
| Housing Finish | Anodized Aluminum |
| Housing Size | 6063-T5 aluminum shoe |
| Fasteners | #6 x 3/4" stainless SMS |
| Kit Includes | housing + end caps + gray nylon brush |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
