NGP 9245VDKB GapGuard 45-Min Fire Door Shoe | Dark Bronze/Black Anodized

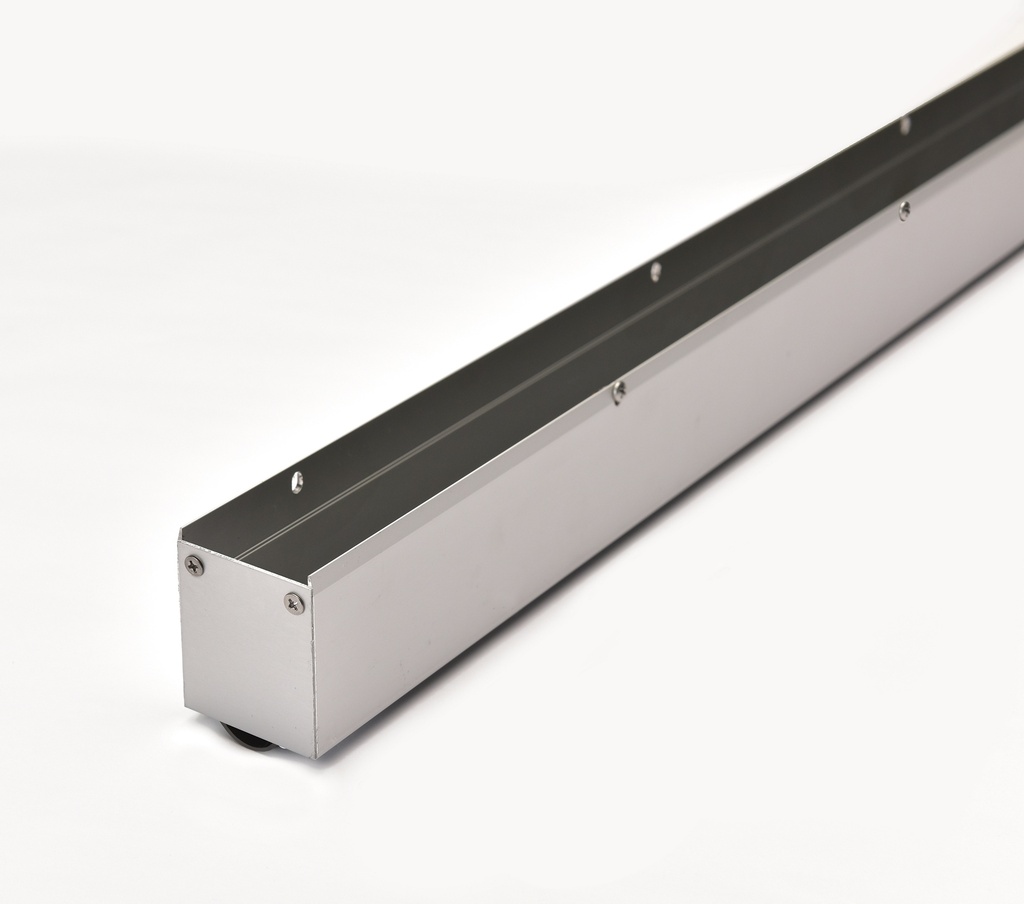

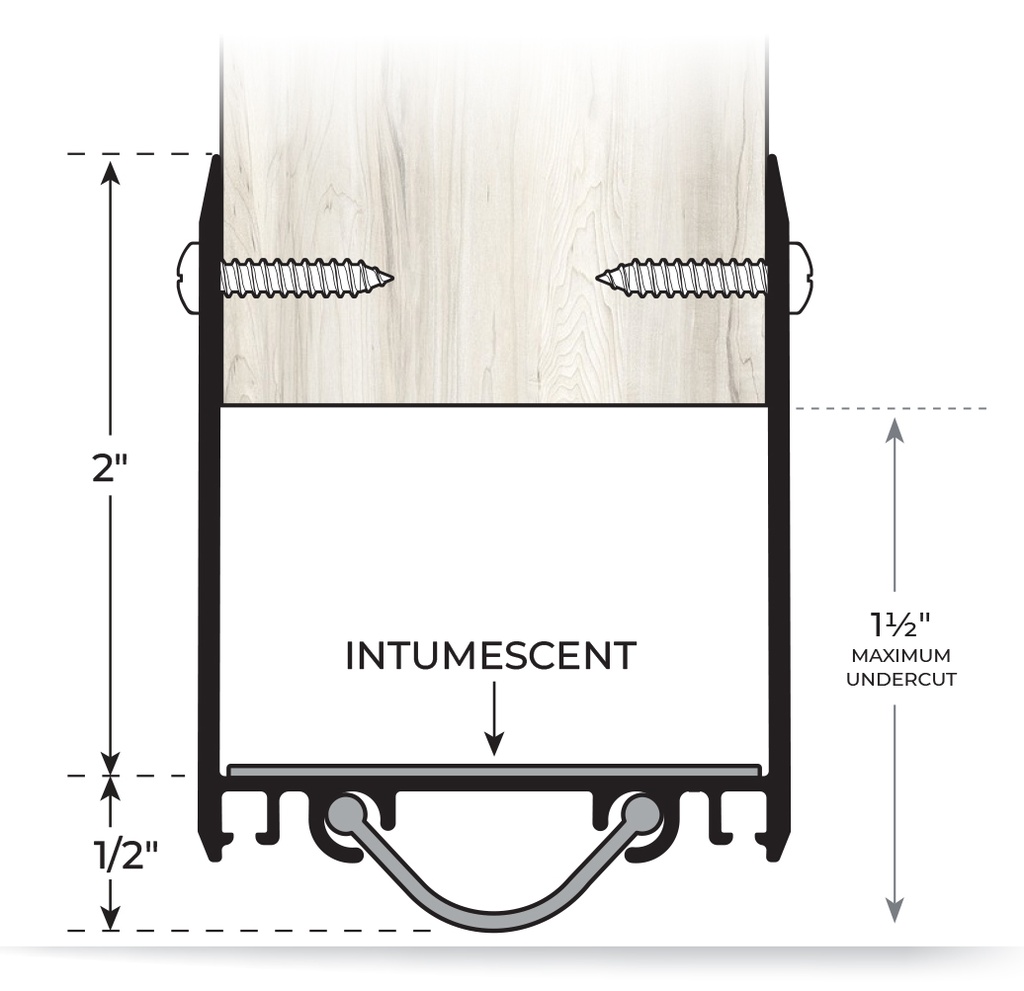

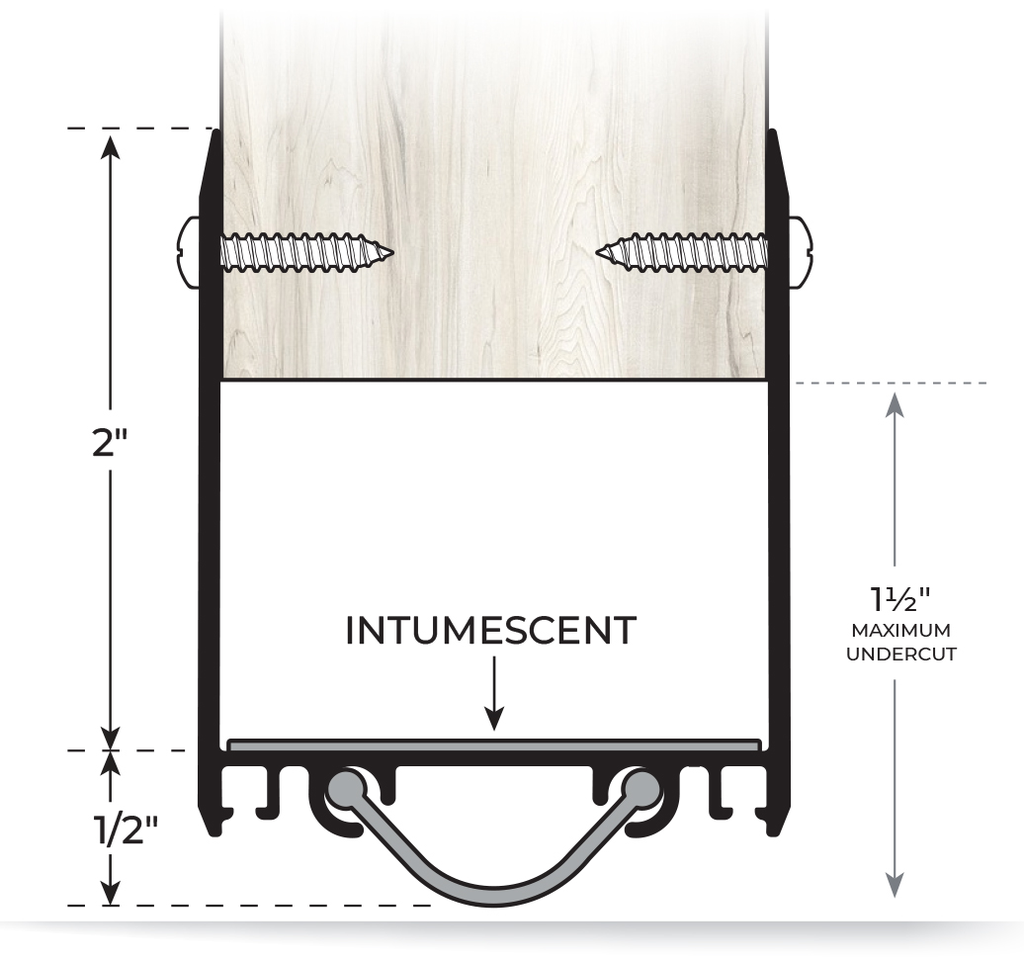

The National Guard Products 9245VDKB is the GapGuard fire-door shoe with vinyl seal. NGP lists it as Fire Door Shoe with Vinyl Seal, Gap Solution Up to 1-1/2". Catalog GAP11 kit is 6063-T5 aluminum with end caps, slotted screw holes, and #6 x 3/4 inch stainless SMS. Insert on this listing: black vinyl. Housing finish: Dark Bronze/Black Anodized. It closes excessive door-bottom clearance up to 1-1/2 inch on hollow metal and wood fire doors rated up to 45 minutes. Factory copy states it restricts the passage of smoke; no UL1784 listing is printed. Sticks can be cut down in the field.
Sold as individual sticks (36 Inch, 48 Inch). Stainless 9590 and floating 9595DKB bottoms are separate listings.
Product Features
- Gap Solution for Excessive Fire Door Bottom Undercut/Clearance up to 45 Minutes NGP-Edge? Intumescent Door Shoe. UL Certified for Door Bottom Gaps - Measuring up to 1-1/2"
- Aluminum Alloy 6063, T5 Temper
- Aluminum End Caps
- Thermoplastic Polymer: Polyvinyl Chloride (PVC) Formulated with an Environmentally Friendly Bio-Based Plasticizer
- Moisture Resistant
- Restricts the Passage of Smoke
- Flame Resistant
- Temperature Range 0F to 140F
- Oxidative Degradation From Age and Exposure to Cold, Heat and UV Causes Hardening, Loss of Memory and Resilience, Cracking, Crazing and Discoloration
- Up to 45-Minute Rated - for Use on UL10B and UL10C Wood or Hollow Metal Fire Doors
- Certified for Use in US and Canada
- Available in 36", 48" Lengths (Can be Cut Down in Field)
- Non-Handed
- Screw Holes Slotted for Adjustment
- #6 x 3/4" Stainless Steel SMS Furnished
- Vinyl is Black
- Finish is Dark Bronze/Black Anodized
Standards
- POSITIVE PRESSURE - CERTIFIED by UL to ANSI/UL10C, complies with IBC, NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/clearances measuring up to 1-1/2".
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door bottom undercut/ clearances measuring up to 1-1/2".
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP 9245VDKB |
| Type | fire-door shoe with vinyl seal |
| Manufacturer | National Guard Products |
| Factory subtitle | Fire Door Shoe with Vinyl Seal, Gap Solution Up to 1-1/2" |
| Housing | Aluminum alloy 6063-T5 |
| Finish on this listing | Dark Bronze/Black Anodized |
| Insert | black vinyl |
| Gap range | Door bottom up to 1-1/2 inch |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed); up to 45 minutes |
| Fasteners | #6 x 3/4" stainless SMS |
| NGP kit lengths on this listing | 36 Inch, 48 Inch |
| Related | 180-minute stainless bottom: 9590. Floating: 9595DKB. |
Ordering and Lead Time
Order by stick length (36 or 48 inch). This listing is 9245VDKB, Dark Bronze/Black Anodized. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch |
| Brand | National Guard Products |
| Housing Finish | Dark Bronze/Black Anodized |
| Housing Size | 6063-T5 aluminum shoe |
| Fasteners | #6 x 3/4" stainless SMS |
| Kit Includes | housing + end caps + black vinyl |
| Fire Rated | Fire Rated |
| Mounting Type | Screw Applied - Exp Screw, Surface Mounted |
