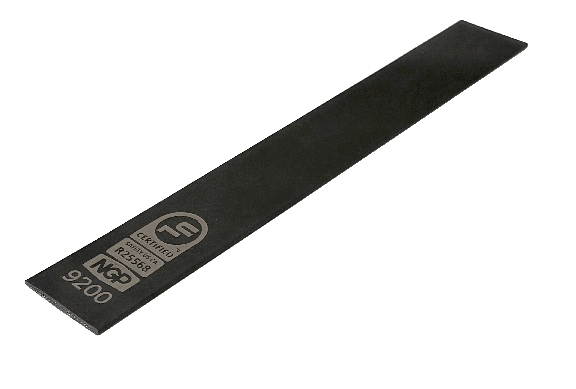

NGP 9200C GapGuard 60-Min Intumescent Fire Seal | Charcoal
When a fire-door inspection fails at the head or jambs and the gap is past NFPA 80 (about 1/8 inch), replacing the frame is not the only repair. The National Guard Products 9200C is a GapGuard self-adhesive intumescent for those smaller stop gaps. NGP lists it as GAPGUARD Intumescent Fire Seal. Catalog GAP17: up to 5/16 inch on 60-minute doors, and up to 3/8 inch on 20- and 45-minute doors. It may be installed on the door or on the frame. Finish on this listing: Charcoal. After it goes on, 9275 ASA or 9225 T-strike shims may be required so the latchbolt still engages.
NGP sells 9200 by the foot (3 foot minimum). This listing is cut 36 and 48 inch sticks. 96 inch is not offered here.
Product Features
- UL Certified Solution for 60-Minute Fire Doors with Excessive Clearance Between Door and Frame Over 1/8", up to 5/16"
- UL Certified Solution for 20- and 45-Minute Fire Doors with Excessive Clearance Between Door and Frame Over 1/8", up to 3/8"

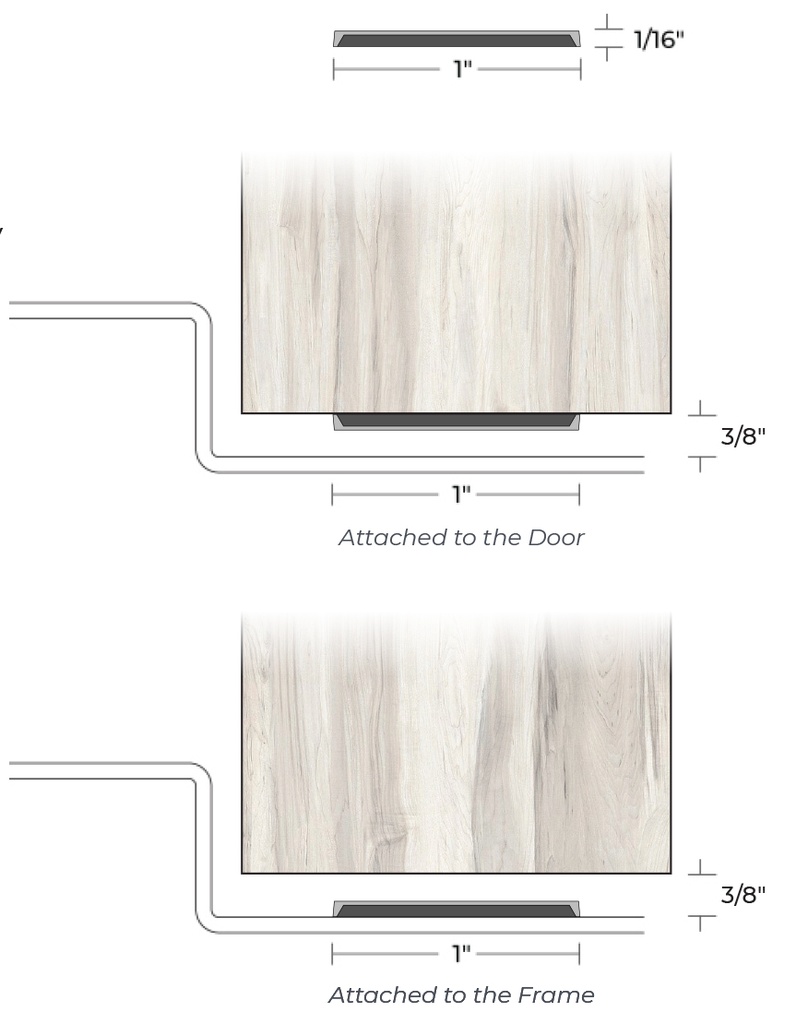

- May be Installed on the Door or on the Frame as Illustrated
- For Use on up to 60-Minute Rated UL10B and UL10C Wood or Hollow Metal Fire Doors
- Multiple Strike Shims 9275 or 9225 May Also be Required for Proper Latchbolt Engagement
- NGP Intumescent Materials are Formulated to Expand at 275?F up to 20 Times Their Original Thickness; Completely Sealing the Gap Around and Between Doors During a Fire
- Modified Acrylic Pressure-Sensitive Adhesive Protected by Release Liner
- Provides High Initial Adhesion and Long-Term Holding Power for Permanent Mounting in Exteri?or or Interior Locations
- Resistant to Aging, Weathering, UV Radiation, Water, Detergent, Alcohol, and the Influence of Chemicals
- End Use Temperature Range of Adhesive, Long-Term Exposure -30F up to 250F
- Shelf Life of Adhesive Prior to Installation is One Year When Stored at 75F and 50% Relative Humidity or Less
- Sold by the Foot: 3' Minimum to 410' Reel
- Charcoal
Standards
- CERTIFIED by UL to ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door and frame clearances, measuring up to 3/8".
- CERTIFIED by UL to CAN/ULC-S104 and ANSI/UL10B, complies with NFPA 80 and NFPA 252 for application to Hollow Metal and Wood fire doors rated up to 45 minute with excessive door and frame clearances, measuring up to 3/8".
- Factory and catalog state UL certification; no UL file number is printed.
Technical Details
| Model | NGP 9200C |
| Type | self-adhesive intumescent fire seal |
| Manufacturer | National Guard Products |
| Factory subtitle | GAPGUARD Intumescent Fire Seal |
| Finish on this listing | Charcoal |
| Mounting | Self-adhesive (modified acrylic, release liner) |
| Gap range | Over 1/8 inch; 5/16 inch at 60 min / 3/8 inch at 20-45 min |
| Fire listing | UL10B and UL10C miscellaneous fire door accessory as printed by NGP (no file number printed) |
| NGP kit lengths on this listing | 36 Inch, 48 Inch |
| Related | GAP90 stop extender for gaps over 5/16 to 9/16 inch. |
Ordering and Lead Time
Order by stick length (36 or 48 inch). This listing is 9200C, Charcoal. Made to order. Lead time: 10-15 business days.
| Gasketing Set Size | 36 Inch or 48 Inch |
| Brand | National Guard Products |
| Housing Finish | Charcoal |
| Housing Size | self-adhesive intumescent (no aluminum housing) |
| Kit Includes | intumescent seal, cut to stick length |
| Fire Rated | Fire Rated |
| Mounting Type | Adhesive Applied |
