NGP 884-6 Bumper Seal Threshold 6" Wide x 7/8" High | Dark Bronze

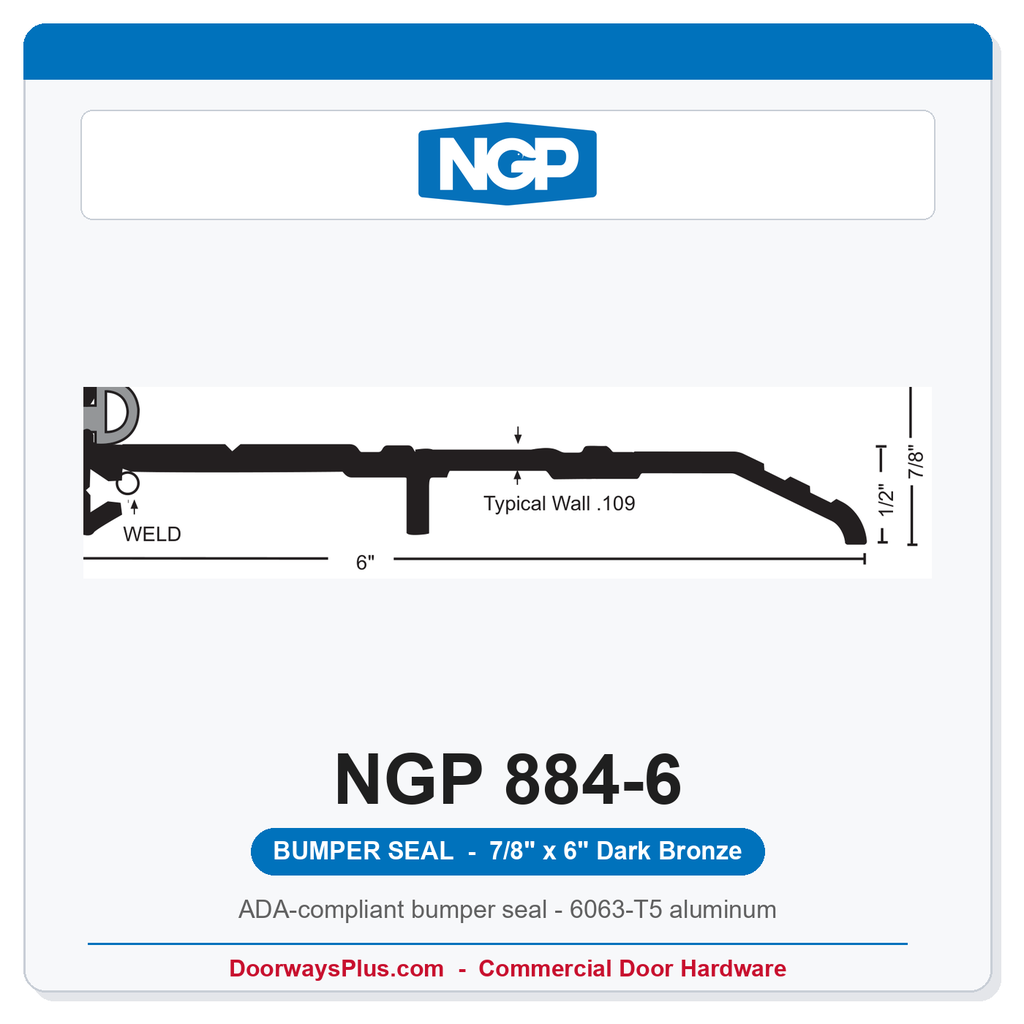

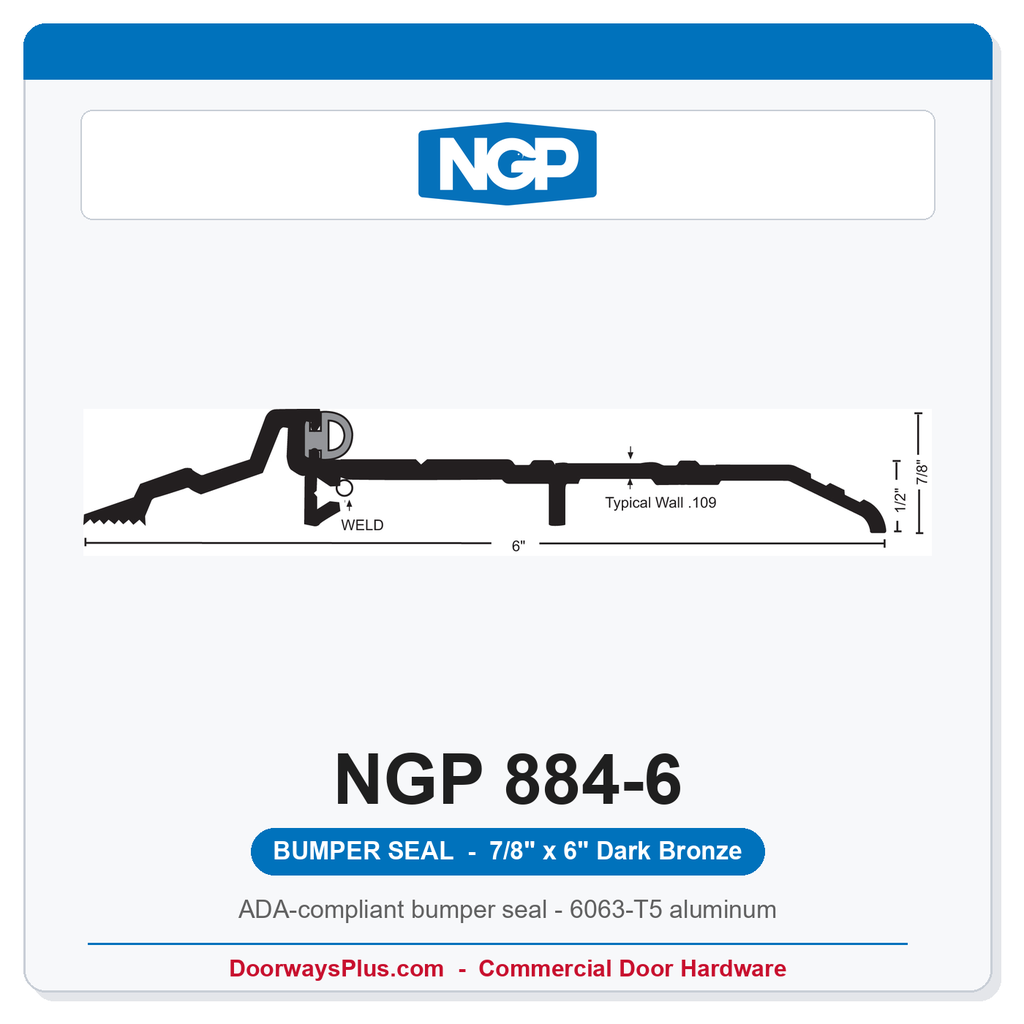

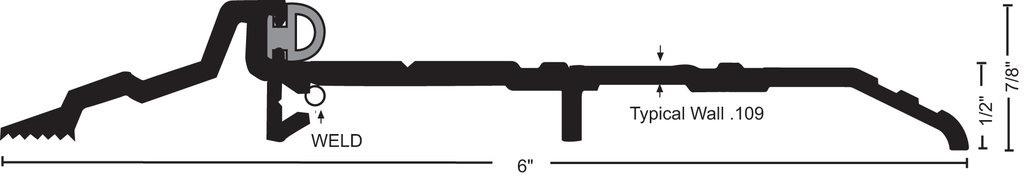

The National Guard Products 884-6 is a commercial-grade extended-width bumper seal threshold, 6" wide by 7/8" high, extruded from 6063-T5 aluminum with a bumper-seal insert at the stop. Specify insert: Neoprene, Silicone, or Vinyl.
ADA-Compliant, Barrier-Free Design
At just 7/8" high, the NGP 884-6 provides an ADA-compliant transition that meets the ADA Standard for Accessible Design and ICC/ANSI A117.1, while the bumper insert seals the gap at the door stop for air infiltration control.
Fire-Rated & Positive-Pressure Certified
The NGP 884-6 is UL certified to CAN/ULC-S104 and ANSI/UL10B, and positive-pressure certified to ANSI/UL10C, complying with NFPA 80 and NFPA 252 for hollow metal fire doors rated up to 3 hours and wood fire doors rated up to 90 minutes.
Technical Specifications
| Model | NGP 884-6 |
| Type | Bumper Seal Threshold |
| Width | 6" |
| Height | 7/8" |
| Material | Extruded Aluminum Alloy 6063, T5 Temper |
| Finish | Dark Bronze |
| Insert options | Neoprene, Silicone, Vinyl (N / S / V) |
| Wall Thickness | 0.100" |
| Weight | 1.1 lbs./ft. |
| Fasteners | #10 x 1-1/2" FH Zinc Plated Wood Screws (included) |
| Available Lengths | 36", 48", 72" |
| Certifications | ADA, ANSI/UL10B, UL10C (positive pressure) |
Ordering & Lead Time
Made to order (not stocked). Lead time: 5-7 business days.
| Length | 36 Inch or 48 Inch or 72 Inch |
| Insert Material | Vinyl or Neoprene or Silicone |
| Brand | National Guard Products |
| Threshold Grade | Commercial- Standard |
| Threshold Type | Bumper Seal |
| Threshold Width | 6" |
| Threshold Height | 7/8" |
